OPEN CNC (Machining Status Monitoring Package) Operators manual Page 175

Operators manual
B-63364EN/03 6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA
- 159 -

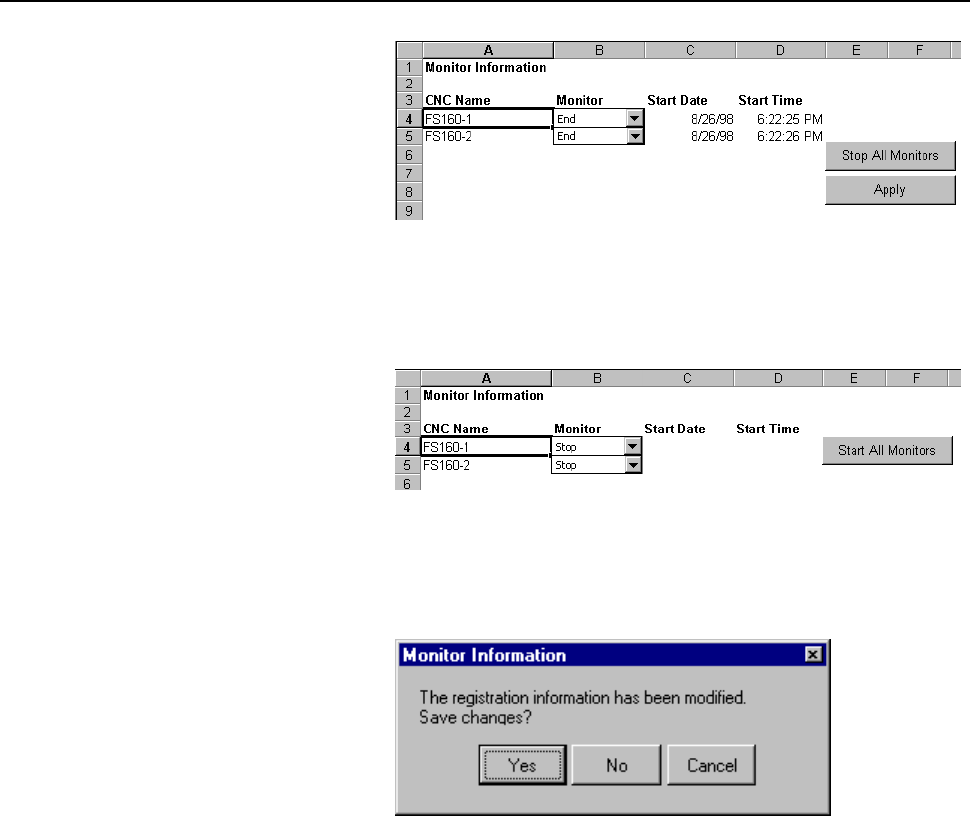

3. Click the <Apply> button.
The monitoring of CNC machines ends, and "Executing" or "Power-
Off," displayed in the monitor combo box, changes to "Stop."
If an item in the monitor combo box is changed, then another worksheet is
chosen without clicking the <Apply> button, the following message
appears:
Click the <Yes> button, to execute the change.
Click the <No> button, to abandon the change.
Click the <Cancel> button, to return to the [Monitor Information]
worksheet.
