OPEN CNC (Machining Status Monitoring Package) Operators manual Page 37

Operators manual
B-63364EN/03 2. BASIC KNOWLEDGE
- 21 -

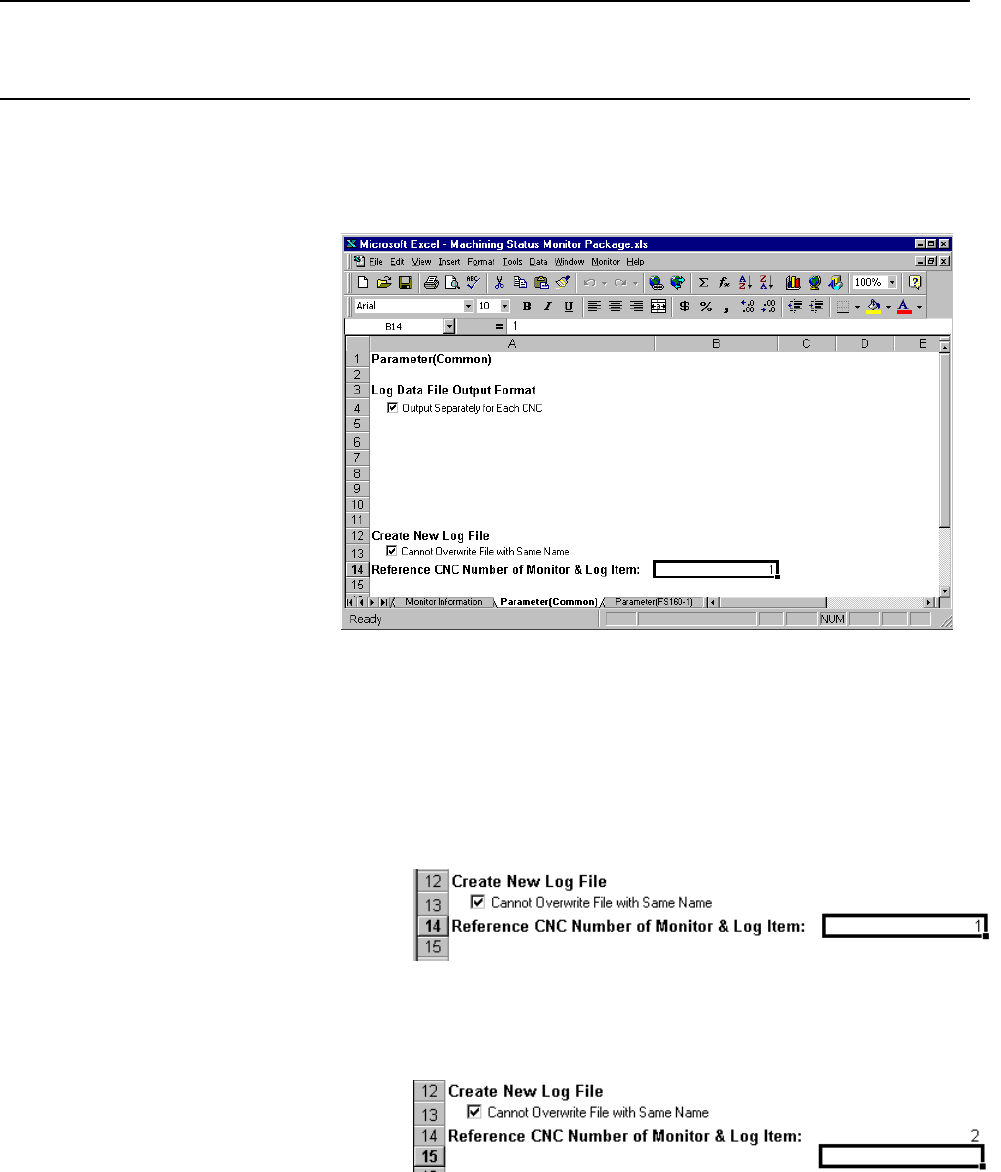

2.3.2 Inputting Data to a Cell
Input data to a cell. In the following example, data is input into "Reference
CNC Number of Monitor & Log Item:" on the [Parameter(Common)]
worksheet. The example assumes that the worksheet has already been selected.
Procedure
1. If the cell into which data is to be input has not been selected (not
indicated with a bold frame) yet, click the cell. In this example, click
cell B14. If the cell into which data is to be input is not actually on the
screen, display the cell by applying the procedure explained in Section
2.3.3, "Scrolling a Worksheet."
2. Enter data from the keyboard. In this example, we want to enter 2.
Pressing the [Enter] key submits the input data.
