B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 149 -
5.3.3 Deleting Rows from Machining Program Information
To delete a row from the machining program information, use the [Edit]
command.
Procedure

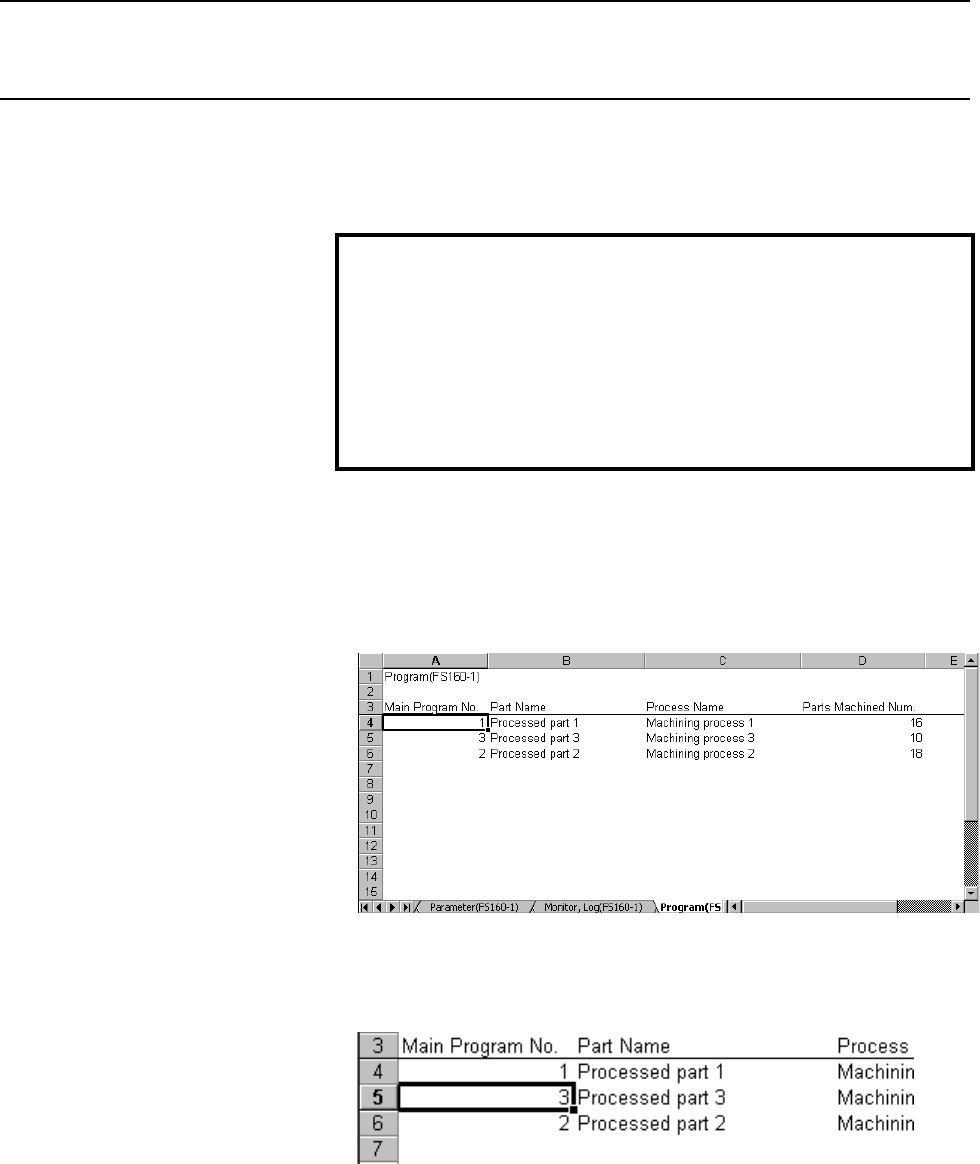

1. Select the [Program(FS160-1)] worksheet.
(This worksheet is for registering machining program information for
the CNC machine named "FS160-1.")
2. Select a cell in the row to be deleted. A cell in any column may be
selected.
3. Choose [Edit], then [Delete...].
The row containing the selected cell is deleted.
NOTE
If the machining program information to be deleted is in a row other than
the last, and the cells for all the members of the machining program
information are made blank without deleting the row, any machining
program information registered after the blank row is ignored.
To delete a row, use the [Edit] command.
