OPEN CNC (Machining Status Monitoring Package) Operators manual Page 60

Operators manual
3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES B-63364EN/03
- 44 -
3.2.3 Deleting Registered CNC Machines Not to Be Monitored
Procedure

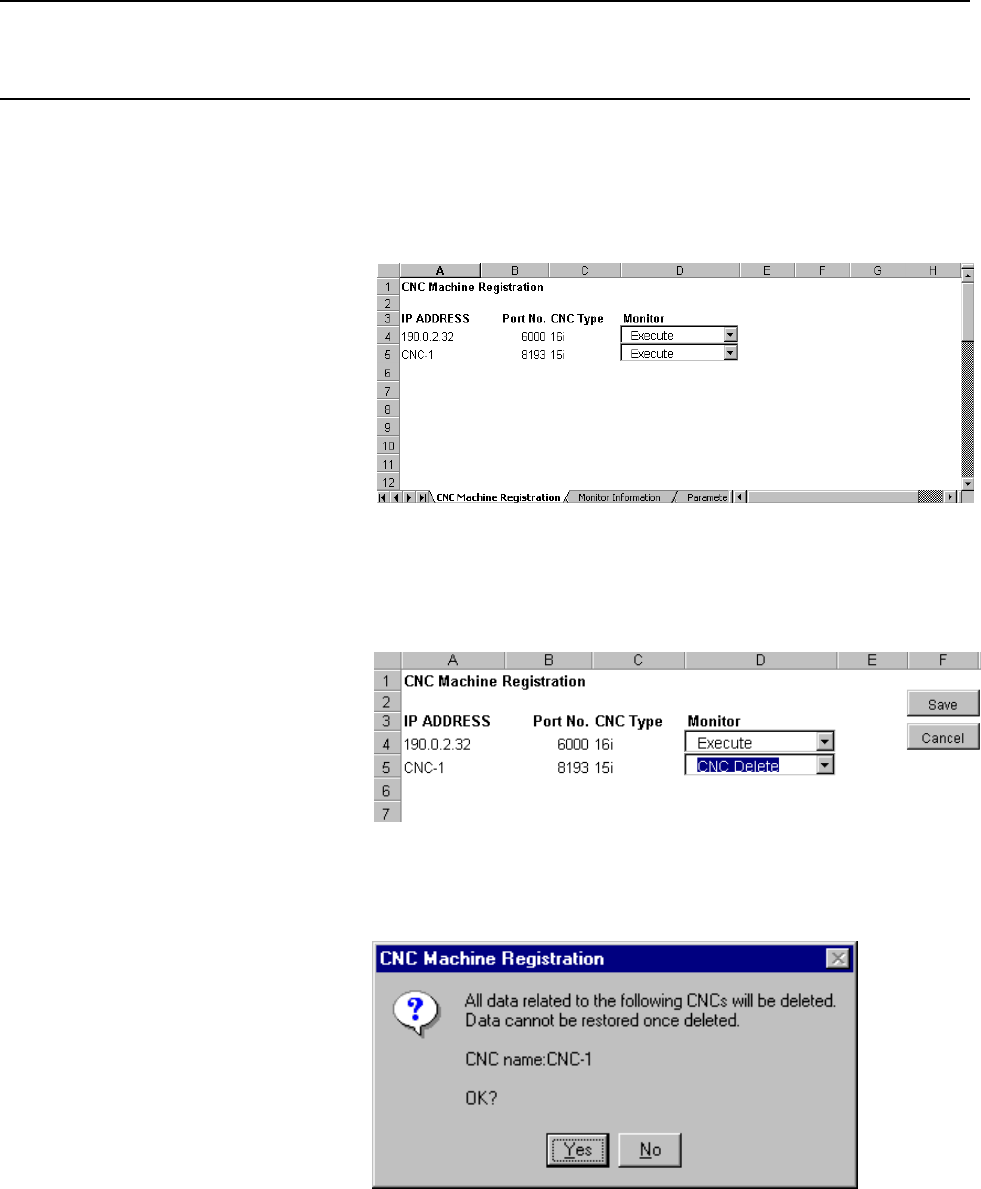

1. Select the [CNC Machine Registration] worksheet.
The [CNC Machine Registration] worksheet appears.
2. Change the setting of the monitor combo box to "Do Not Execute."
for the CNC machine to be deleted.
The <Save> and <Cancel> buttons appear.
3. Click the <Save> button.
The confirmation message below appears.
4. Click the <Yes> button.
Then, click the <OK> button for all the displayed messages.
The IP address, port number, CNC type and monitor combo box
setting of the CNC machine are deleted from the [CNC Machine
Registration] worksheet.
