OPEN CNC (Machining Status Monitoring Package) Operators manual Page 149

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 133 -
Output Monitor Item and Destination Cell
A list appears indicating the monitor items to be output as log data, as well
as the destination cells. Log data items are output in the order in which
they appear in the list. Output Monitor Item and Destination Cell provide
the following functions:
• Insertion of output monitor items and destination cell data
• Modification of output monitor items and destination cell data
• Deletion of output monitor items and destination cell data
1) Insertion of output monitor items and destination cell data
• Description
Allows the insertion and addition of output monitor items and
destination cell data
• Operation
From the list, select the log output item and destination cell data for
specifying the data insertion position. A new output monitor item
and destination cell data will be added before the selected output
monitor item and destination cell data.
If multiple list items are selected, they will be added before the list
item selected first.
Click the <Insert> button.

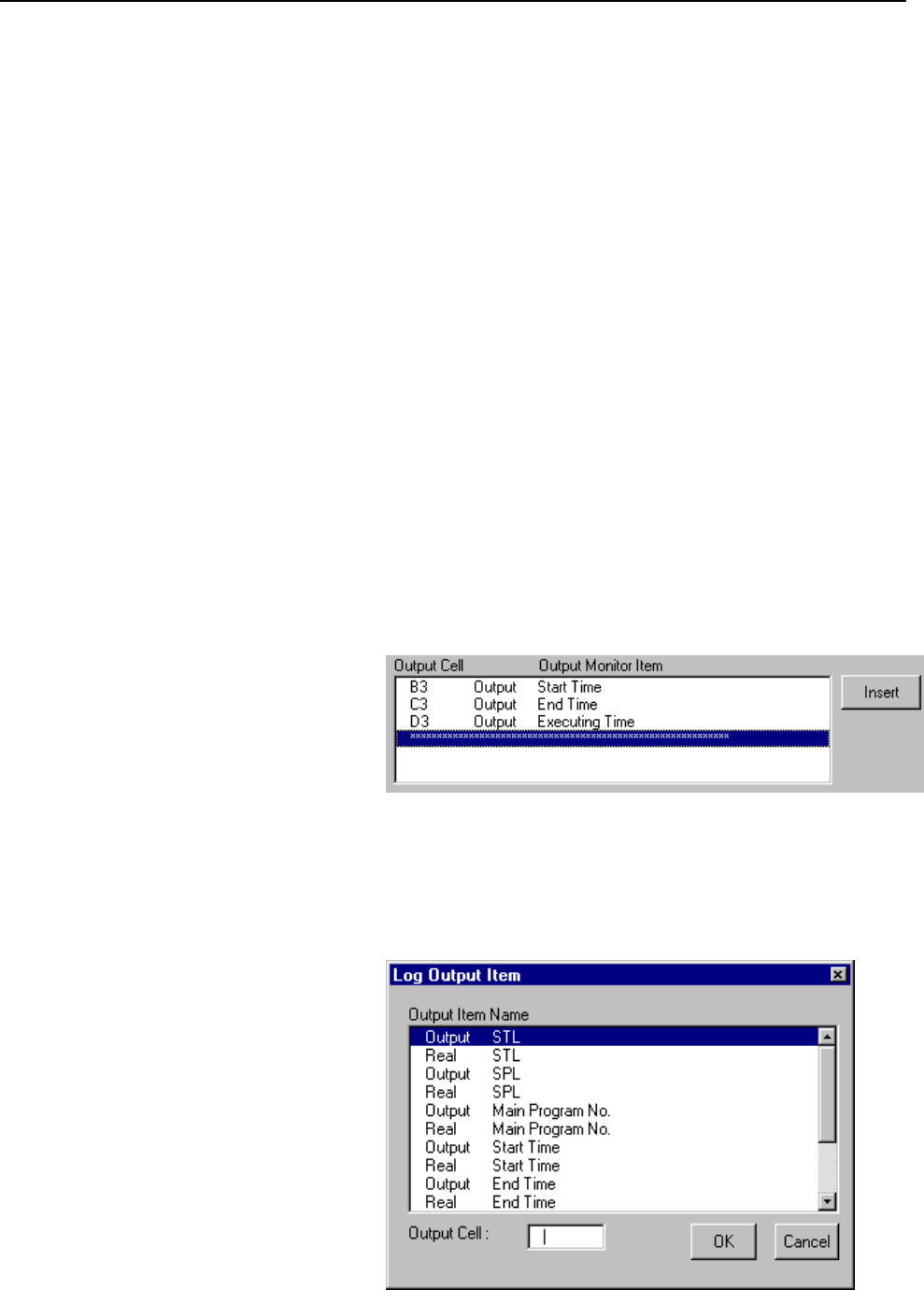

The [Log Output Item] screen appears. The output item name list
shows the names of the monitor data items registered as monitor items
on the worksheet.
