2. BASIC KNOWLEDGE B-63364EN/03
- 20 -
2.3 BASIC OPERATION
This section explains the basics of using the Machining Status Monitor Package.
With the Machining Status Monitor Package, processing is performed by
repeatedly selecting a worksheet and inputting data into its cells.
2.3.1 Selecting a Worksheet
Select a worksheet to be used for operation.
Procedure

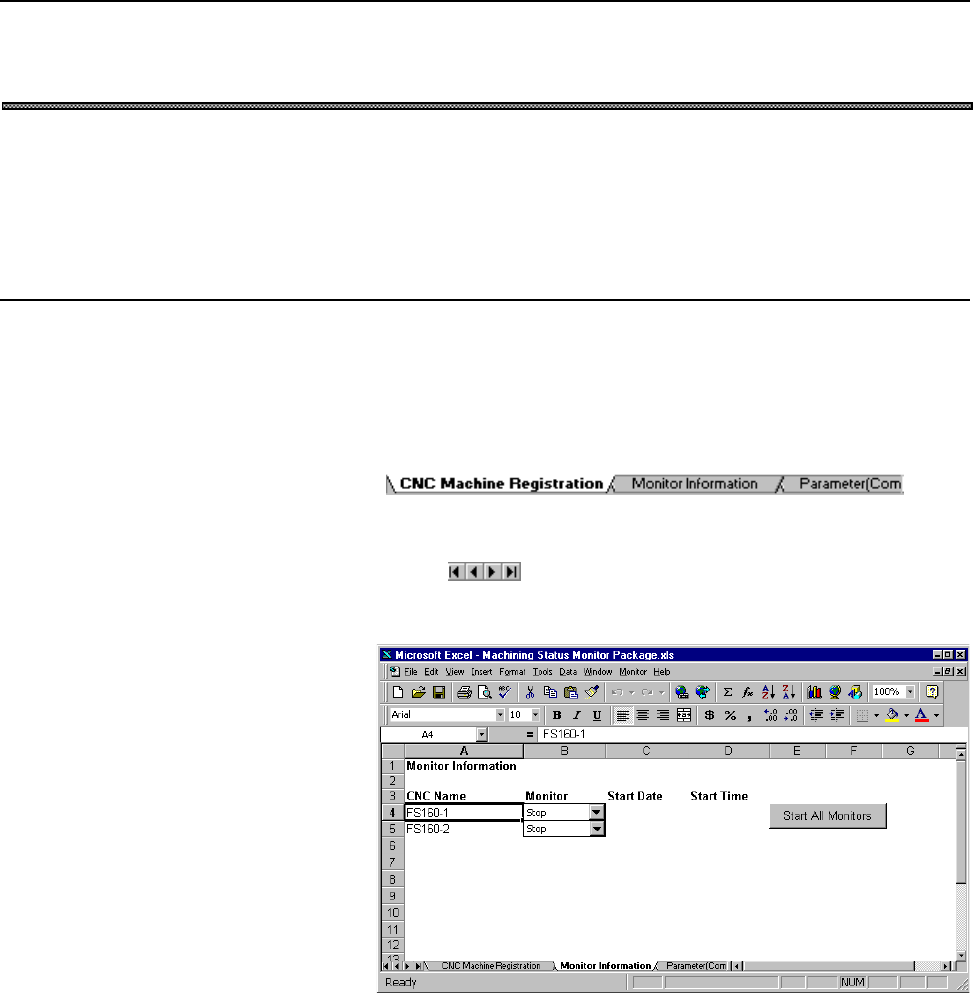

1. Click the sheet name tab of the desired worksheet.
If the sheet name tab of a desired worksheet is not displayed on the screen,
click the
button, located on the left side of the sheet name tabs, to
display the sheet name tab of the target worksheet. Then, click it.
Previous page
Next page
