PROGRAMMING
13. FUNCTIONS TO SIMPLIFY
PROGRAMMING
B–63614EN/01
178
Chamfering and corner rounding blocks can be inserted automatically
between the following:
⋅Between linear interpolation and linear interpolation blocks
⋅Between linear interpolation and circular interpolation blocks
⋅Between circular interpolation and linear interpolation blocks
⋅Between circular interpolation and circular interpolationblocks
, C_
, R_
Chamfering
Corner R
When the above specification is added to the end of a block that specifies
linear interpolation (G01) or circular interpolation (G02 or G03), a
chamfering or corner rounding block is inserted.
Blocks specifying chamfering and corner rounding can be specified
consecutively.

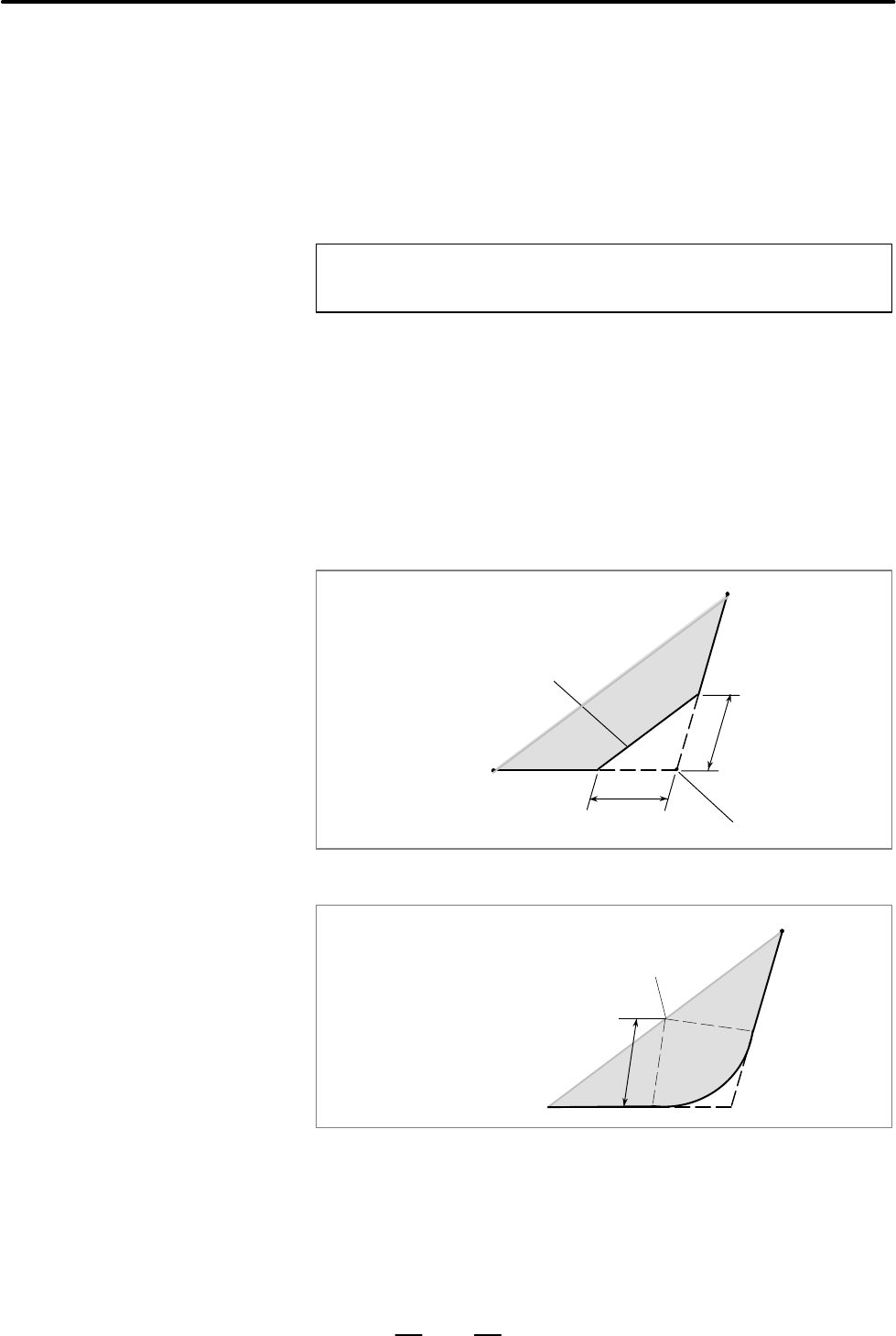

After C, specify the distance from the virtual corner point to the start and
end points. The virtual corner point is the corner point that would exist
if chamfering were not performed.
C
C
Hypothetical corner intersection
Inserted chamfering block
(1) G91 G01 X100.0 ,C10.0 ;
(2) X100.0 Y100.0 ;
After R, specify the radius for corner rounding.
(1) G91 G01 X100.0 ,R10.0 ;
(2) X100.0 Y100.0 ;
Center of a circle with radius R
R
13.3
OPTIONAL ANGLE
CHAMFERING AND
CORNER ROUNDING
Format
Explanations
D Chamfering
D Corner R
