PROGRAMMING

19. HIGH SPEED CUTTING

FUNCTIONS

B–63614EN/01

370

N9N5N1N9N5

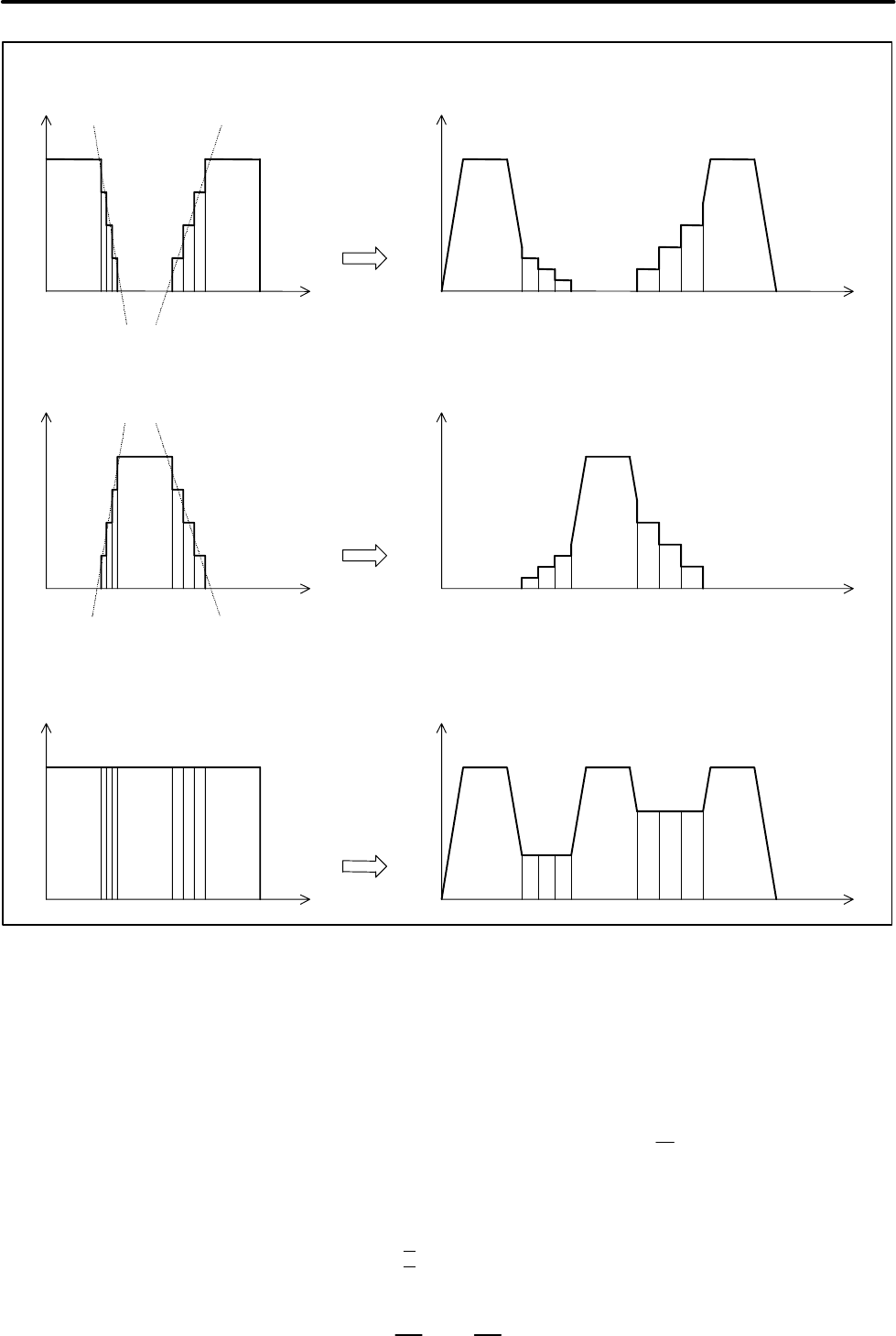

(4)Feedrate clamp based on arc radius

In order that the acceleration in a circular interpolation block must

become a permissible value, the maximum permissible feedrate v for the

programmed circle radius r is calculated from the maximum permissible

feedrate V (parameter setting) in radius R as follows. When the specified

feedrate exceeds the calculated feedrate v, the feedrate is clamped

automatically at the calculated feedrate v.

Maximum permissible acceleration =

R : Circle radius V : Feedrate in circle radius R

The maximum permissible feedrate v for the programmed circle radius r

is obtained in the following expressions.

v +
