Signal addresses

• Parameter No.5040#2(MOP)=0

#7 #6 #5 #4 #3 #2 #1 #0

G0297 AOFS2 AOFS1 CHGAO

#7 #6 #5 #4 #3 #2 #1 #0

F0297 MCHAO

• Parameter No.5040#2(MOP)=1

#7 #6 #5 #4 #3 #2 #1 #0

G0203 AOFS2 AOFS1 CHGAO

#7 #6 #5 #4 #3 #2 #1 #0

F0199 MCHAO

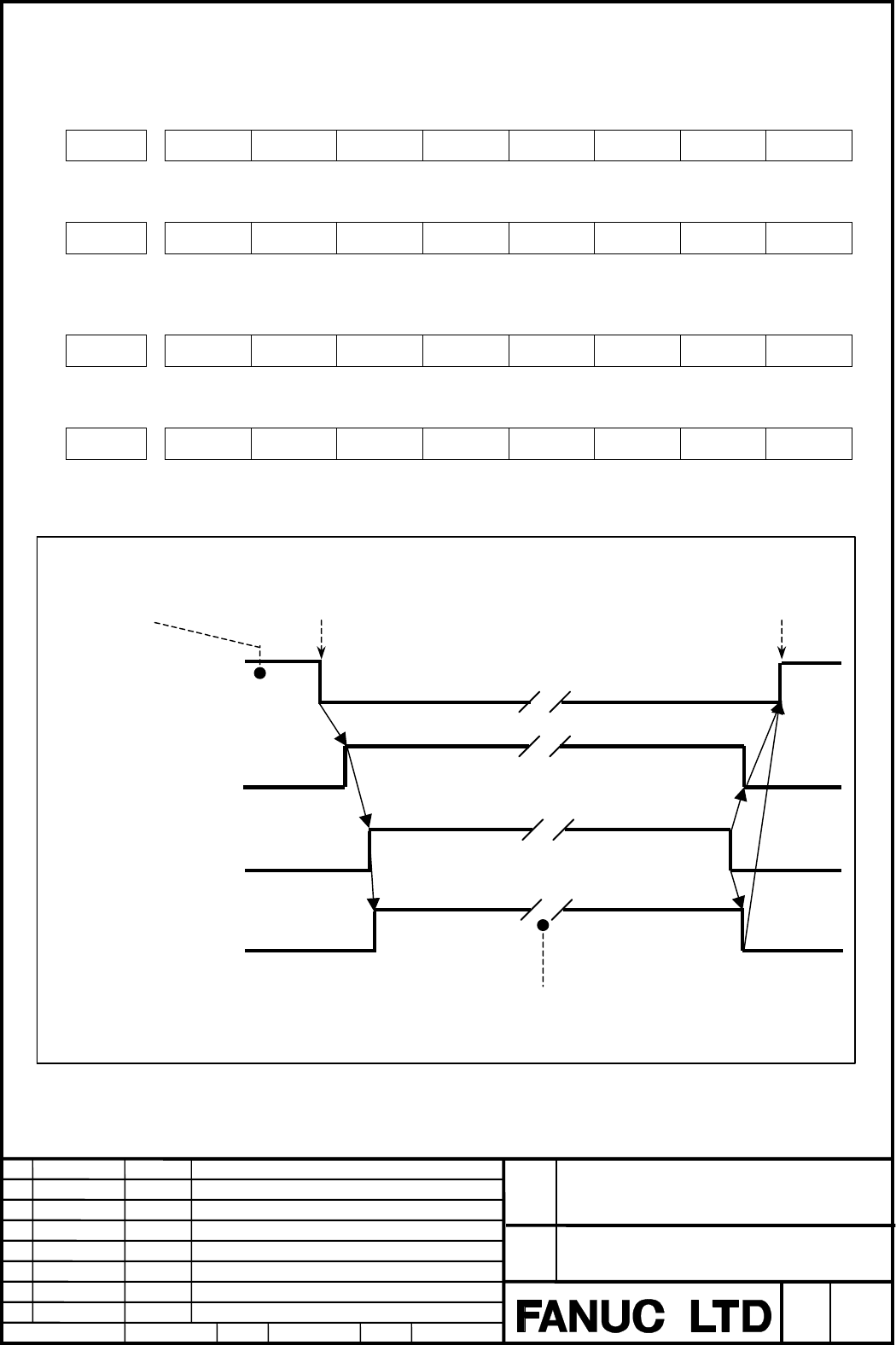

The following timing chart shows how the input and signals behave.

utomatic operation

starting signal (STL)

ctive offset change mode

signal (CHGAO)

ctive offset changing

signal (MCHAO)

The offset selected by the active offset

selection signal (AOFS1 or AOFS2) is

changed by manual feed.

command such as Hxxx, Dxxx or G54

specifies what tool compensation number

or workpiece coordinate system is to be

made valid.

Manual feed

(handle/incremental/jog)

mode

Operation restarts

with the new offset.

Operation is put at pause

(stop) to change the offset.

Edit

Apprv.

Desig.

Sheet

Title

Draw

No.

Date

Design

Descri

tion

Date

FANUC Series16i/18i/21i–MA/MB

Changing Active Offset Value

with Manual Move.

02 030205 Overall revision

001106 S. Isohata E. Genma

A-78535E
