MAINTENANCE1. METHOD OF REPLACING BATTERY

B–63614EN/01

732

One battery unit can maintain current position data for six absolute pulse

coders for a year.

When the voltage of the battery becomes low, APC alarms 306 to 308 (+

axis number) are displayed on the CRT display. When APC alarm 3n7

is displayed, replace the battery as soon as possible. In general, the battery

should be replaced within two or three weeks, however, this depends on

the number of pulse coders used.

If the voltage of the battery becomes any lower, the current positions for

the pulse coders can no longer be maintained. Turning on the power to

the control unit in this state causes APC alarm 300 (reference position

return request alarm) to occur. Return the tool to the reference position

after replacing the battery.

See Section 7.1.3 for details of connecting the battery to separate absolute

pulse coders. The battery for the built–in absolute pulse coder is installed

in the servo amplifier. For an explanation of the replacement procedure,

refer to the FANUC SERVO MOTOR a Series Maintenance Manual.

Obtain four commercially available alkaline batteries (size D).

(1)Turn on the power to the machine (i Series CNC).

(2)Loosen the screws on the battery case connected to the interface unit

of the detector separately installed, and remove the cover.

(3)Replace the dry batteries in the case.

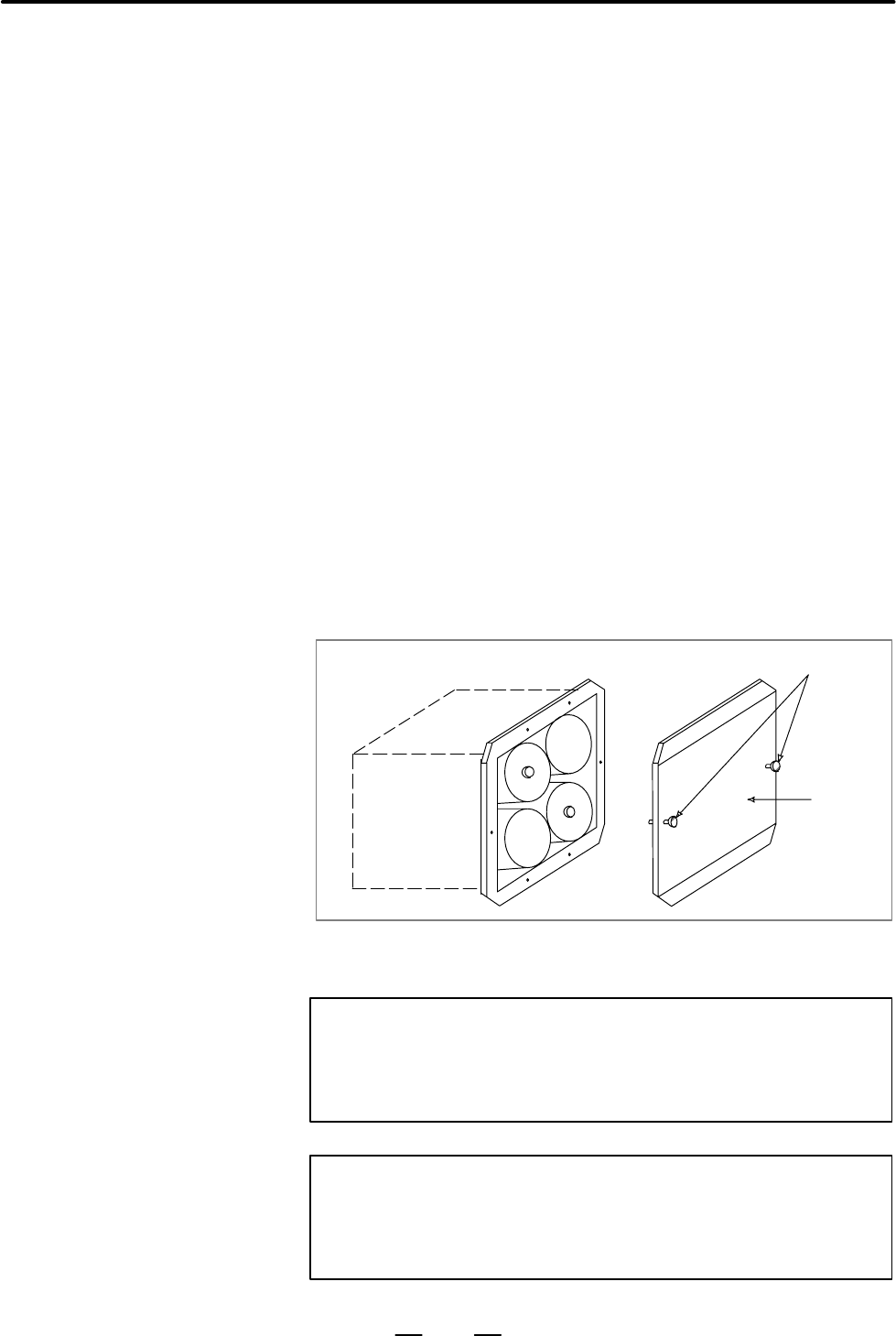

Note the polarity of the batteries as shown in the figure below (orient

two batteries one way and the other two in the opposite direction).

Screws

Cover

(4)After installing the new batteries, replace the cover.

(5)Turn off the power to the machine (i Series CNC).

WARNING

If the batteries are installed incorrectly, an explosion may

occur. Never use batteries other than the specified type

(Size D alkaline batteries).

CAUTION

Replace batteries while the power to the i Series CNC is on.

Note that, if batteries are replaced while no power is

supplied to the CNC, the recorded absolute position is lost.

1.4

BATTERY FOR

SEPARATE

ABSOLUTE PULSE

CODERS (6 VDC)

Replacing batteries
