1. Fanuc
  2. Series 16i/18i/21i/20i/160i/180i/210i/160is/180is/210is - Model A

Series 16i/18i/21i/20i/160i/180i/210i/160is/180is/210is - Model A Connection manual (Hardware) Page 210

Connection manual (Hardware)
B–63003EN/04
9. FANUC INTELLIGENT TERMINAL TYPE 2
195

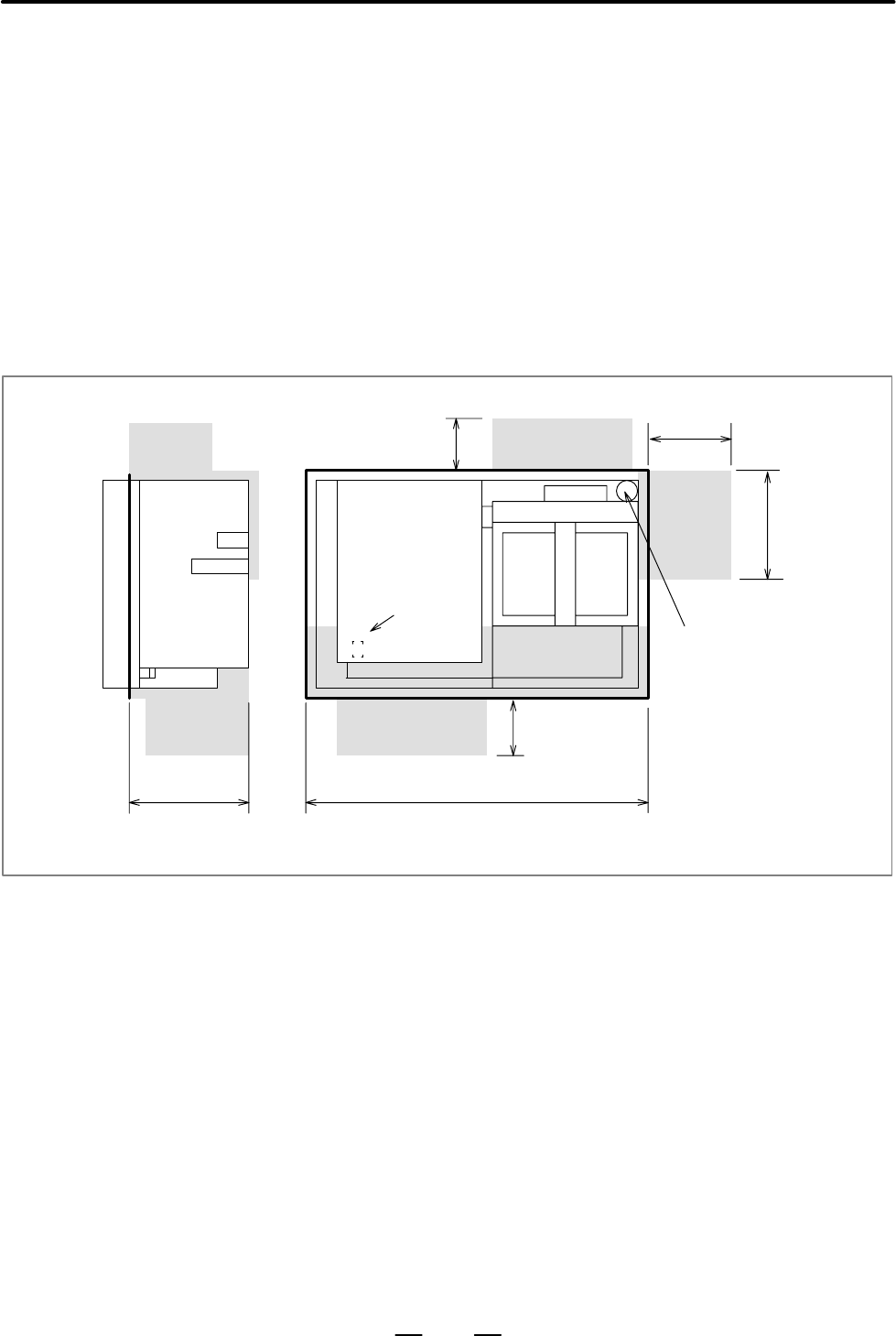

The space shown below must be available around the intelligent terminal
type 2 after it is installed.
A: Space for cables. Provide an appropriate area at A so that the cables
to be used can be installed. If an ISA expansion board is used,
determine dimension X so that the cable to be used with the ISA
expansion board can be installed.
B: This space is required for battery replacement in the intelligent
terminal mounted on the panel. Battery replacement requires that the
operator work at the rear of the terminal.
C: This space is required for ventilation.
D If you want to perform fuse replacement in intelligent terminal type 2
while the terminal is mounted on the panel, there must be sufficient
space available for maintenance work at the rear of the terminal.
B
C
C
A
B
A
X
110 290
50
80
100
Front Rear
ISA expansion
board location
Fuse
Battery
(Unit: mm)
9.6
INSTALLATION
SPACE
