10. CONNECTION TO FANUC I/O Link
B–63003EN/04
348
Specification of
printed circuit board
Description
A20B–8001–0210 D Without general–purpose DO
D The other input/output interface specifications are
the same as those of the A20B–8001–0721
printed circuit board.
D The outer shape of the printed circuit board is
rectangular.
A20B–8001–0720 D Without general–purpose DO
D The other input/output interface specifications and
outer shape of the printed circuit board are the
same as those of the A20B–8001–0721 printed
circuit board.

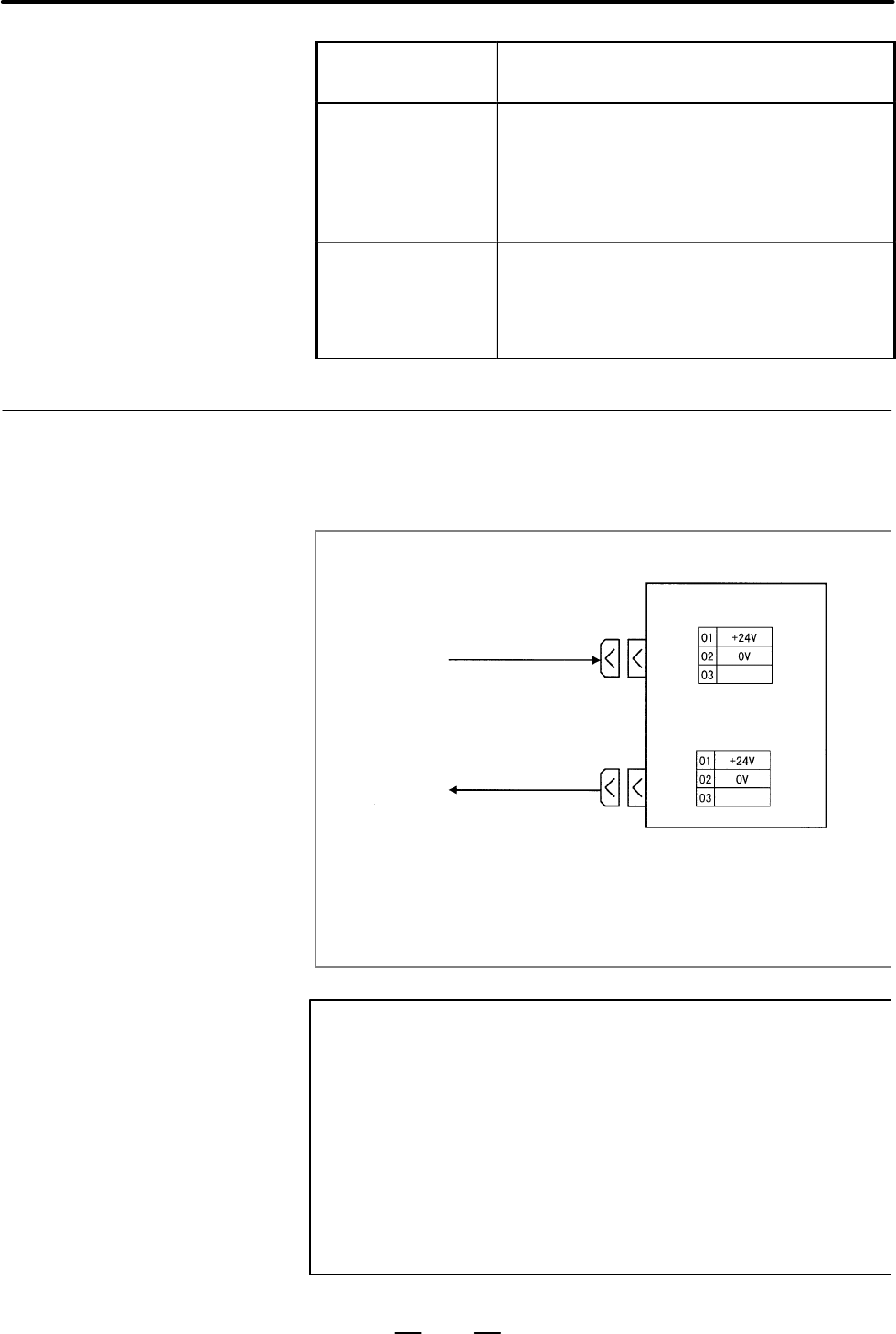

To connector CPD1(IN) shown below, supply the power required for the
operator’s panel and general–purpose DI. To facilitate power
distribution, the power applied to CPD1(IN) is directly output to
CPD1(OUT). Use CPD1(OUT) if power distribution is required.
CPD1(IN)
CPD1(OUT)
(Connector table)
24 V power
supply
24 V power
supply
Connector recommended for use on the cable side: A02B–0120–K324
(The following connector housing and case are provided:)
(Housing: 1–178288–3 (AMP Japan))
(Contact: 1–175218–5 (AMP Japan))
NOTE
1 Power connectors CPD1(IN) and CPD1(OUT) have the
same specification. On the actual printed circuit board, (IN)
and (OUT) are not distinguished from each other.
2 During operation, never turn off the +24 V power supply to
the connector. Otherwise, a CNC communication alarm is
issued. Ensure that +24 V is supplied either when or before
the power to the CNC is turned on, and that the +24 V supply
is removed either when or after the power to the CNC is
turned off.
10.12.4
Power Supply
Connection
Previous page
Next page
