Series 16i/18i/21i/20i/160i/180i/210i/160is/180is/210is - Model A Connection manual (Hardware) Page 369

Connection manual (Hardware)

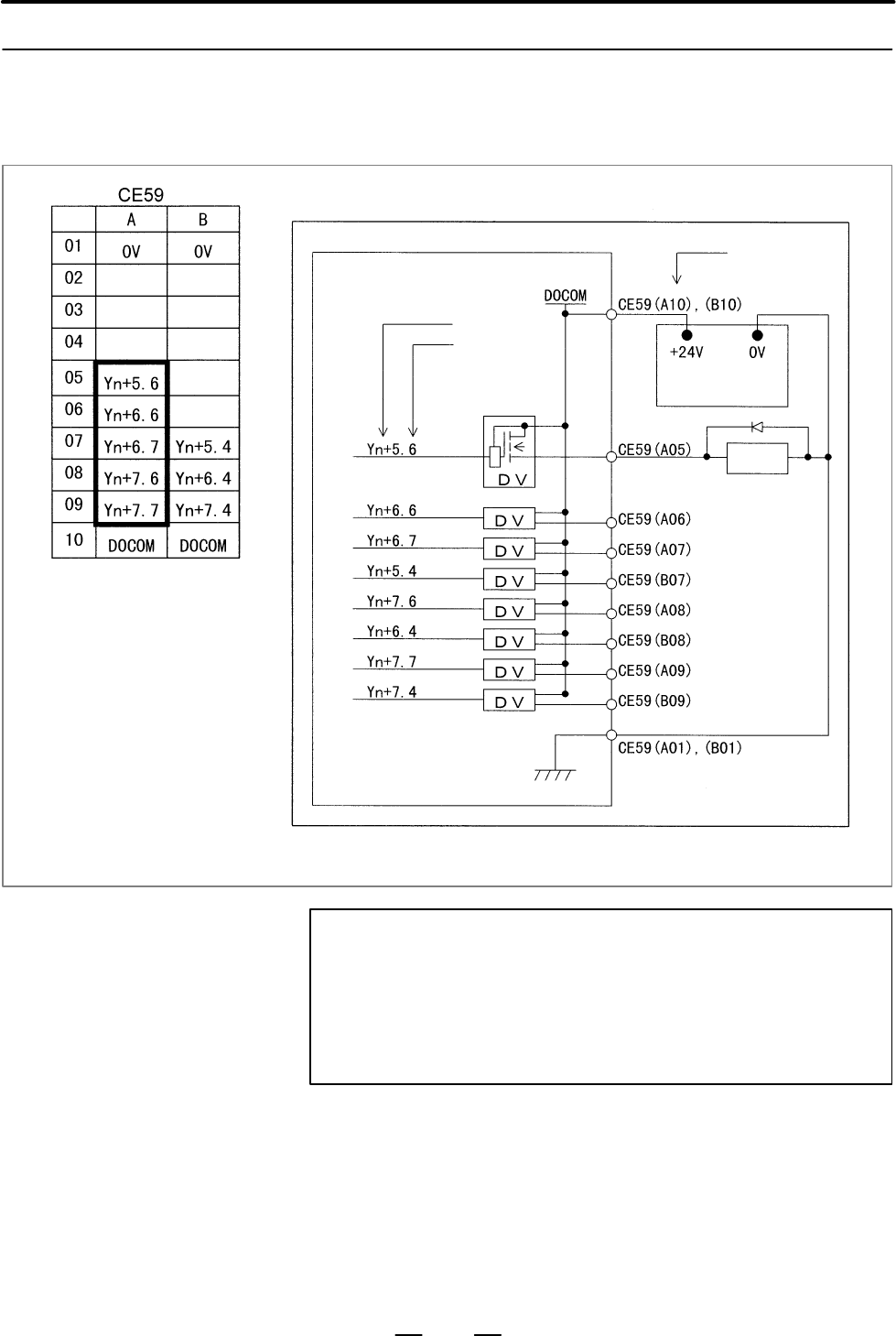

10. CONNECTION TO FANUC I/O Link
B–63003EN/04
354
(Note)
Pin number
Bit number
Pin number
+24 V power
supply
Relay
Cable recommended for use on the CE59 cable side: HIF3BA–20D–2.54R (Hirose Electric)
NOTE
With the small machine operator’s panel, all of the eight
general–purpose DO points indicated above can be used.
With the standard–size machine operator’s panel, only the
five general–purpose DO points enclosed in the bold
rectangle can be used.
10.12.7
General–purpose DO
Signal Connection
