Series 15i/150i - Model A Connection manual (Hardware) Page 164

Connection manual (Hardware)
B–63323EN/03
6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
153

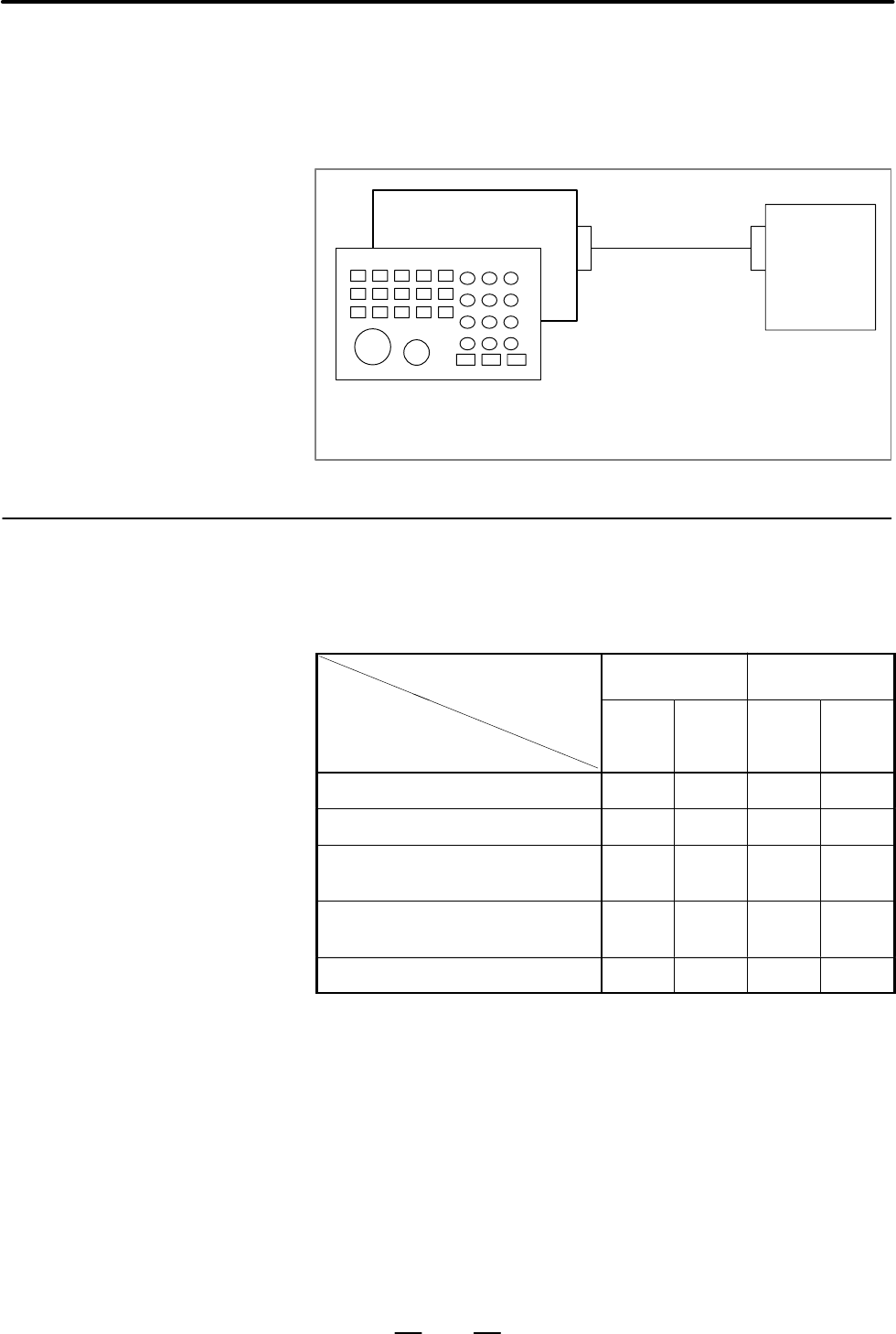

The machine operator’s panel interface unit (A16B–2201–0110) is
connected to the control unit through the I/O Link and is used for
interfacing with the machine operator’s panel.
It features interfaces with matrix key switches, LEDs and manual pulse
generators.
Machine operator’s
panel I/F unit
FANUC I/O Link
Control unit
Machine operator’s panel
(supplied by a machine tool
builder)
Operator’s panel control PCB
allocation to the I/O Link
DI/DO = 128/128 DI/DO = 256/256
DI/DO
(module name)
DI or DO
DI
(OC02I)
DO
(OC02O)
DI
(OC03I)
DO
(OC03O)
Number of matrix key switch inputs 64 96
Number of matrix LED data outputs 64 64
Number of general–purpose switch
inputs
32 32
Number of general–purpose LED data
outputs
32 32
Number of total DI/DO points 96 96 128 96
D Matrix key switch inputs (matrix DI)
Ninety–six DI points are provided by a matrix of twelve common
signals times eight data signals. Note that I/O Link allocation may
limit the number of usable key switch inputs.
D Matrix LED data outputs (matrix DO)
Sixty–four DO points are provided by a matrix of eight common
signals times eight data signals.
D General–purpose switch inputs (general–purpose DI)
Each general–purpose DI point has an individual interface.
D General–purpose LED data outputs (general–purpose DO)
Each general–purpose DO point has an individual interface.
6.7
CONNECTION OF
MACHINE
OPERATOR’S PANEL
INTERFACE UNIT
6.7.1
Function Overview
Number of DI/DO points
