Series 15i/150i - Model A Connection manual (Hardware) Page 391

Connection manual (Hardware)
10. FANUC PANEL i
B–63323EN/03
380

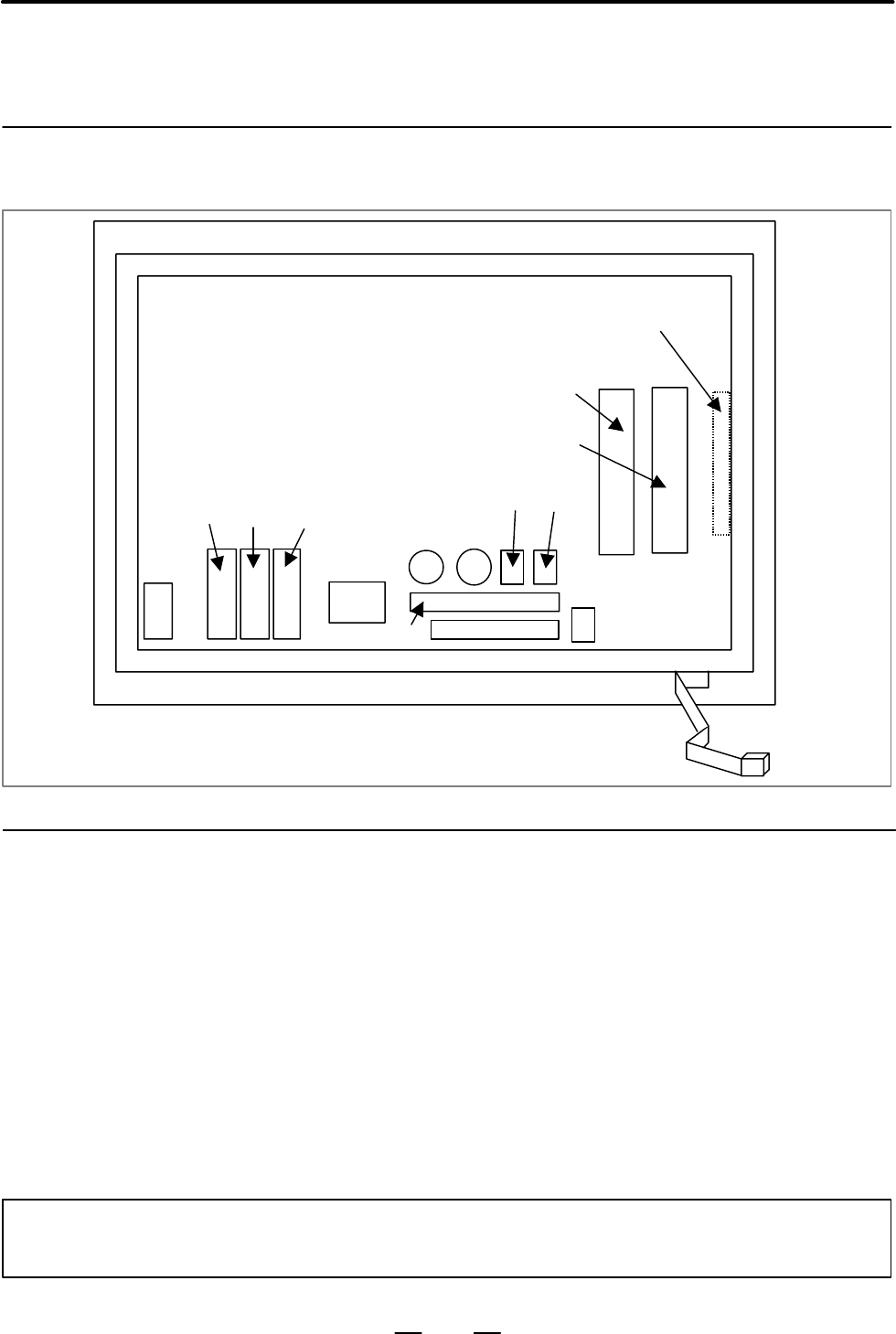

Soft–key
(Connect to separate
MDI) ³ 10.7.11
PCMCIA
Card slot
(Display side)
CP5
Show from
The back side
CNH3
CD34
COP7
CN7
CD32B CD32A
CN2
CN2B
JD9
JD33
JD46
CNP1
CNP2
Connector Number Connector Name Function Reference
CP5
+24V INPUT Main Power Input to Section 10.7.2.
JD33 232–1 Serial Port 1 to Section 10.7.3.
JD46 232–2 Serial Port 2 +USB to Section 10.7.4.
JD9 CENTRO Parallel Port to Section 10.7.5.
COP7 HSSB HSSB to Section 10.7.6.
CD32B MOUSE Mouse to Section 10.7.7.
CD32A KEY BOARD Full Keyboard to Section 10.7.8.
CNH3 HDD HDD Signal to Section 10.7.9.
CN2B HDD POWER HDD Power Output to Section 10.7.9.
CN7 HDD FAN FAN for HDD to Section 10.7.9.
CD34 FDD FDD Signal to Section 10.7.10.
CN2 FDD POWER FDD Power Output to Section 10.7.10.
PCMCIA Card to Section 10.7.12.
CNP1 PCI SLOT 1 PCI extension slot 1 to Section 10.8
CNP2 PCI SLOT 2 PCI extension slot 2 to Section 10.8
NOTE
The Soft–Key only exists in the PANEL i with Soft–Key.
10.7
CONNECTION TO
PERIPHERAL
10.7.1
Connector Location
