D. OPTICAL FIBER CABLE
B–63323EN/03
496
Internal cord type cable:
Lightly clamp the optical cable with a nylon band so that the
cable shield is not deformed. If possible, the clamping force
should be 1 or 2 kg (make sure that no force is applied to the
cable). Due care is required when clamping the internal cord
type cable because its cable shield is weaker than the reinforcing
cover of the external cable.
5. Optical fiber cable relay
When used for the FANUC I/O Link application, optical fiber cables
can be connected by using an optical fiber adapter, as follows.

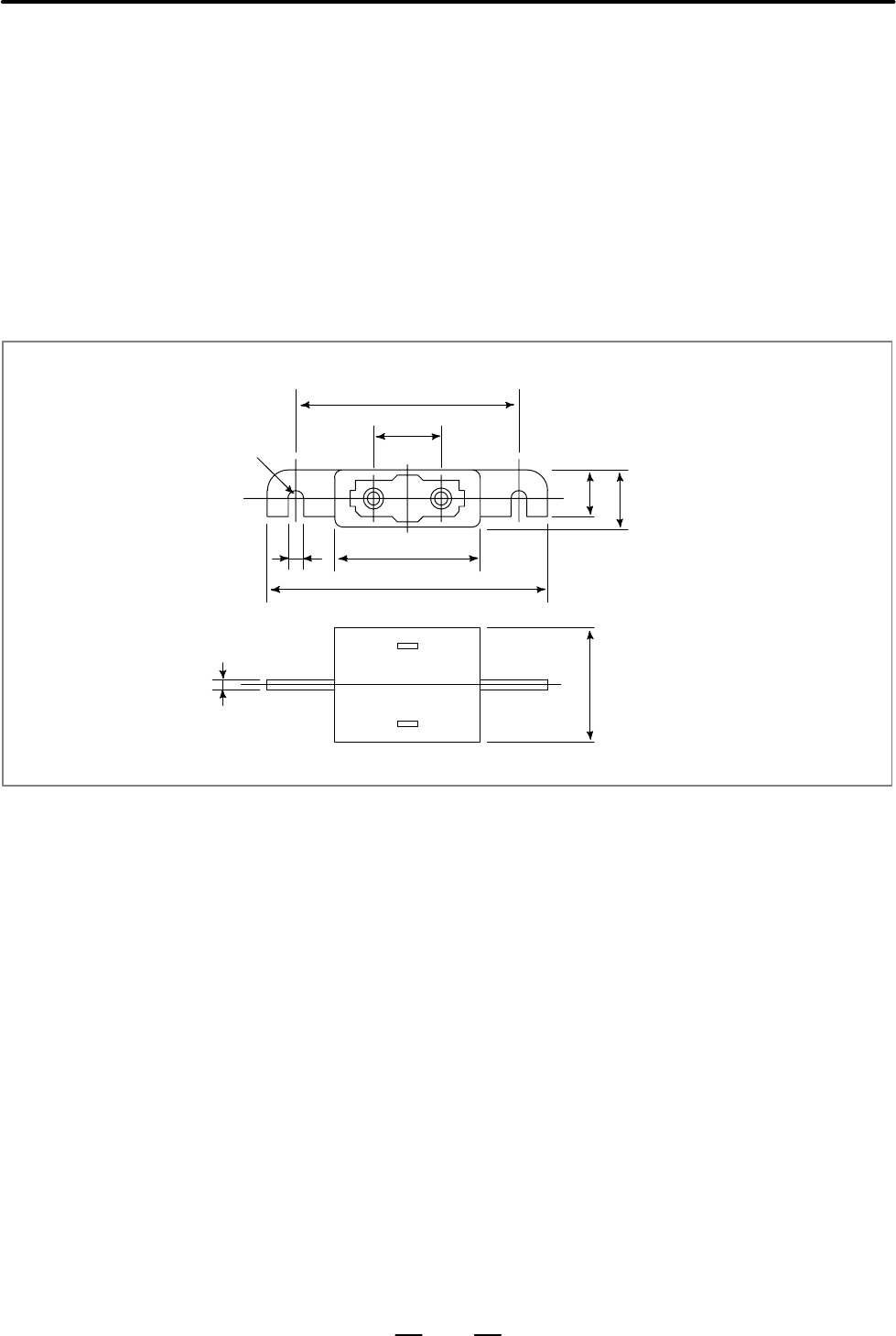

(a) External view of an optical fiber adapter
42"0.5
21"0.5
3.2
10.16
32"0.3
R1.6
18.2"
0.5
2.2
6.6
8.2
