Connection manual (Hardware)
9. FANUC INTELLIGENT TERMINAL
B–63323EN/03
362

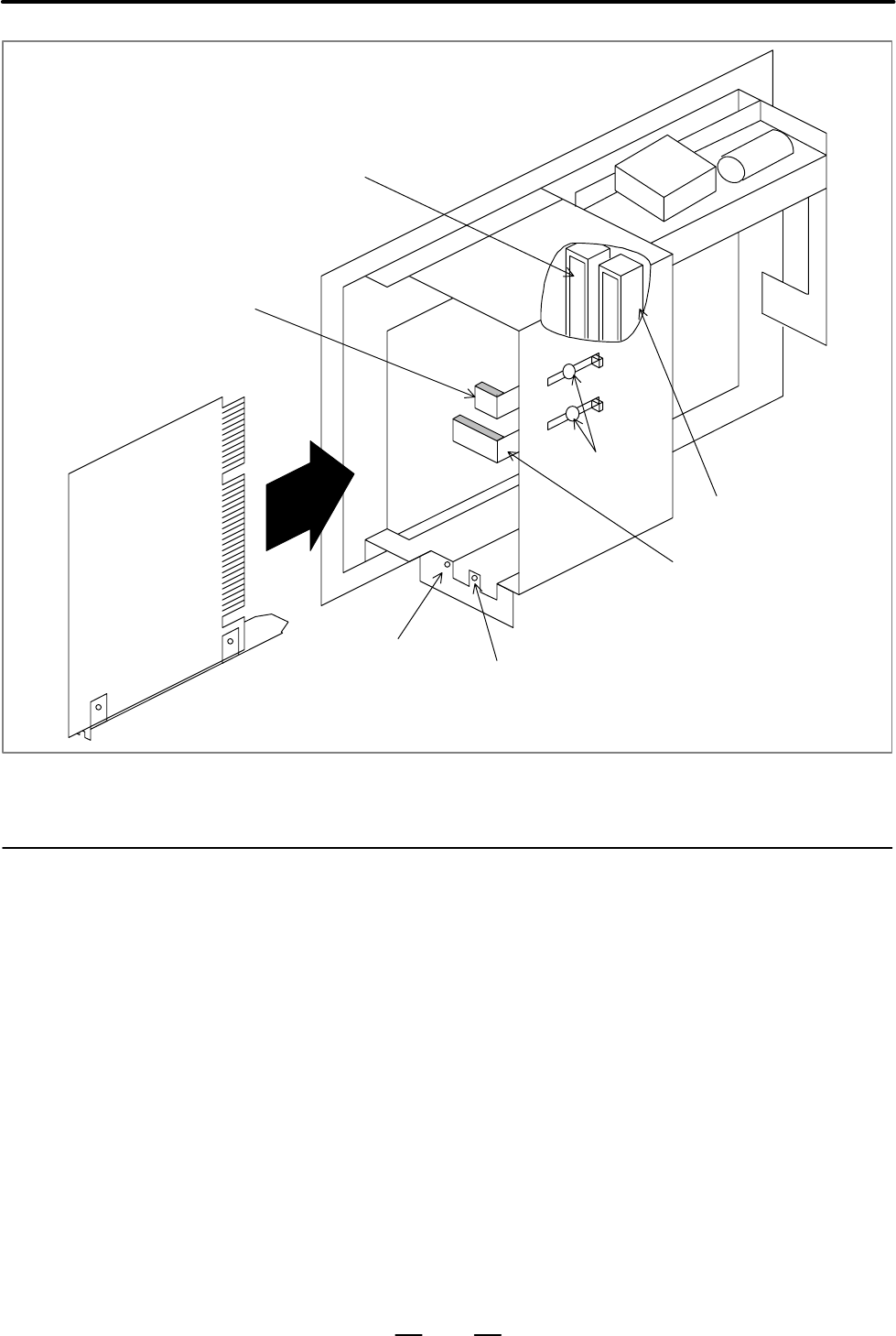

Screw fastening portion A
Screw fastening portion B
Slot A
Vibration–proof bracket B
Vibration–proof bracket A
Slot B
Screw
Installing the ISA Expansion Board
(1) Address map
D The memory space is the same as that of IBM–PC–compatible
personal computers. The intelligent terminal does not use any
special area. (The memory space 0C8000h to 0DBFFFh can be
used.)
D In the I/O space, 0280H to 028FH are used by the intelligent
terminal and, therefore, cannot be used by the ISA expansion
board.
The above addresses may be changed. To do this, use the rotary
switches on the main printed circuit board. Other areas are the same
as those of IBM–PC–compatible personal computers.
9.8.2
Notes on Use
