FANUC SUPER CAP T / CAP II T Operators manual Page 151

Operators manual

Page of 606

/ 606

12. DIRECT OPERATION FOR

MACHINING PROGRAMS

CREATED CONVERSATIONALLY

B–62444E–1/04

OPERATION

138

(1) Manual reference position return operation

First, manually return to the reference position. When reference

position return has been performed previously, this screen is not

displayed.

Operation)

After manually returning to the reference position along the X and Z axes,

press the [NXT–PG] soft key.

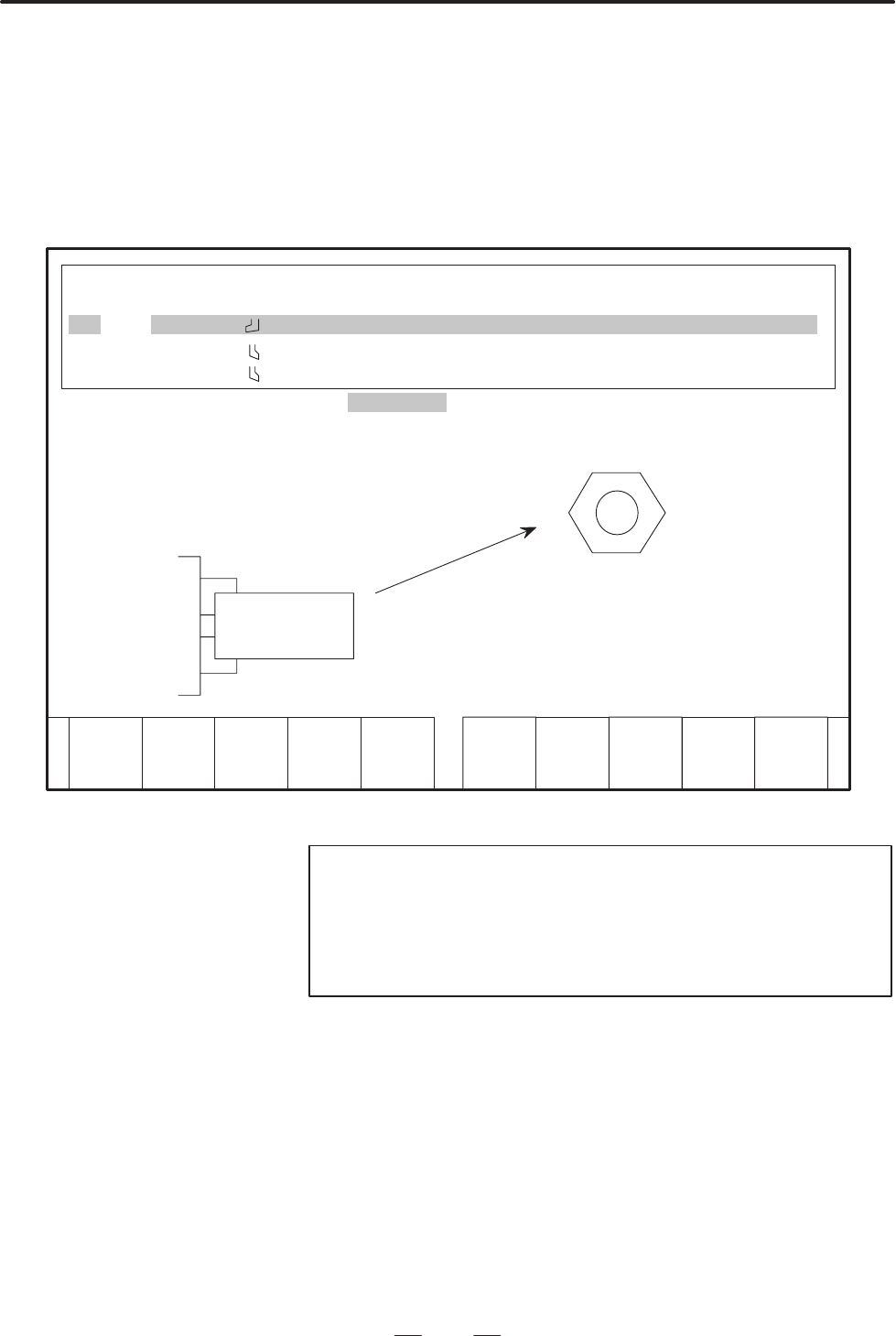

*** TOOL PREPARATION *** NO. 101

RETURN

101#01 OUTTER T0505 RN 0.400 AC 90 AN 60 TW 20.000

103#02 OUTTER T1111 RN 0.400 AC 90 AN 60 TW 20.000

104#01 OUTTER T0909 RN 0.400 AC 120 AN 30 TW 20.000

NXT–PG

1. RETURN X, Z AXIS TO REFERENCE POINT

[CAP.: HEAD–L]

To return to the tooling data screen, press the [RETURN] soft key.

NOTE

On the setup screen, data of the tool for which the geometry

compensation is measured is displayed at the top of the

screen with the data of tools registered before and after the

tool.
