In the Two–path lathes, an NC–format machining program is created
separately for each tool post, tool post 1 or 2, and is stored. Each
NC–format machining program is totally independent.
In a conversational machining program, each machining process is
created separately for tool post 1 or 2. However, processes for both tool
posts are combined and stored as a one machining program. When a
certain conversational machining program is selected, a workpiece is
machined within the processes specified in the program for tool posts 1
and 2. Different machining programs cannot be executed for the two tool
posts.

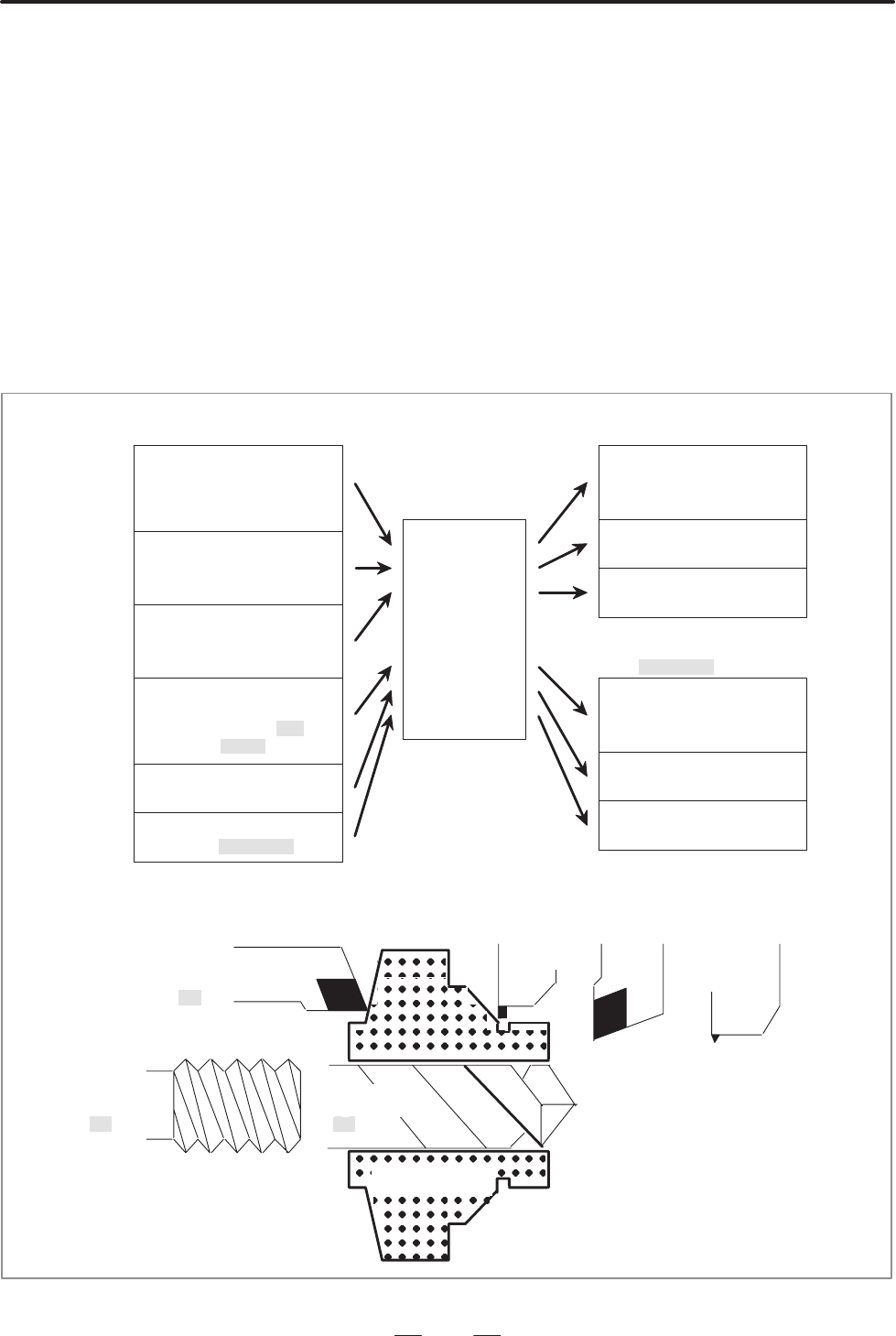

The following figure shows how a conversational machining program is
executed.
Process 5
with a drill
Conversational machining
program
Process 1: Machining the
outer surface of
a bar with tool
post 1
Process 2: Grooving on an
outer surface
with tool post 1
Process 3: Threading on an
outer surface
with tool post 1
Process 4: Machining the
end face of a
bar with tool
post 2
Process 5: Drilling with tool
post 2
Process 6: Tapping with
tool post 2
Process 1: Machining the
outer surface of
a bar
Process 2: Grooving on an
outer surface
Process 3: Threading on an
outer surface
Process 4: Machining the
end face of a
bar
Process 5: Drilling
Process 6: Tapping
Processes to be executed
with tool post 2
Processes to be executed
with tool post 1
The processes
are classified
by the tool post
used.
Process 4 with
an end–facing
tool #2
Process 2
with a
grooving
tool #1
Process 1
with a tool
used for
machining
an outer
surface
#1
Process
3 with a
threading
tool
#1
Process 6
with a tap
#2
#2
Workpiece to be
machined
6.2
FORMAT OF
MACHINING
PROGRAM USED
FOR THE TWO–PATH
LATHES
