FANUC SUPER CAP T / CAP II T Operators manual Page 416

Operators manual
B–62444E–1/04
2. MACHINING PROGRAMS FOR
LATHES WITH C–AXIS
TYPES OF MACHINING
PROGRAMS
405
Blank

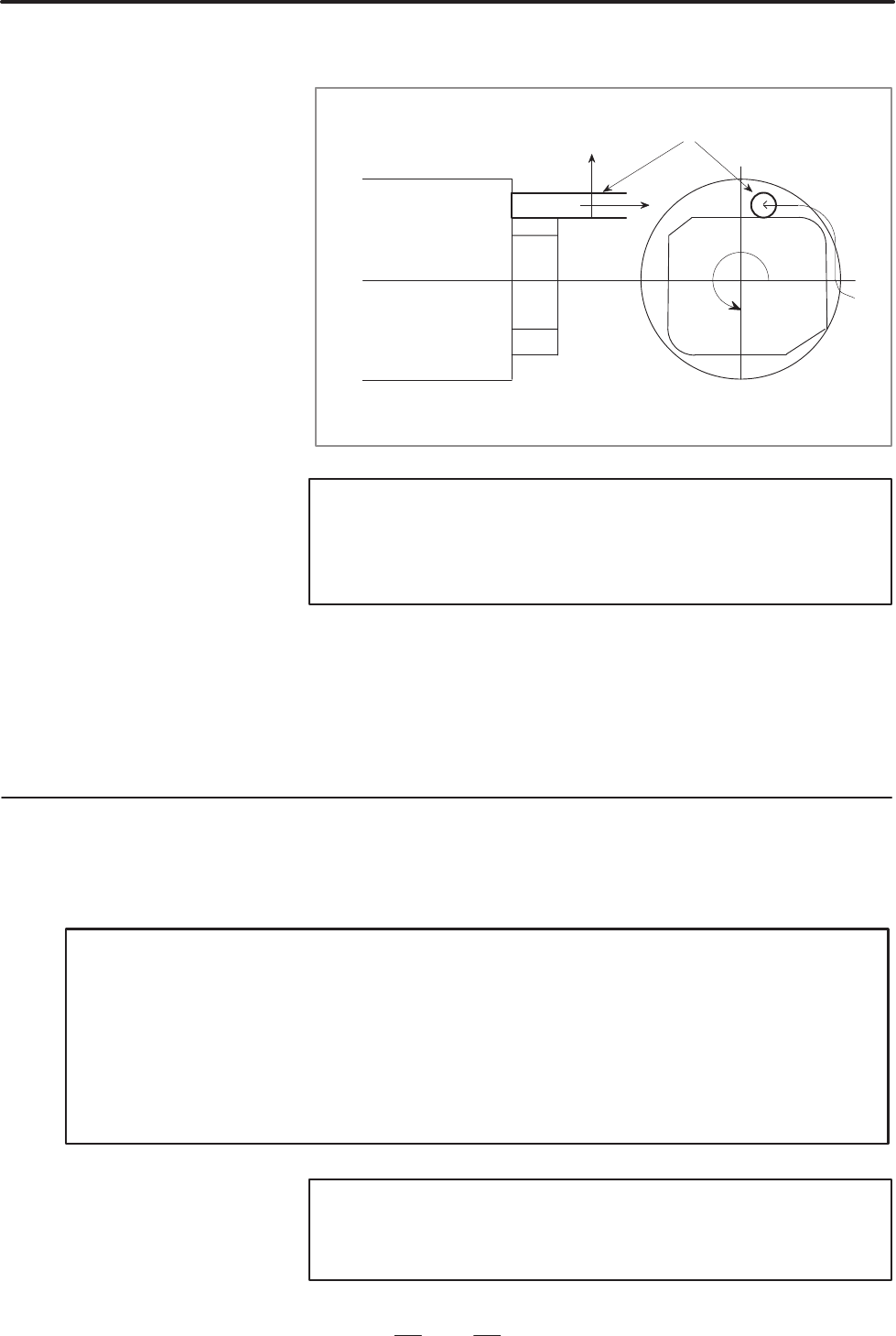

Notch
End–face end mill
X
Z
C–axis
End face of
a blank
NOTE
Notching for end faces may not be possible due to a cutter
compensation C interference alarm, depending on the cut
profile.
Furthermore, one of the tool offset data items (number of offset groups,
offset number 16 in the case of group 16, or number 32 in the case of group
32, or number 64 in the case of group 64, or number 97 in the case of group
97) is exclusively used for the offset data above, so the offset data item
cannot be used for other purposes.
When the cursor is moved to the end of program, a new process is
automatically created and the machining type menu is displayed in the
soft key field.
Pressing the [C–NOTC] soft key selects C–axis notching.
PROC(01) AREA HEAD STAT–PZ END–PTZ REMOVALX TOOL–NO T–CODE
C–NOTCH(R) FACING HEAD–L 0.000 5.000 10.000 752 1212
REV/MIN FEED/MIN FINISHX FINISHZ
2667 4000 0.500 0.300
PROC(01) AREA HEAD STAT–PZ END–PTZ TOOL–NO REV/MIN T–CODE
C–NOTCH(F) FACING HEAD–L 0.000 5.000 752 2667 1212
FEED/MIN BEVEL–AM
4000
NOTE
When data other than 0 is specified for BEVEL–AM, the
following chamfering process is automatically created.
2.5
C–AXIS NOTCHING
FOR END FACES
2.5.1
Machining Type
Selection
Previous page
Next page
