FANUC SUPER CAP T / CAP II T Operators manual Page 152

Operators manual

Page of 606

/ 606

B–62444E–1/04

12. DIRECT OPERATION FOR

MACHINING PROGRAMS

CREATED CONVERSATIONALLY

OPERATION

139

(2) Tool indexing

The tool index request screen appears after the reference position

return request screen described in the previous section. The tool to

be measured is indexed from the machine operator’s panel.

Operation)

After indexing a tool from the machine operator’s panel, press the [END]

soft key.

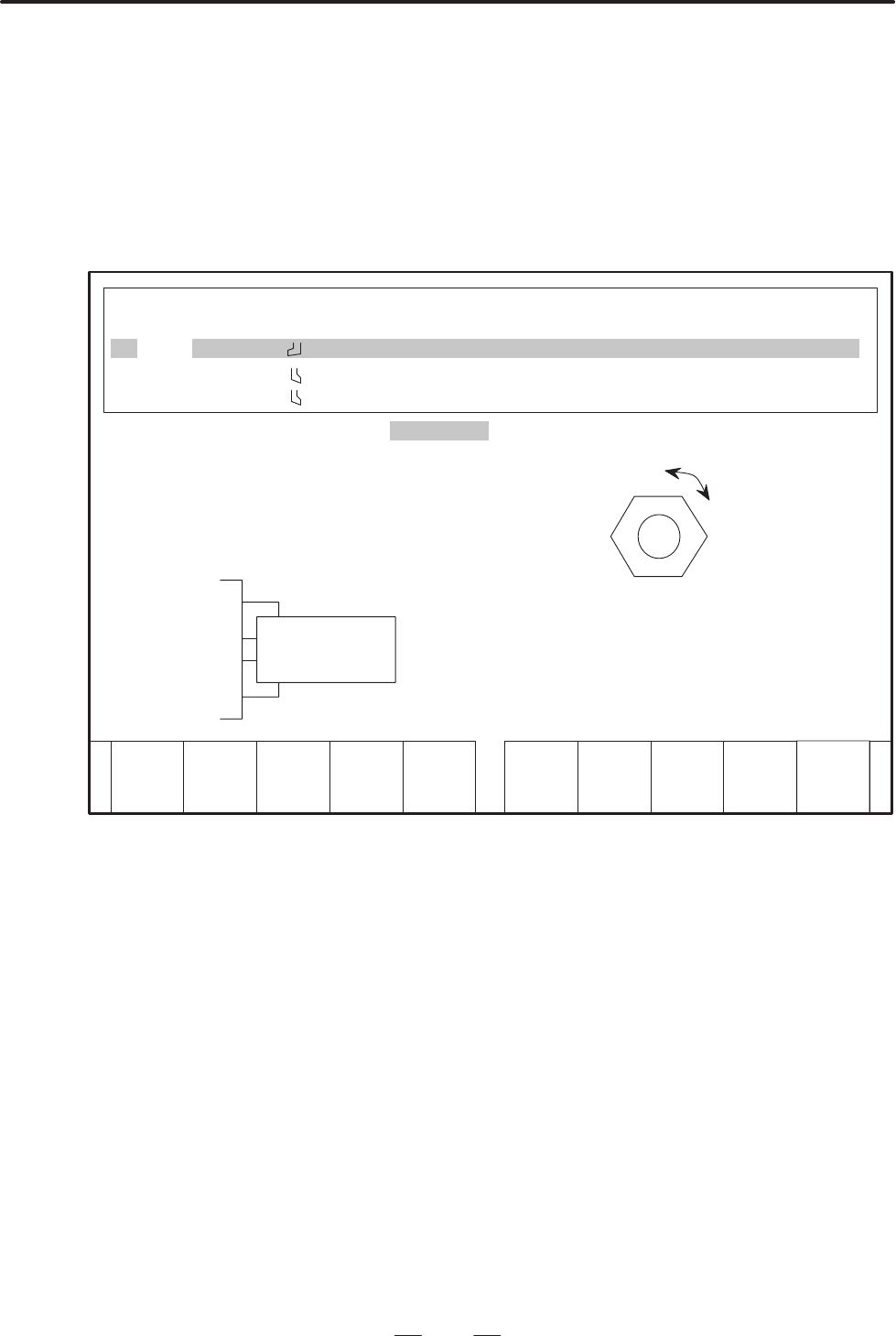

*** TOOL PREPARATION *** NO. 101

RETURN<

[CAP.: HEAD–L]

101#01 OUTTER T0505 RN 0.400 AC 90 AN 60 TW 20.000

103#02 OUTTER T1111 RN 0.400 AC 90 AN 60 TW 20.000

104#01 OUTTER T0909 RN 0.400 AC 120 AN 30 TW 20.000

NXT–PG

2. CHANGE TO ACTUAL TOOL

AFTER CHANGING TO ACTUAL TOOL,

PUSH SOFTKEY [END]

PRE–PG END

The [PRE–PG] soft key displays the previous page, the [NXT–PG] soft

key displays the next page, and the [RETURN] soft key displays the

previous screen.
