FANUC SUPER CAP T / CAP II T Operators manual Page 290

Operators manual

Page of 606

/ 606

B–62444E–1/04

1. MACHINING PROGRAMS FOR

2–AXES (X AND Z AXIS) LATHES

TYPES OF MACHINING

PROGRAMS

279

The contour of the tool post 2 (right–side spindle) on the lathe that has two

facing spindles is entered as follows.

(1) When the program zero point is at the workpiece end

When the coordinate of the zero point of the workpiece end face is

(0, 0), enter  then  so that the Z–axis runs in the opposite

direction for tool post 1.

The bar machining contours of outer and inner surfaces are entered

from left to right on the screen. The contour for end–face bar

machining is entered from outer surface to inner surface and to the

left.

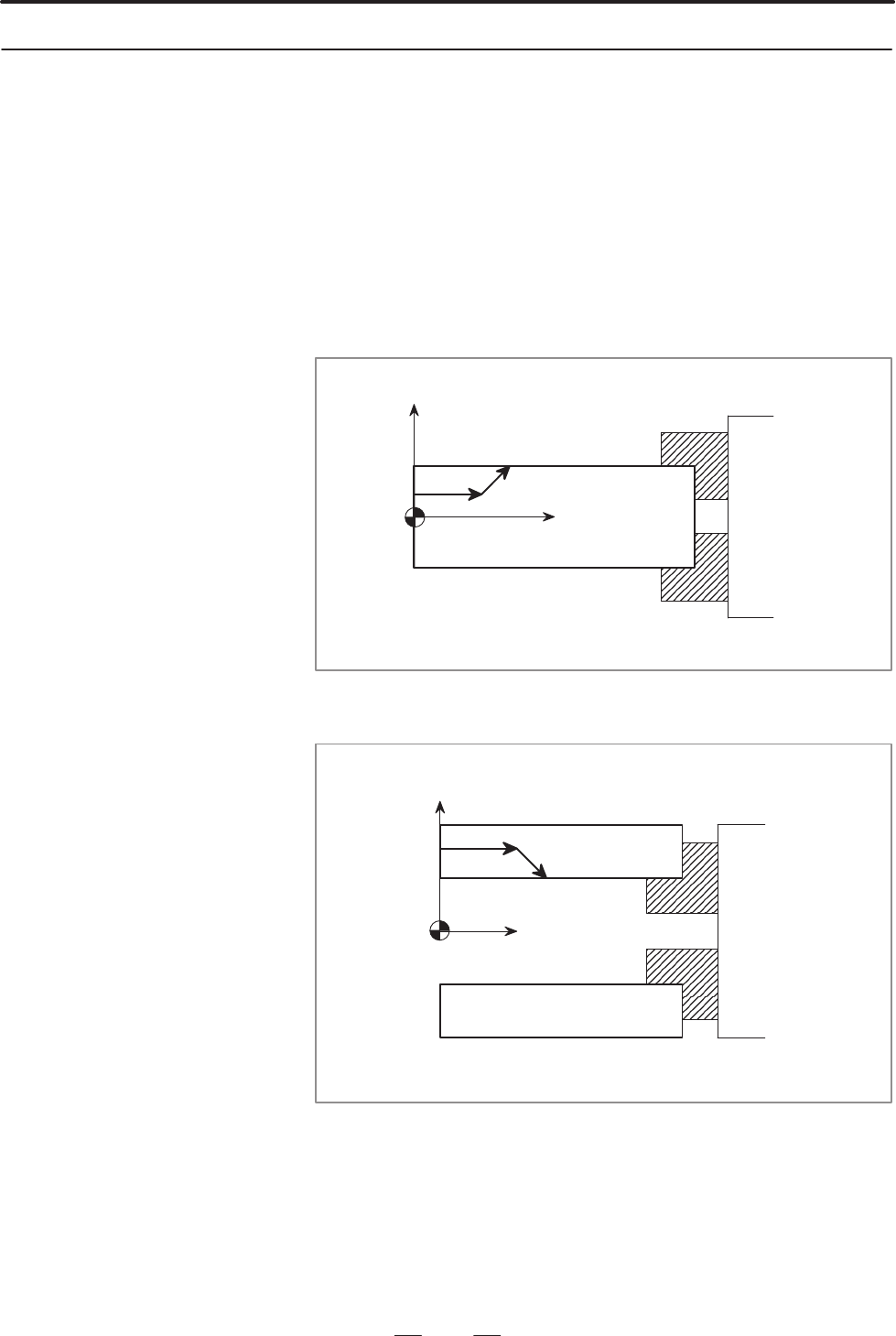

- Contour of the outer surface bar

[frame_small]





+Z2

+X2

Workpiece

Spindle

- Contour of the inner surface bar





+Z2

+X2

Workpiece

Spindle

1.1.8

Entering Contour Data

for Machining on the

2–Path Lathe with Two

Spindles Facing Each

Other
