FANUC SUPER CAP T / CAP II T Operators manual Page 191

Operators manual
13. SETTING DATA
B–62444E–1/04
OPERATION
178

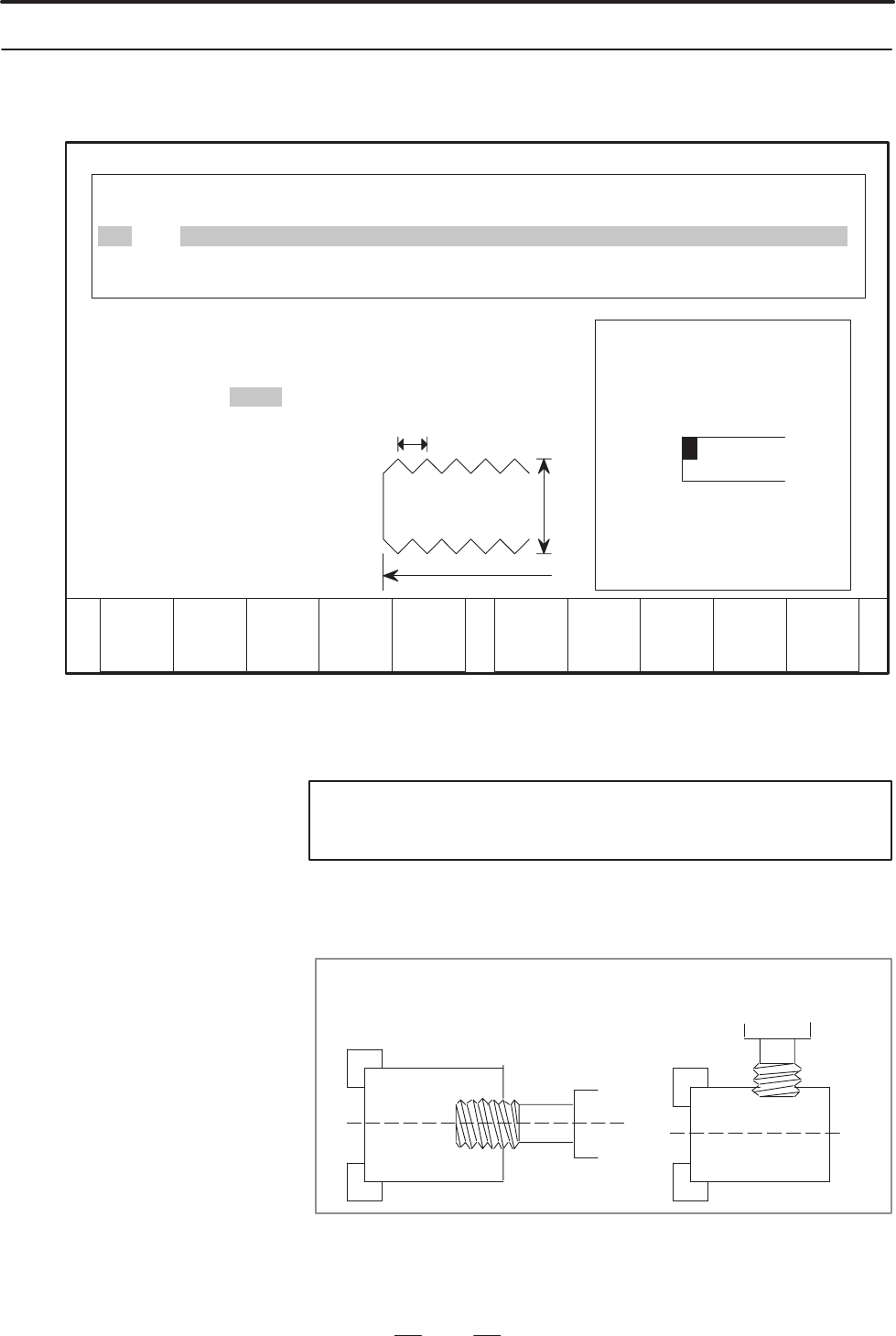

[CAP. :HEAD–L]
PT
*** TOOL DATA (1) ***
TOOL–ID NO. 651
TOOL TYPE TAP (HEAD–L)
TOOL DIREC FACE
MILLING/TRN COMMON
OUTPUT T 0303
REVOLUT.–D NORMAL
NOMINL–D DD=20.00
PITCH PT= 1.500
CUTTER LNGT TL=60.000
TL MATRIAL TM=CARBID
602#01 DRILL (F) T0808 DD 25.000 AC 180 TL 90.000
603#01 DRILL (S) T0909 DD 12.000 AC 150 TL 40.000
651#01 TAP (F) T0303 DD 20.000 PT 1.500 TL 60.000
701#01 CENTER (F) T0808 DD 2.000 AC 90 CD 2.000
751#02 ENDMILL (S) T0909 TR 12.000 EN 3 TL 40.000
DD
<
TOOL
FIGURE
TOOL
LIST
MENU
RETURN
FACE SIDE
CUT
TL
: Specify when a tool is registered.
: Specify by pressing the [HEAD–L] or
[HEAD–R] soft key.
NOTE
This is effective only for the 2–path lathe.
: Specify by pressing the [FACE] or [CROSS]
soft key.
(1) Tapping on end faces
(turning or C–axis machining, Y–axis
machining)
(2) Tapping on side faces
(C–axis machining, Y–axis
machining)
[CROSS]
: Specify by pressing one of the [TURN],
[MILLNG], and [COMMON] soft keys.
13.1.7
Tool Data for Tapping
TOOL TYPE
Tool post selection
TOOL DIREC
MILLNG/TRN
