1. MACHINING PROGRAMS FOR
2–AXES (X AND Z AXIS) LATHES
B–62444E–1/04
TYPES OF MACHINING
PROGRAMS
320
NOTE
7 When the depth of cut per pass becomes less than the
minimum depth of cut (set in parameter No. 9833), the depth
of cut is clamped to the specified minimum value, if a
constant depth of cut has been specified.

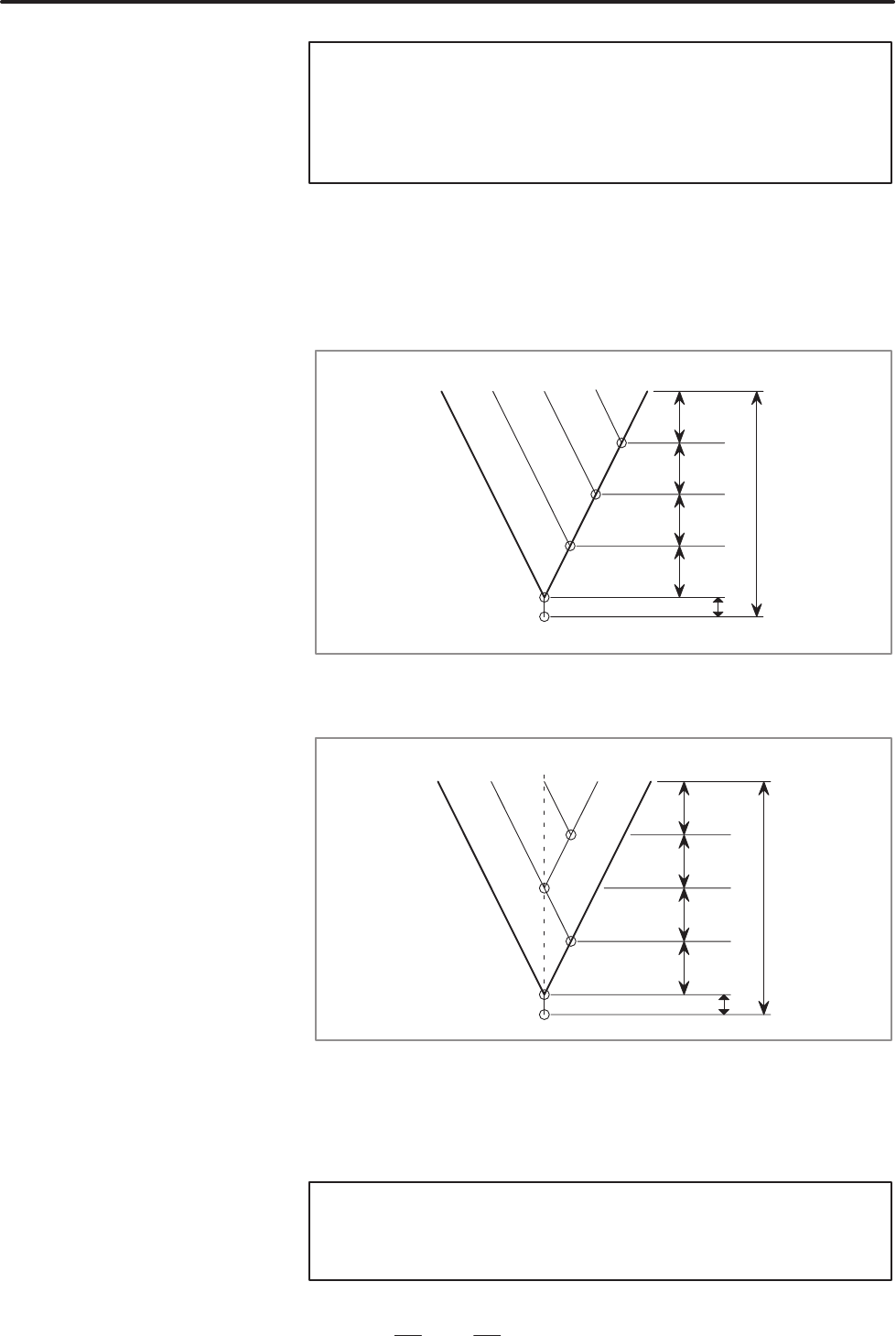

3. [AMNT STRGHT]: Constant amount of cut, both–edge cutting
The depth of cut per pass is the same as [AMNT SINGLE], but
straight cutting is performed along the center line of the tool.
4. [DEPTH SINGLE]: Constant amount of cut, single–edge cutting
u
Tool tip
A
D
H
D
D
D
5. [DEPTH BOTH]: Constant amount of cut, zigzag cutting
u
Tool tip
A
D
H
D
D
D
6. [DEPTH STRGHT]: Constant amount of cut, both–edge cutting
The depth of cut per pass is the same as [DEPTH SINGLE], but
straight cutting is performed along the center line of the tool.
NOTE
8 When a new threading process is created, [AMNT SINGLE]
is automatically set.
