A. PARAMETERS

B–62444E–1/04

APPENDIX

570

9830 CLSCRX

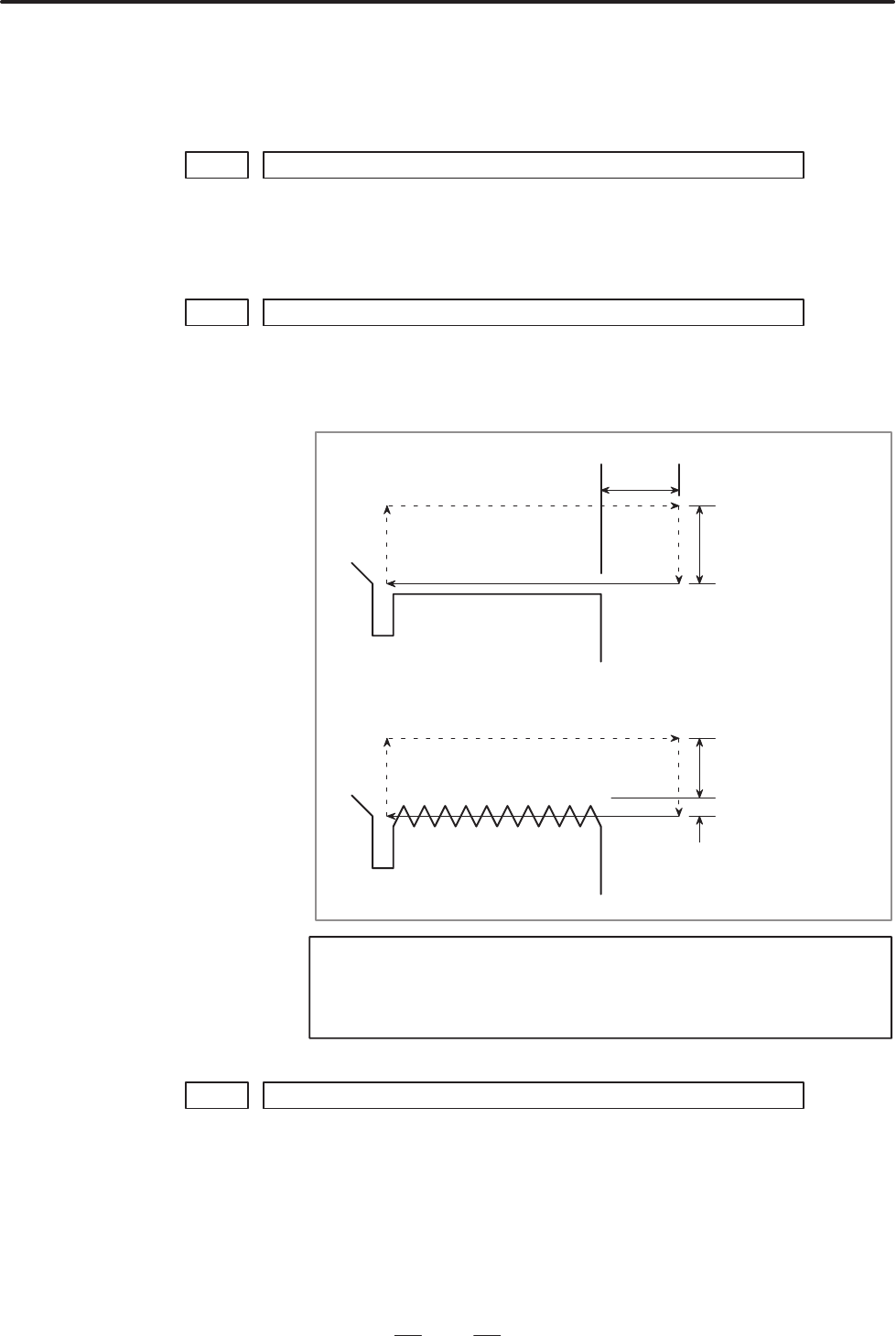

CLSCRX Clearance (diameter) along the X axis for threading

Setting range: 0 to 99999999 Increment: 0.001 mm

0.0001 inches

9831 CLSCRZ

CLSCRZ Acceleration distance along the Z axis for threading

Setting range: 0 to 99999999 Increment: 0.001 mm

0.0001 inches

CLSCRZ

Height of the

thread plus CLSCRX

D First threading

CLSCRX

D Last threading

Height of the

thread

NOTE

The length of a part where a threading cycle is performed

along the X axis remains unchanged.

9832 SCWCF

SCWCF Coefficient for the height of a thread

Setting range: 0 to 32767 Increment: 1/10000

The system automatically sets the height of the thread for process data

from the following formula:

Height of a thread = thread pitch × SCWCF/10000

Standard set values: 6495 for thread angle 60°

6403 for thread angle 55°

A.14

PARAMETERS FOR

THREADING
