7. 3 CUTTING CONDITIONS
The cutting conditions are divided in F.S.-Parameters and F.S.-
File. F.S.-Parameters are used to define data, additional to the
cutting conditions, like data for ’cutting speed’ and ’feedrate’
for 3 tool materials and up to 8 workpiece materials.
7. 3. 1 F.S. Parameter

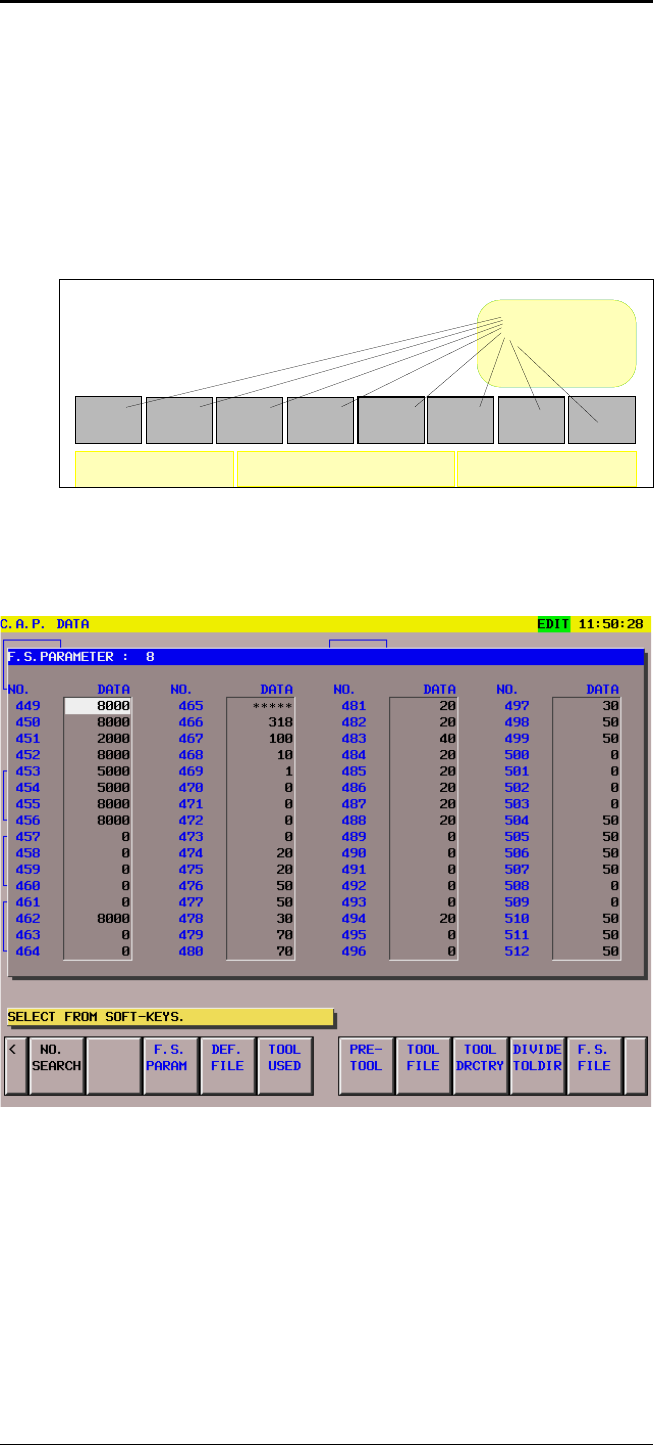

F.S.-Parameters No. 001 to 448 are not used at the moment.
Above parameters define the max. spindle speed for different
tool types. E.g. Parameter:
(Details, please see page 47)
8 Workpiece - Materials
3 Tool Materials
HIGH SPEED
CARBIDE
SPECIAL
ALUGG
GGG ST37 C-60 MNCR V2A CU
V = m / min
Tool-Name
F = mm / Rev
(Tooth)
Fig. 7. 1
Fig. 7. 2
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 44 -
