8. 3. Machining Condition (MILL)
8. 3. 1 Machining Condition (MILL-FACE MILL) : 1
After setting data in the ’Coefficient’ data table, cutting conditions
are input for the FACE MILL tools. Pushing the Softkey (2), Machi-
ning Condition table (FACE MILL) is selected. In this table softkeys
for several milling tools are available. Pushing the softkey (FACE
MILL), cutting speed and feedrates for FACE MILL tools, according
to different workpiece materials and tool materials can be input.
Data input in this screen:
FACE MILL, Roughing
•
Cutting Speed in m/min
•
Feedrate in mm/tooth
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

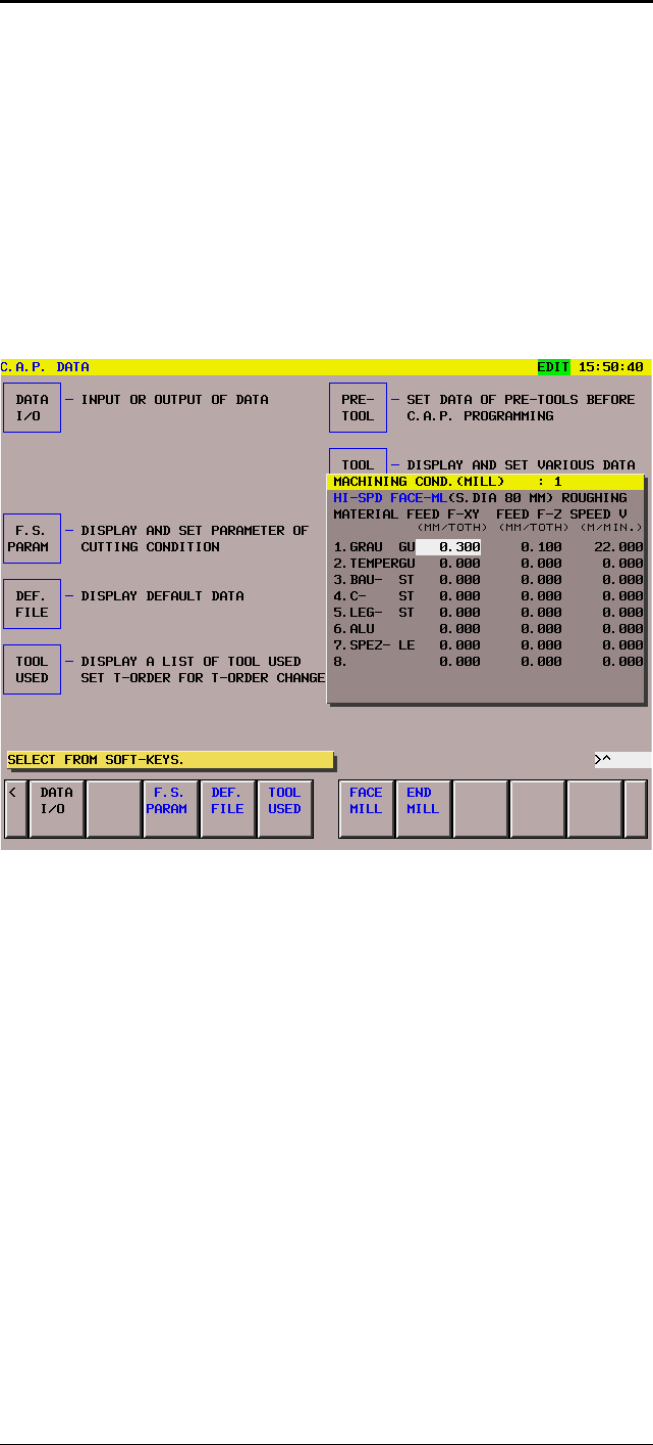

Fig. 8. 16
GEF #FL / escap-55-012000
GFKE-0041A-EN Cutting Conditions
- 65 -
