Super CAPi-M Data Setting Handbook Operation and maintenance handbook Page 72

Operation and maintenance handbook
8. 3. 2 Machining Condition (MILL-FACE MILL) : 2.
Pushing the Softkey (FACE MILL), the machining condition table
(FACE MILL) is selected. Pushing the softkey (FACE MILL), cutting
speed and feedrates for FACE MILL tools, according to different
workpiece materials and tool materials can be input.
Data input in this screen:
FACE MILL, Finishing
•
Cutting Speed in m/min
•
Feedrate in mm/tooth
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

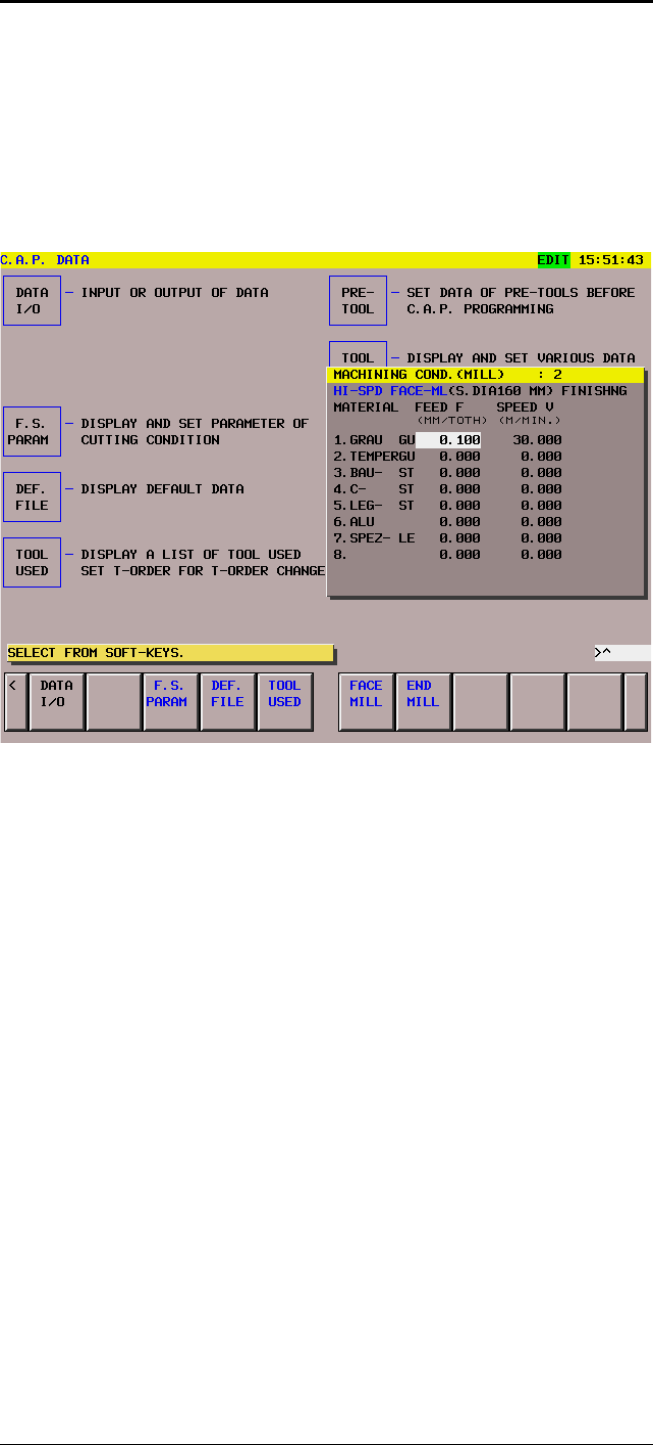

Fig. 8. 17
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 66 -
