Super CAPi-M Data Setting Handbook Operation and maintenance handbook Page 77

Operation and maintenance handbook
9 GRAPHIC SIMULATION
There are 2 different Graphic systems available, Path Graphic and
Solid Graphic. Both Graphics needs MEM mode to operate or the
option ’Background Graphic’. In case of ’Background Graphic’ the
graphic simulation can be used in any mode (Option).
9. 1. Path Graphic
9. 1. 1 Path Graphic Parameter
Using Soft Key ’GRAPH PARAM’, the Operator can select different
settings:
•
Plane selection, XY, YZ, ZY, etc.
•
Rotation Angle
•
Tilting Anle
•
Scale Factor
•
Blank Size
•
Tool Radius Compensation ON/OFF
•
Part Figure Display ON / OFF
•
Tool Figure Dipslay ON / OFF
•
Color Path
•
etc.

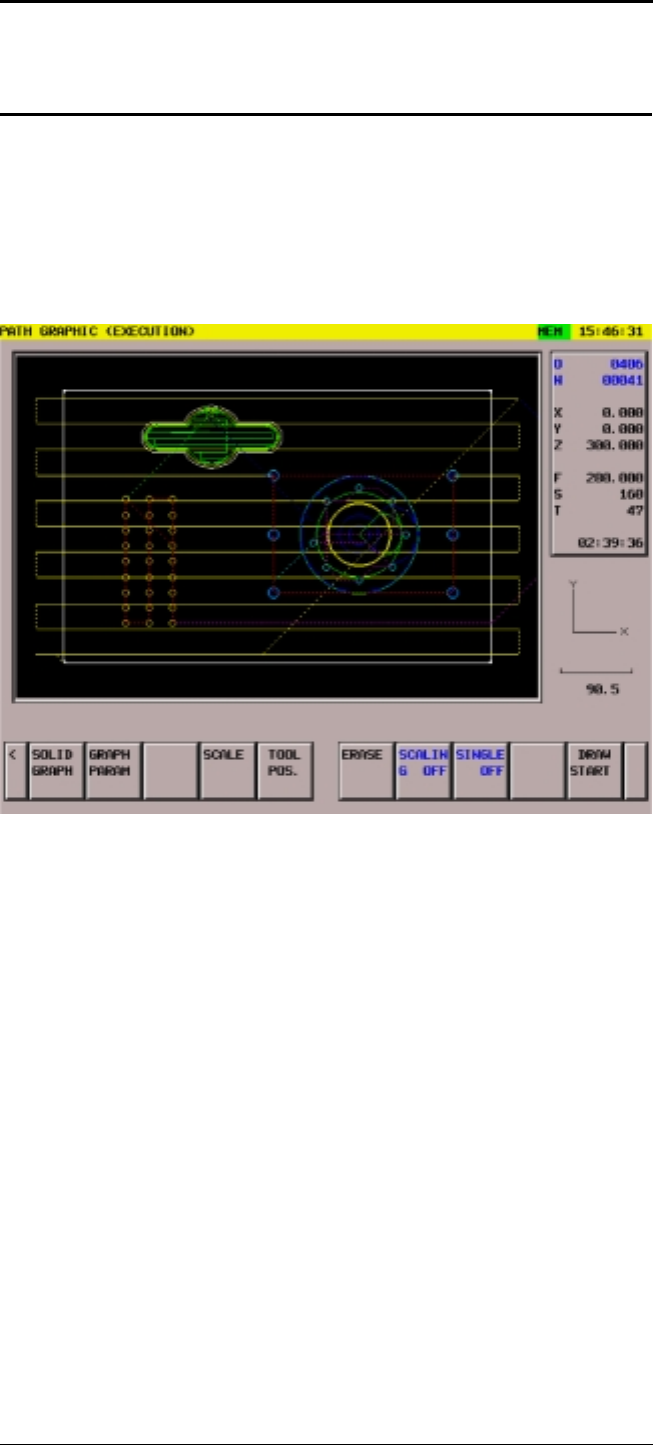

Fig. 9. 1
GEF #FL / escap-06-012000
GFKE-0041A-EN Data back up
- 71 -
