8. 2. 3 Machining Condition (HOLE-REAMER) : 1
Pushing the Softkey (REAMER), Machining Condition table (REA-
MER) is selected. Pushing the softkey (REAMER), cutting speed and
feedrates for REAMER tools, according to different workpiece ma-
terials and tool materials can be input.
Data input in this screen:
REAMER
•
Cutting Speed in m/min
•
Feedrate in mm/rev
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

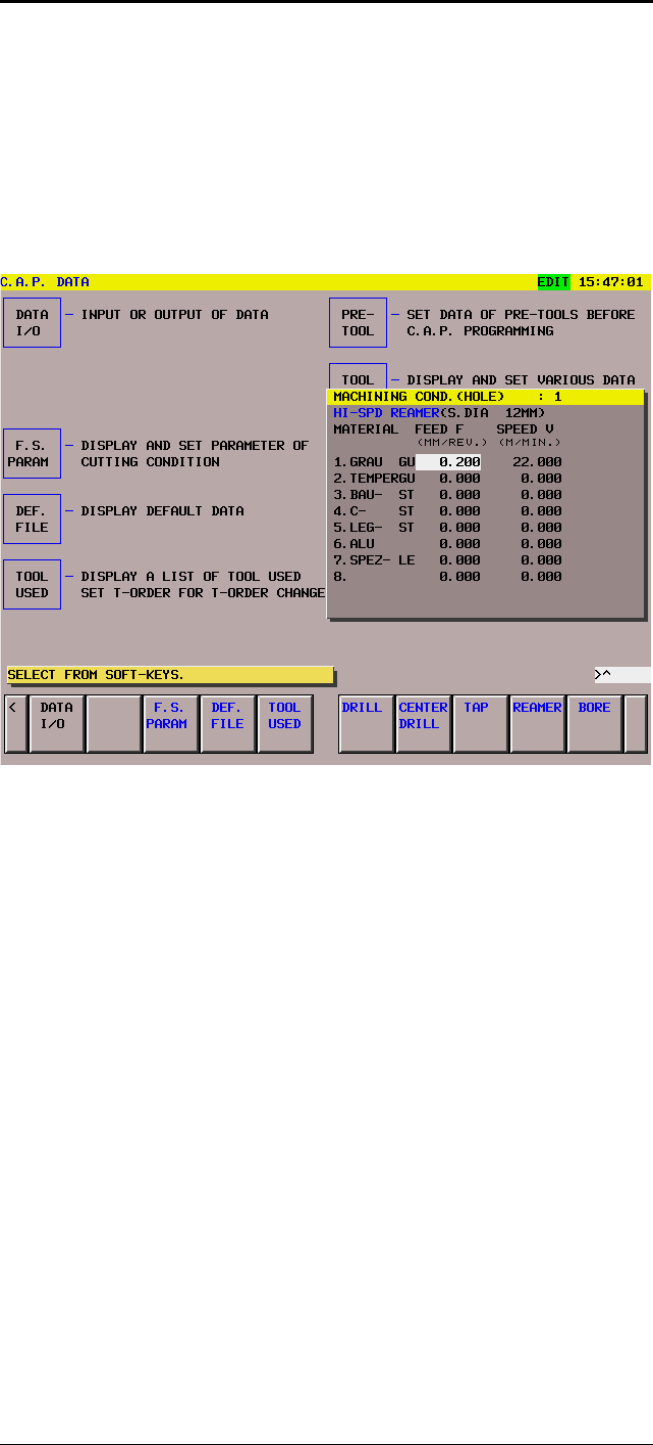

Fig. 8. 13
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 62 -
