8 F.S. File (Cutting Conditions)

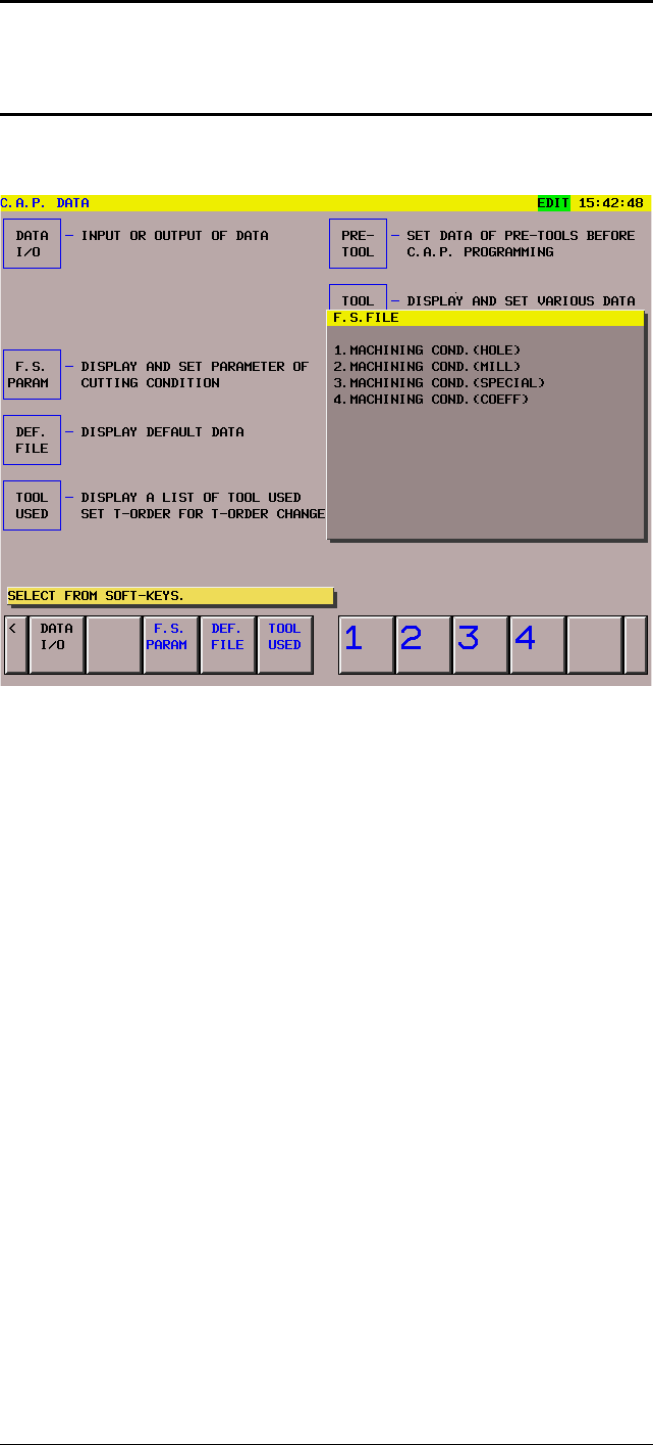

The ’New F.S.-File’ is selected by pushing softkey in C.A.P. Basic
Sreen. 4 Items can be selected by softkey:
•
1. Machining Condition Hole
•
2. Machining Condition Mill
•
3. Machining Condition Special
•
4. Machining Condition Coefficient
Every Condition has some detailed data input screens. In case of
’Machining Condition Hole’
1. Machining Condition Hole
- Drill
- Center Drill
- Tap
- Reamer
- Bore
2. Machining Condition Mill
- Face Mill
- End Mill
3. Machining Condition Special
- Chamfer
Fig. 8. 1
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 50 -
