8. 2. 2 Machining Condition (HOLE-TAP) : 1

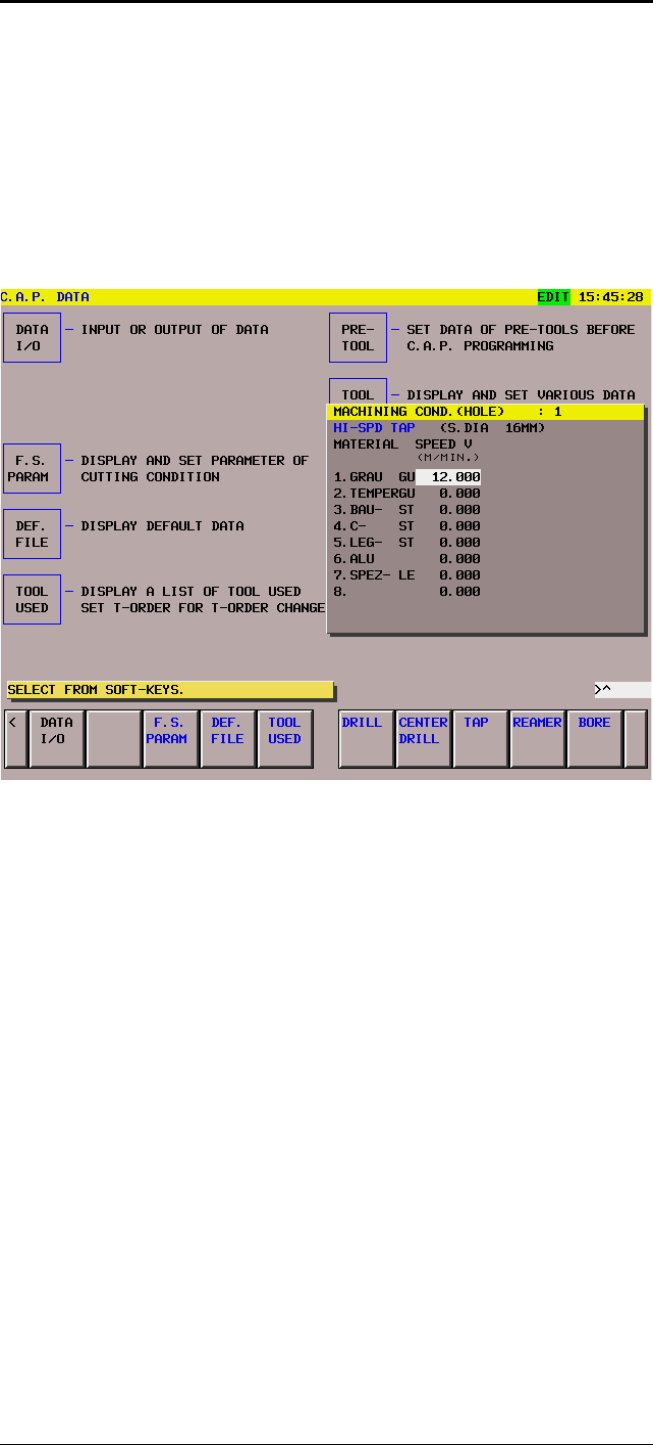

Pushing the Softkey (TAP), the Machining Condition table (TAP) is
selected. In this table Cutting speed only, according to different
workpiece materials and tool materials can be input. The feedrate will
be calculated automatically according to TAP PITCH, which is
inputed into the tool file.
Data input in this screen:
TAP
•
Cutting Speed in m/min
•
Pitch is set in Tool File
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.
Fig. 8. 12
GEF #FL / escap-55-012000
GFKE-0041A-EN Cutting Conditions
- 61 -
