8. 4. Machining Condition (SPECIAL)
8. 4. 1 Machining Condition (SPECIAL-CHAMFER) : 1
For SPECIAL tools no setting table ’Coefficient’ is available. Cutting
conditions are input for CHAMFER tools. Pushing Softkey (3), the
machining condition table (SPECIAL) is selected. In this table a
softkey for Chamfer tools is available. Pushing the softkey (CHAM-
FER), cutting speed and feedrates for CHAMFER tools, according to
different workpiece materials and tool materials can be input.
Data input in this screen:
CHAMFER
•
Cutting Speed in m/min
•
Feedrate in mm/tooth
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

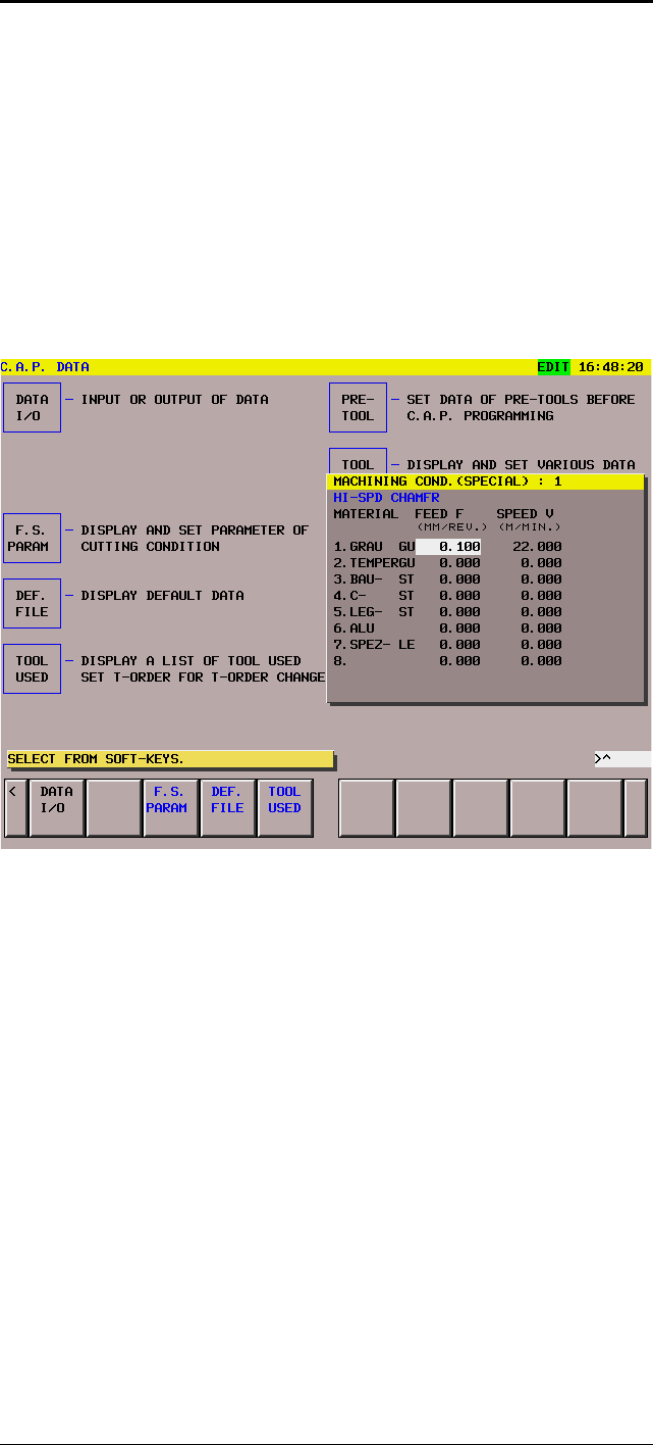

Fig. 8. 20
GEF #FL / escap-55-012000
GFKE-0041A-EN Cutting Conditions
- 69 -
Previous page
Next page
