FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
37 /

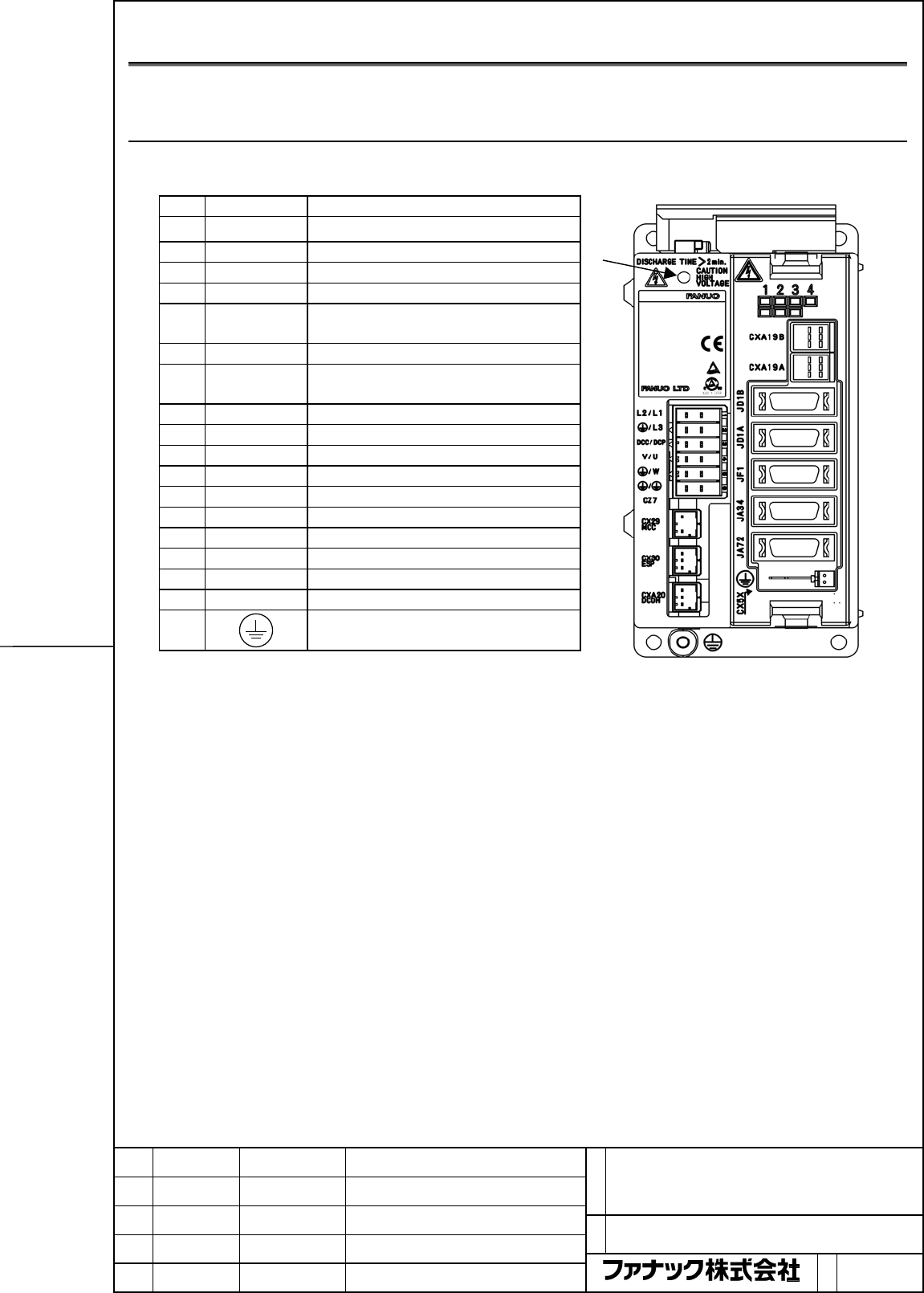

5.2 CONNECTOR LOCATION
5.2.1 SVM1-4i and SVM1-20i
No.
Name Remarks
1
DC link charge LED
2 CZ7-1 Main power input connector
3 CZ7-2 Discharge resistor connector
4 CZ7-3 Motor power connector
5 CX29
Connector for main power MCC control
signal
6 CX30 ESP signal connection connector
7 CXA20
Regenerative resistor connector
(for alarms）
8 LED Condition LED
9 CXA19B 24VDC power input
10 CXA19A 24VDC power output
11 JD1B I/O Link connector (From previous stage)
12 JD1A I/O Link connector (To next stage)
13 JF1 Pulsecoder connector
14 JA34 External pulse input connector
15 JA72 Built-in DI connector
16 CX5X Absolute pulsecoder battery
17 FG Terminal Grounding terminal of control unit
18
Tapped hole for grounding the flange
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(18)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
