FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
55 /

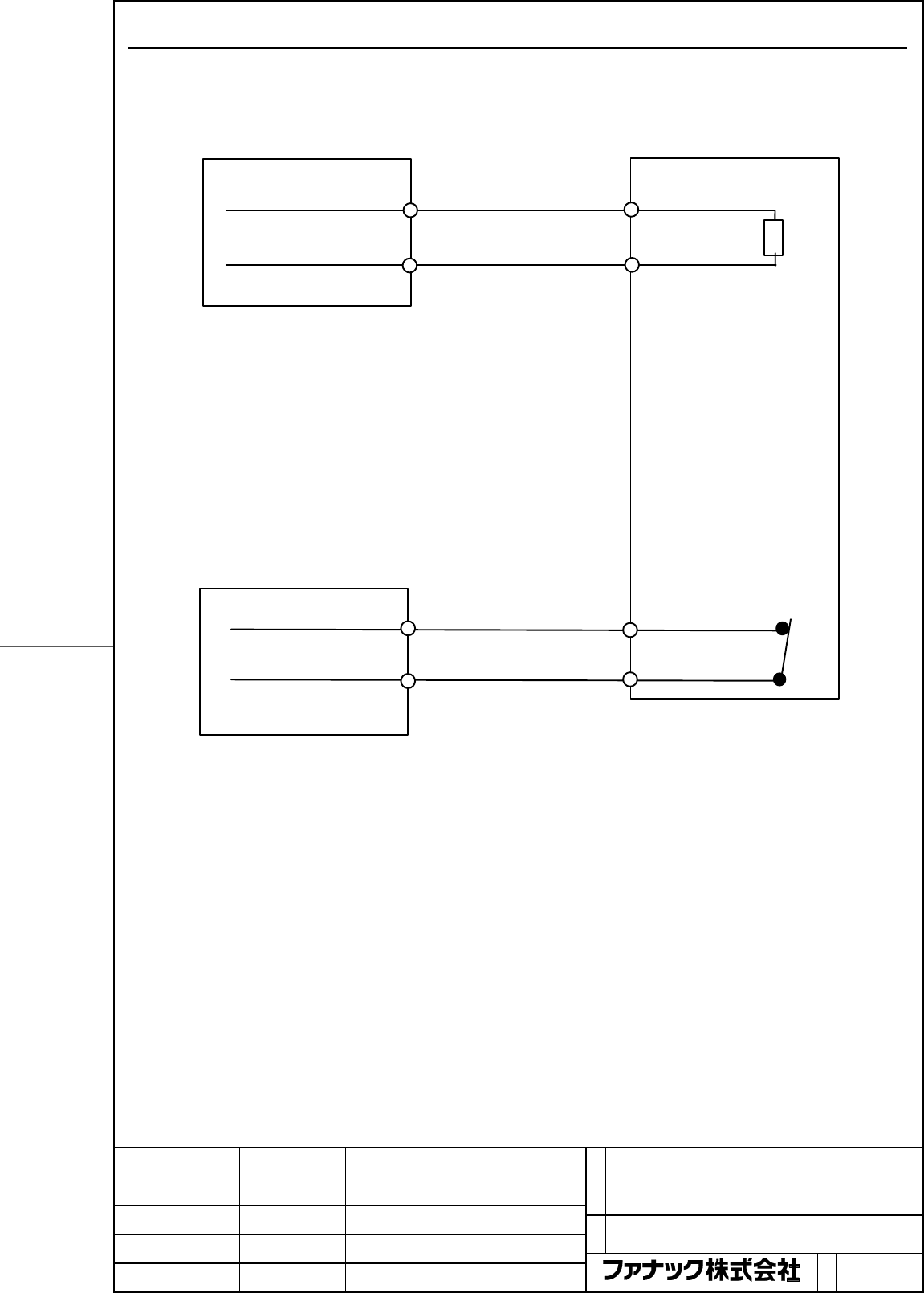

5.2.6.2 SVM1-40i and SVM1-80i
When a separated regenerative discharge resistor is used
β
i
SVM Separated regenerative discharge resisto
r
CZ6-B1 (RC)
CZ6-B2 (RE)
Housing : 3-917807-2
Contact : 316041-6
A
pplicable wire range: 3.5 to 5.5 mm
2
Manufacture : Tyco Electronics AMP
(TH1)
CXA20-2 (TH2)
CXA20-1
Cable specification:
Two-conductor polyvinyl heavy-duty power cable (JIS C3312),
Conductor size of 3.5 mm
2
,
Crimp terminal: 5.5-4
Cable specification:
Two-conductor polyvinyl heavy-duty power cable (JIS C3312),
Conductor size of 0.75 mm
2
,
Crimp terminal: 1.25-4
Housing : 1-1318120-3
Contact : 1318107-1
A
pplicable wire: 0.3 to 0.85 mm
2
Manufacture : Tyco Electronics AMP
