5.2.13.1 Connection when an A/B-Phase pulse generator of differential type is
used

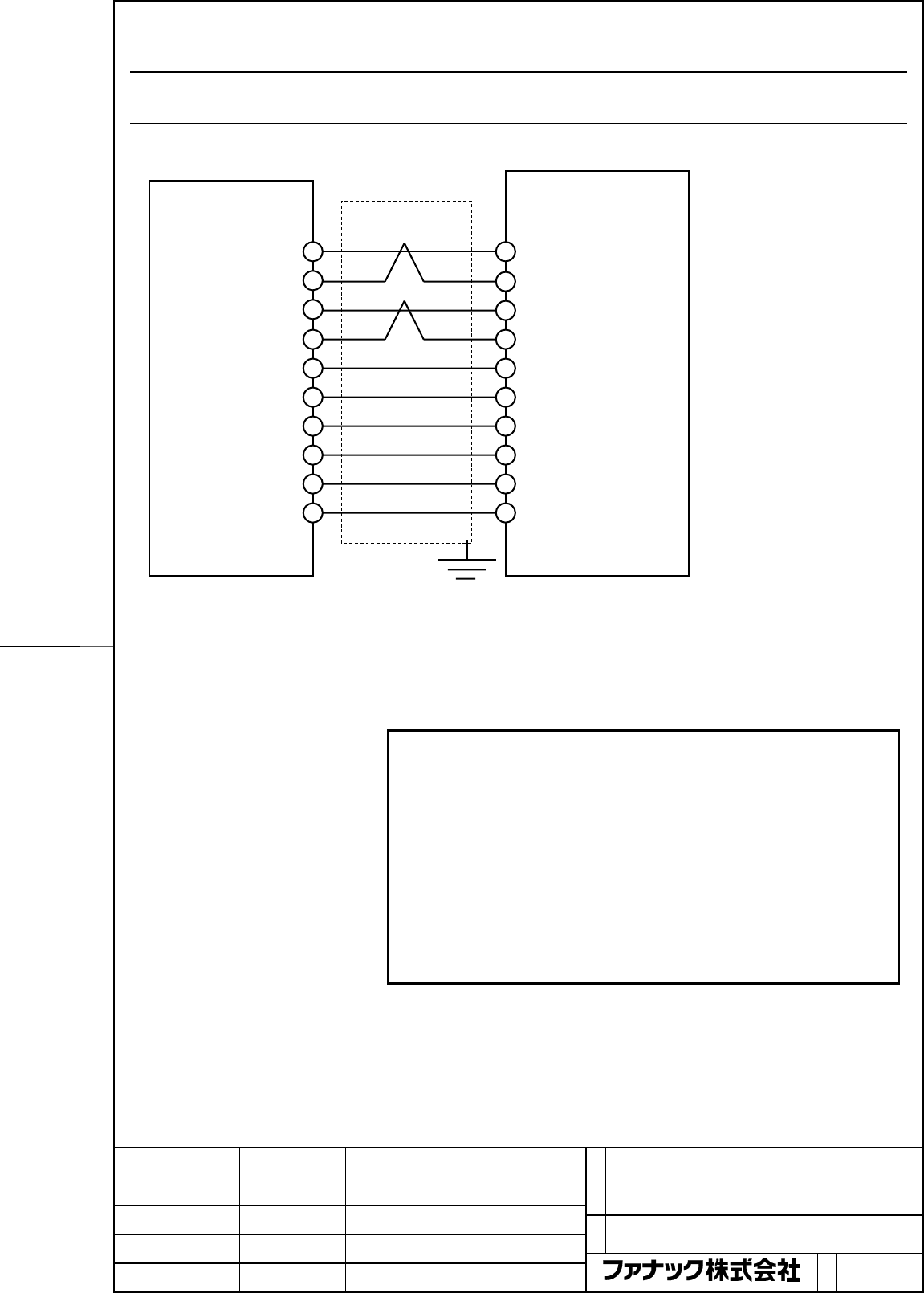

K22 Cable Connection
K22
External Pulse SVM
Generator JA34
PA (1) PA
*PA (2) *PA
PB (3) PB
*PB (4) *PB
+5V (9) +5V
+5V (18) +5V
+5V (20) +5V
0V (12) 0V
0V (14) 0V
0V (16) 0V
Connector : FI40-2015S (Hirose Electric)
Case : FI-20-CV (Hirose Electric)
Cable specification : Conductor 20/0.18
×6, 7/0.18×3 pairs
Recommended cable : A66L-0001-0286(#20AWG
×6 + #24AWG×6 + #24AWG×3
pairs)
NOTE
1 The servo unit can supply power to a unit requiring up to +5V,
0.35A. In this case, consider the power supply voltage drop
across the cable resistance.
2 Use the same twisted wire pair for the PA and *PA signals. Also
use the same twisted wire pair for the PB and *PB signals.
3 Do not make any connection to the pins other than those
shown above. Do not connect an unused conductor of the
cable.
4 Maximum wire length: 50m
