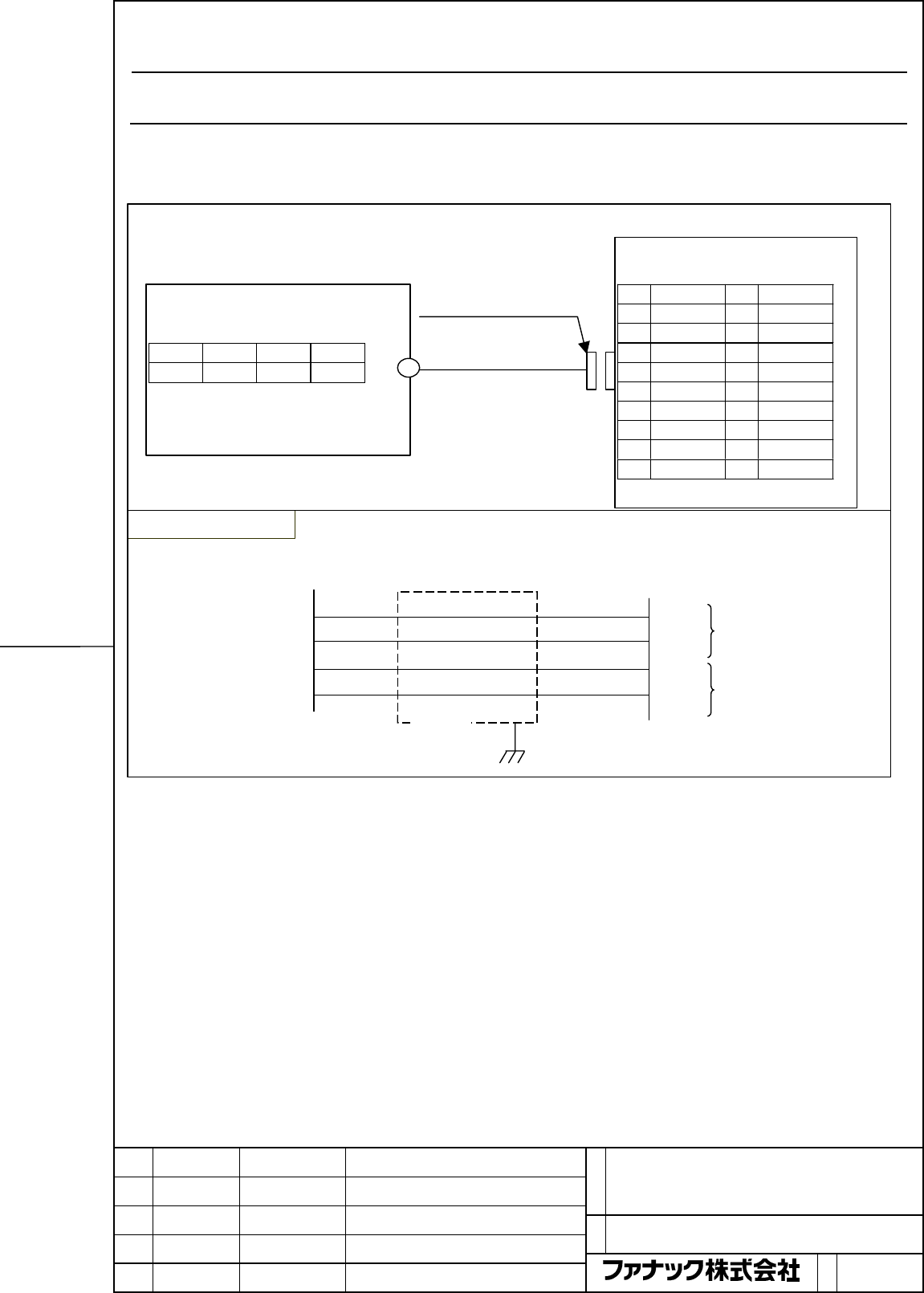

5.2.13.2 Connection when a manual pulse generator available from FANUC is
used
K23 Cable Connection
The K23 cable is a signal cable for connecting a manual pulse generator
with a manual pulse generator adapter (JA54).
Connector : FI40-2015S
Case : FI-20-CV
(M3 screw terminal)
+5V 0V A B
+5V 0V HA1 HB1
Manual pulse generator
Manual pulse generator adapter
K23
Cable connection(K23)
HA1
HB1
+5
V
0
V
A
B
+5V
0V
HA1
HB1
+5V
0V
Shield
JA54
(PCR-EV20MDT)
1HA1 11
2 HB1 12 0V
3 (HA2) 13
4 (HB2) 14 0V
5 15
6 16 0V
7 17
8 18 +5V
9 +5V 19
10
20 +5V
Manual pulse generator
1
2
9,18,20
12,14,16
JA54
#24AWG
#20AWG
Recommended wire : A66L-0001-0286 (#20AWG × 6 + #24AWG × 3 pairs)
Recommended connector (on the JA54 side): A02B-0120-K303
Recommended cable :A02B-0259-K821 (7 m).
When using the cable, rewrite the connector name.
The maximum allowable length is 50 m. However, another limitation based on a
power supply voltage drop is imposed as described below.
Limitation based on a power supply voltage drop
Suppress the power supply voltage drop due to cable resistance to 0.2V or less
(sum of the 0V and 5V lines).
For calculation, assume that the power supply current of the manual pulse
generator is 0.1A.
When making a calculation, include the length of the K24 cable in the cable length.
