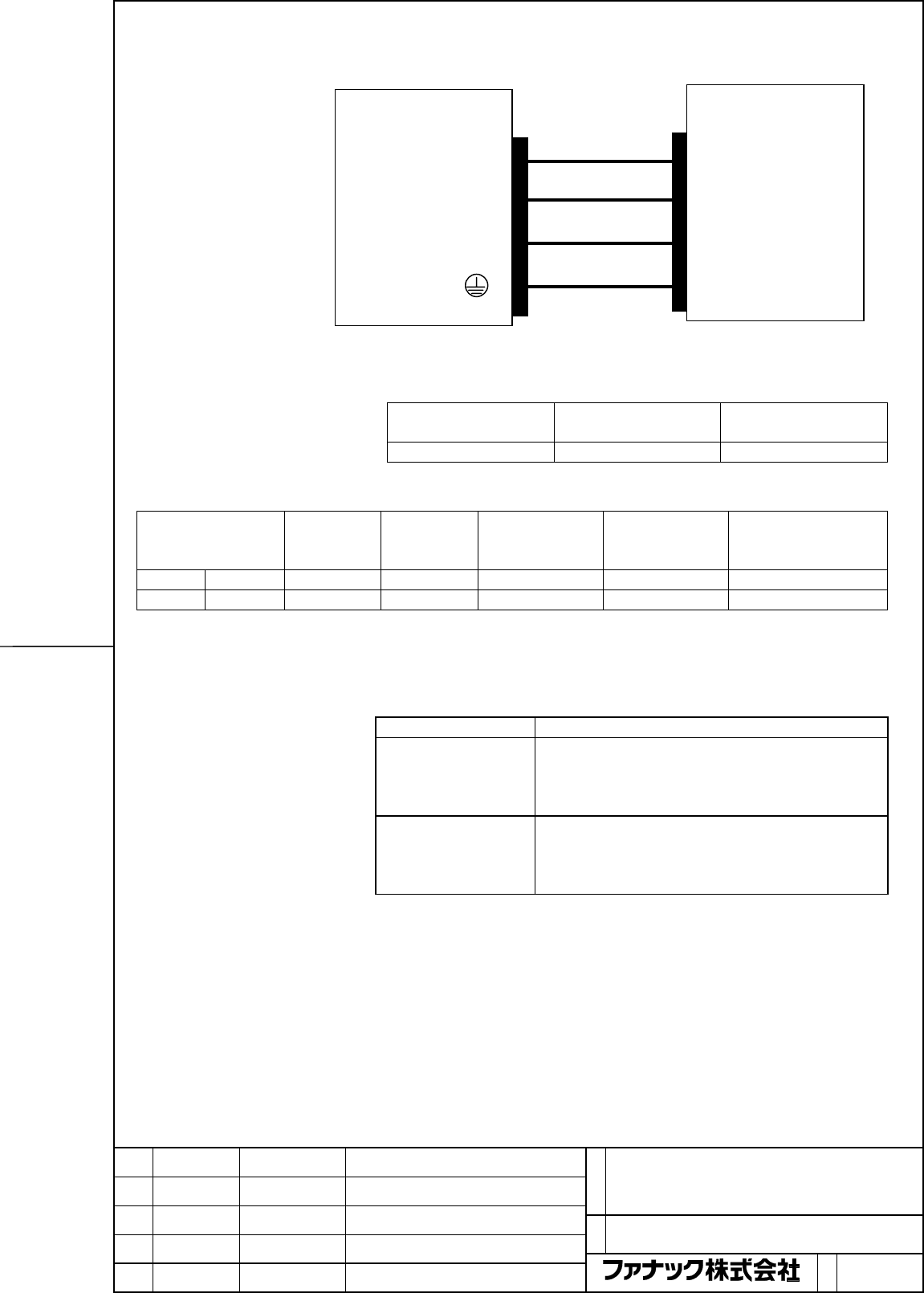

FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
50 /
(ｂ) SVM1-40i, SVM1-80i
[Receptacle housing]
Use the following receptacle housing
.
Manufacturer-defined
model
Specification of the
key
Manufacture
2-917807-2 YY Tyco Electronics AMP
[Receptacle contact]
Rectangle contact
model number
Conductor
size
(mm
2
)
Conductor
size
AWG
Insulation outer
diameter (mm)
Manual tool
model number
Manufacture
S size 316040-6 1.25–2.2 16/14 3.0-3.8 234170-1 Tyco Electronics AMP
M size 316041-6 3.5–5.5 12/10 4.0-5.2 234171-1 Tyco Electronics AMP
[Connector and tool ordering information]
Connectors (including housings and contacts) and tools can be
purchased directly from Tyco Electronics AMP. They can be ordered
as options also from FANUC as listed below.
Ordering number Description
A06B-6110-K202#YYS
Housing : YY key 2-917807-2 (1pcs.)
Contact : S size 316040-6 (4pcs.)
Applicable wire diameter : 1.25-2.20mm
2
, AWG16/14
Applicable tool : 234170-1 (not included in this kit)
A06B-6110-K202#YYM
Housing : YY key 2-917807-2 (1pcs.)
Contact : M size 316041-6 (4pcs.)
Applicable wire diameter : 3.50-5.50mm
2
, AWG12/10
Applicable tool : 234171-1 (not included in this kit)
β i Servo amplifier
CZ5 (B1) U
CZ5 (A1) V
CZ5 (B2) W
CZ5 (A2)
Motor
U
V
W
GND (Body)
Previous page
Next page
