FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
67 /

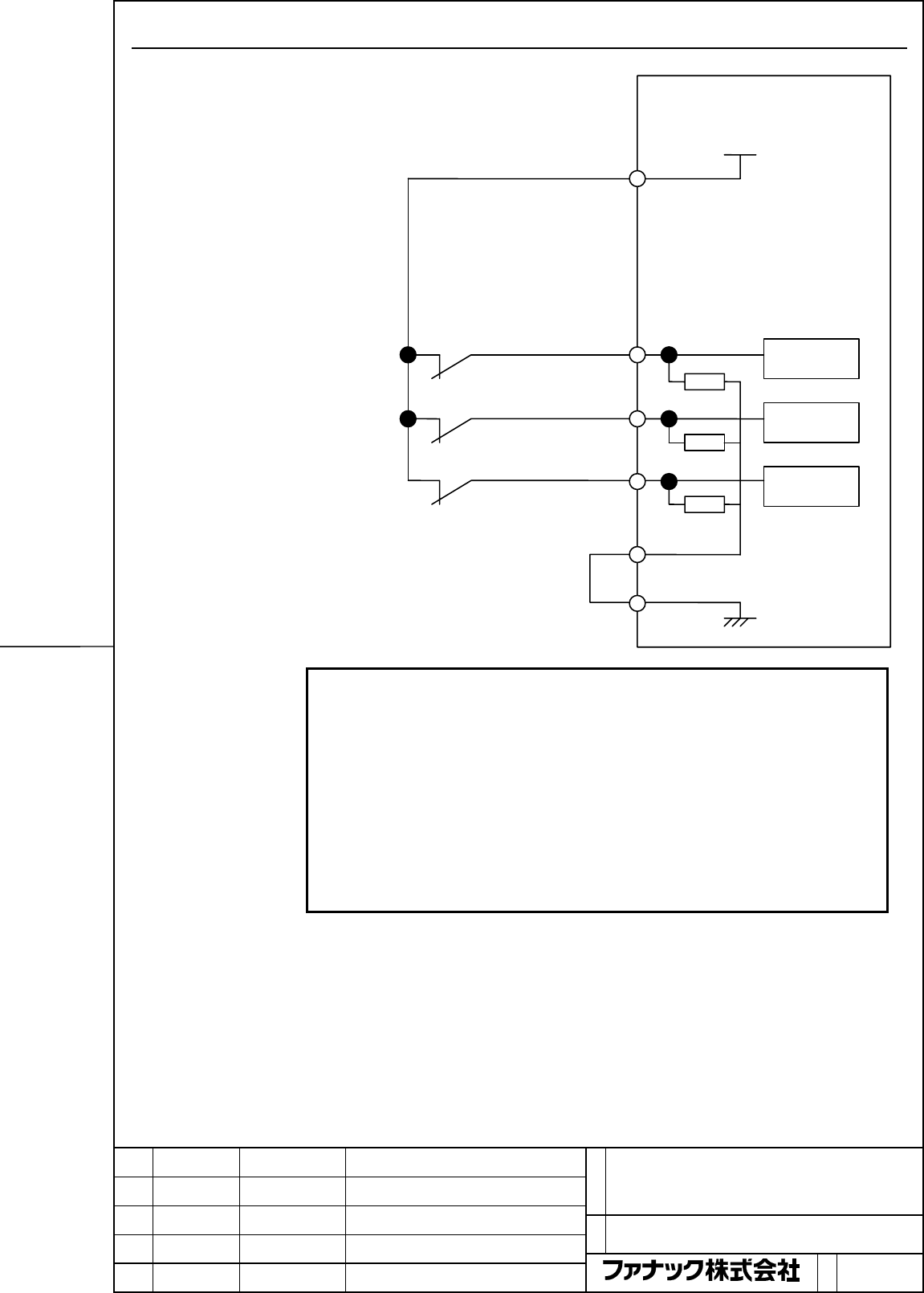

5.2.12.3 Signal connection with the Power Magnetics Cabinet
Filter and
receiver
Filter and
receiver
Filter and
receiver
Interlock signal input
(Deceleration signal input for reference
position return)
SVM
+24V
JA72
(10),(19)
Positive overtravel
signal input
*+OT (7)
*+OT
Negative overtravel
signal input
(8)
+24V
(6)*RILK
DIC (11)
0V (12, 14, 16)
NOTE
1 Use cable (with a shield on the outside) for Cable K21.
2 Use wire having a size of 7/0.18 (0.18mm
2
) for 0V, +24V, and DIC.
3 Do not make any connection to the pins other than those shown above.
Do not connect an unused conductor of the cable.
4 The above diagram is an example of a configuration with 24V common.
For a configuration with 0V common, connect DIC (JA72-11) to +24V
(JA72-10, 19), and the stage ahead of each switch to 0V (JA72-12,14,16)
5 Within 100 ms after emergency stop cancellation, turn on the external
magnetic contactor inserted into the power input of the SVM.
