FANUC SERVO AMPLIFIER ßi series I/O Link option Additional Manual Page 44

Additional Manual
A
-77223E/02
図
番
名
称
ペ
｜
ジ
変更内容 設計 年月日
版
FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
44 /

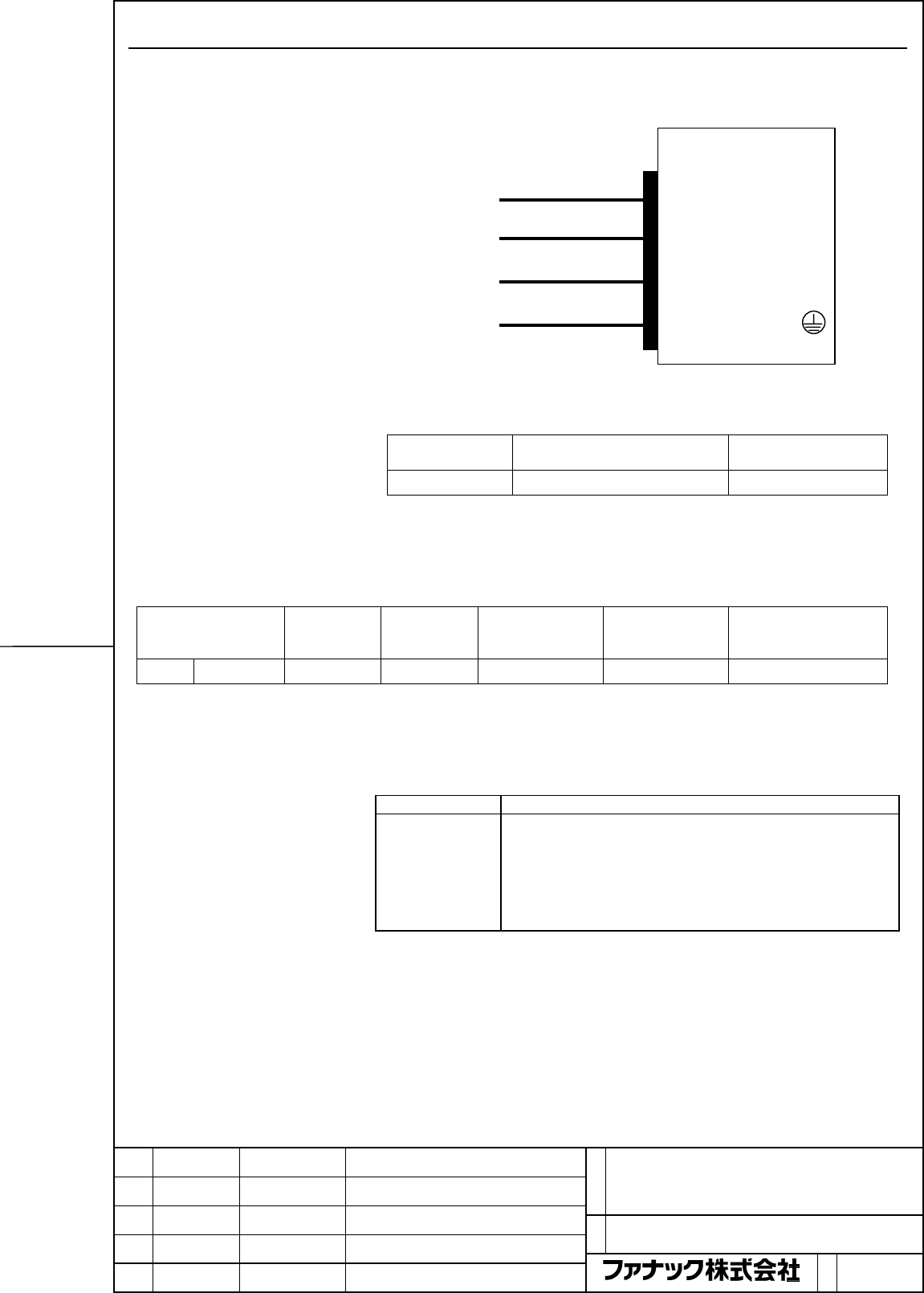

5.2.4.1 Details of connectors
(a) SVM1-4, SVM1-20
[Receptacle housing]
Use the following receptacle housing.
Manufacturer-
defined model
Specification of the key Manufacture
175363-3 Incorrect-insertion prevent key Tyco Electronics AMP
[Receptacle contact]
Two receptacle contact types are available, so as to support different
conductor diameters. Be sure to select the receptacle contact that
matches the servo axis you use.
Rectangle contact
model number
Conductor
size
(mm
2
)
Conductor
size
AWG
Insulation outer
diameter (mm)
Manual tool
model number
Manufacture
L size 1-175218-2 0.5- 1.25 20/18/16 1.8-2.8 91558-1 Tyco Electronics AMP
[Connector and tool ordering information]
Connectors (including housings and contacts) and tools can be
purchased directly from Tyco Electronics AMP. They can be ordered
as options also from FANUC as listed below.
Ordering number Description
A06B-6130-K200
Housing : Incorrect-insertion prevent key 175363-3 (1pcs.)
Incorrect-insertion prevent key 1318095-2 (1pcs.)
Contact : L size 1-175218-2 (10pcs.)
Applicable wire diameter:
0.5-1.25mm
2
, AWG20/18/16
Applicable tool: 91558-1 (not included in this kit)
Βi Servo amplifier
CZ7 (B1) Ｌ1
CZ7 (A1) L2
CZ7 (B2) L3
CZ7 (A2)
