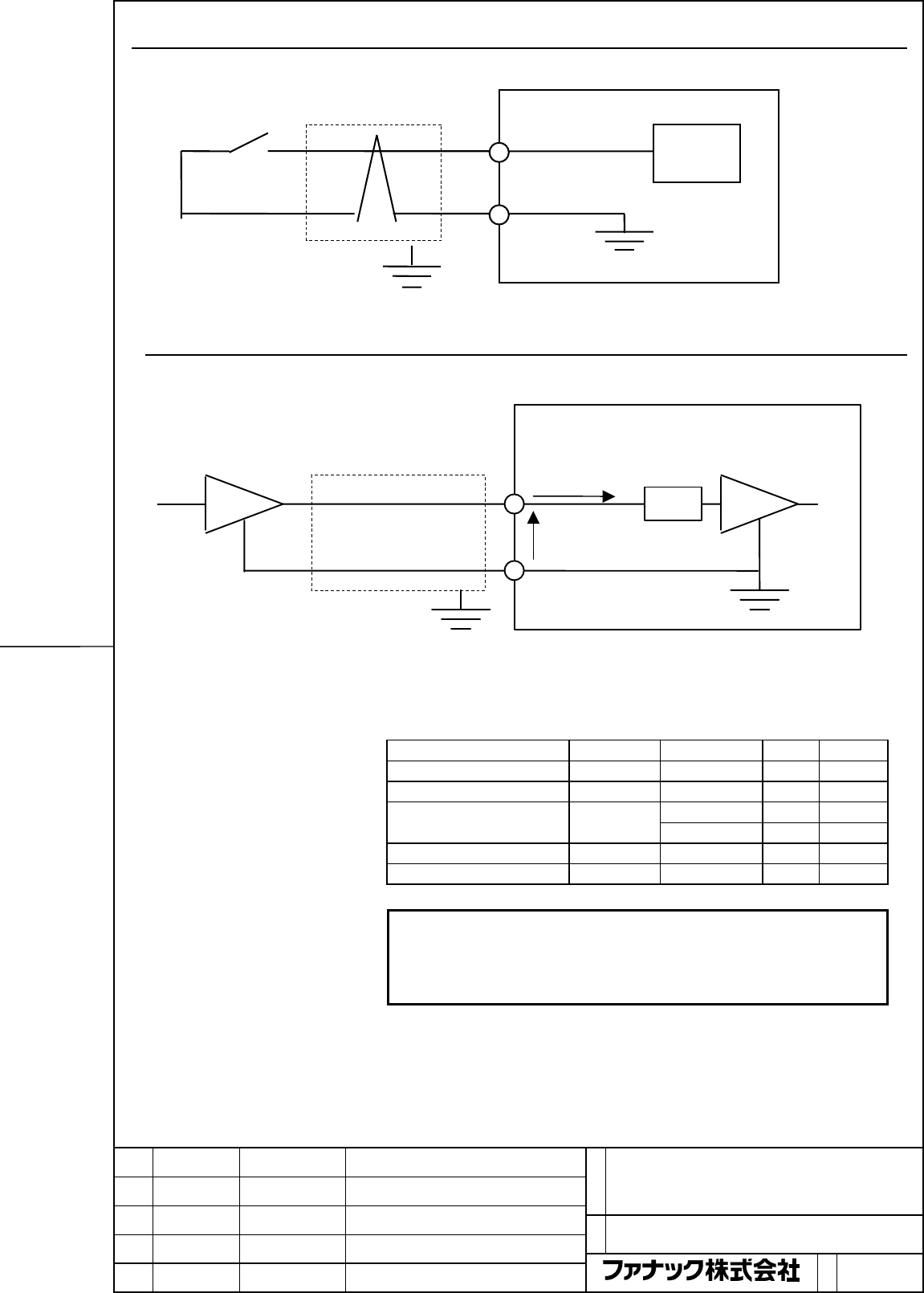

5.2.12.4 Skip signal interface
SVM
JA72
HDI (15)
0V (12,14,16)
High-Speed Skip Signal Input Specification
Circuit configuration
VH / VL
IiH / IiL
Driver
Shield
Filter
Receiver
SVM
Absolute maximum rating
Input voltage range Vin: -3.6V to +13.6V
Input characteristics
Item Symbol Rating Unit Remarks
High-level input voltage VH 3.6 to 11.6 V
Low-level input voltage VL 0 to 0.55 V
2 max mA Vin=5V
High-level input current IiH
11 max mA Vin=10V
Low-level input current IiL -8.0 max mA Vin=0V
Pulse width of input signal 20 min µs
NOTE
For IiH and IiL, the plus algebraic sign indicates the current
that flows into the receiver, while the minus algebraic sign
indicates the current that flows out from the receiver
.
