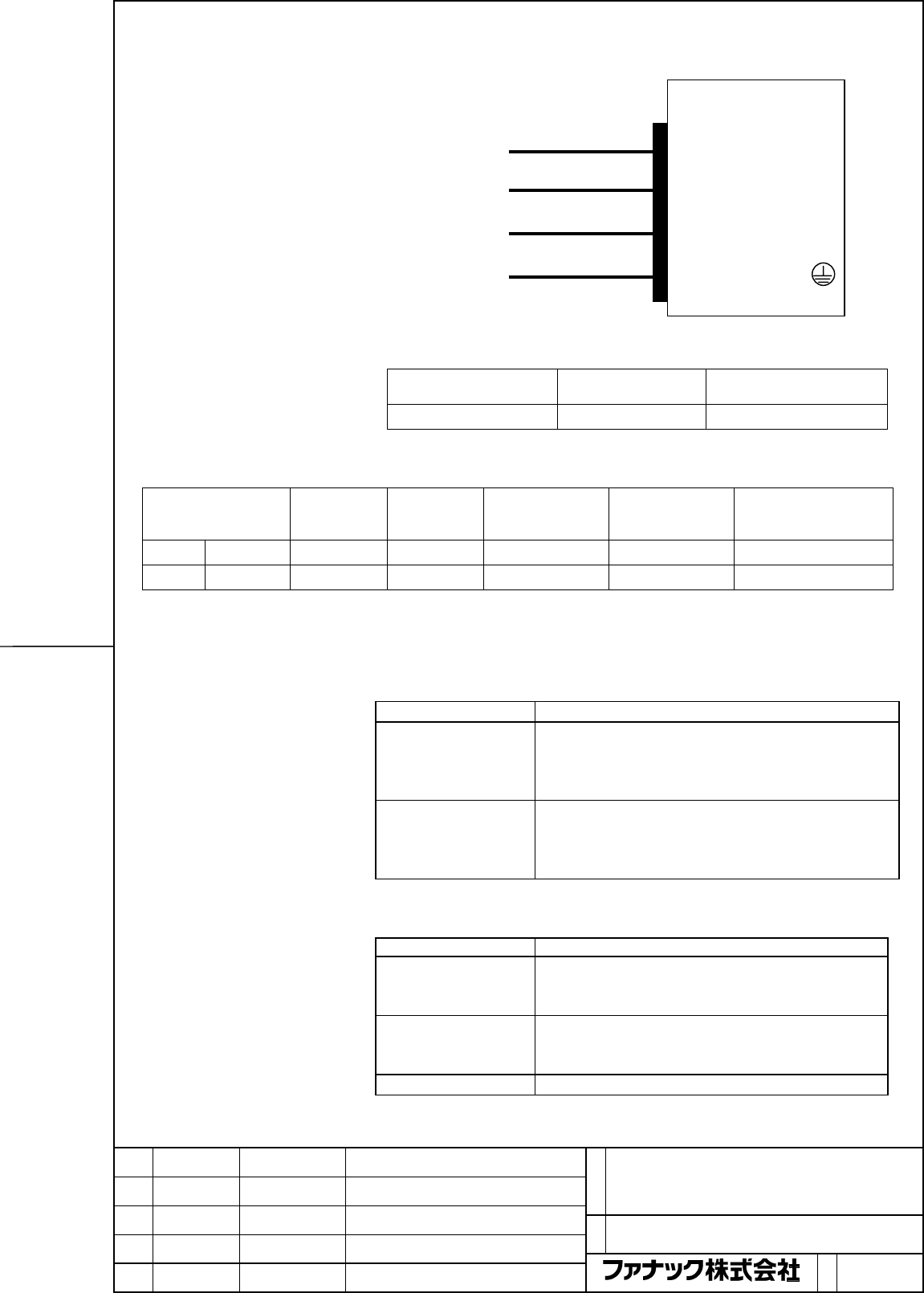

FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
45 /
(b) SVM1-40, SVM1-80
[Receptacle housing]
Use the following receptacle housing.
Manufacturer-defined
model
Specification of
the key
Manufacture
1-917807-2 XX Tyco Electronics AMP
[Receptacle contact]
Rectangle contact
model number
Conductor
size
(mm
2
)
Conductor
size
AWG
Insulation outer
diameter (mm)
Manual tool
model number
Manufacture
S size 316040-6 1.25 – 2.20 16/14 3.0-3.8 234170-1 Tyco Electronics AMP
M size 316041-6 3.50 – 5.50 12/10 4.0-5.2 234171-1 Tyco Electronics AMP
[Connector and tool ordering information]
Connectors (including housings and contacts) and tools can be
purchased directly from Tyco Electronics AMP. They can be ordered as
options also from FANUC as listed below.
Ordering number Description
A06B-6110-K200#XXS
Housing : XX key 1-917807-2 (1pcs.)
Contact : S size 316040-6 (4pcs.)
Applicable wire diameter : 1.25-2.20mm
2
, AWG16/14
Applicable tool: 234170-1 (not included in this kit)
A06B-6110-K200#XXM
Housing : XX key 1-917807-2 (1pcs.)
Contact : M size 316041-6 (4pcs.)
Applicable wire diameter : 3.50-5.50mm
2
, AWG12/10
Applicable tool : 234171-1 (not included in this kit)
[Crimping tool]
Ordering number Description
A06B-6110-K220#D5S
Applicable tool : 234170-1
Contact : S size 316040-6
Applicable wire diameter : 1.25-2.2mm
2
, AWG16/14
A06B-6110-K220#D5M
Tool : 234171-1
Contact : M size 316041-6
Applicable wire diameter: 3.50-5.50mm
2
, AWG12/10
A06B-6110-K220#D5R Extractor : 409158-1
Βi Servo amplifier
CZ4 (B1) L1
CZ4 (A1) L2
CZ4 (B2) L3
CZ4 (A2)
