7. Emergency stop circuit
The emergency stop button and the enabling switch on the handy machine operator’s panel are parts
of emergency stop circuit in this system. CNC and servo amplifier must be connected this emergency
stop circuit. In the case of detachable connection, the emergency line is bypassed at the connection

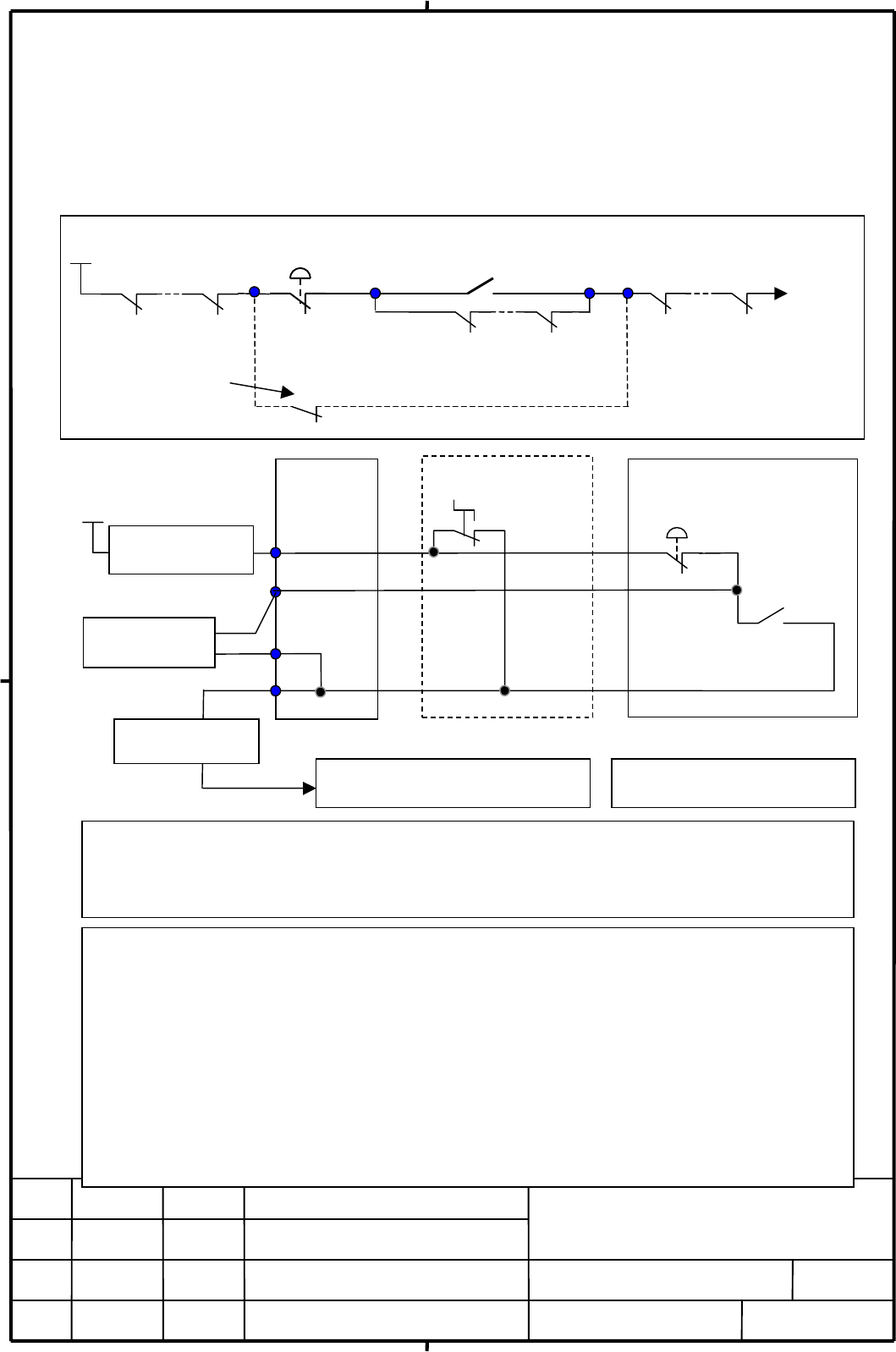

panel. The total connection diagram is as follows. Additional contact of the emergency stop button
and the enabling switch are provided. So the function of emergency stop is not lost if one contact
breaks down.
Note
The state of the emergency stop button and the enabling switch on the handy machine
operator’s panel can be read by PMC ladder diagram. But emergency stop of CNC is not
occurred with this signal on I/O Link. Emergency stop of CNC is occurred by DI of CNC.
Notice
1. When an operator controls machine tool with handy machine operator’s panel, the operation
must be done under the condition that CNC and servo amplifier can be stopped with the
emergency stop button on the handy machine operator’s panel.
2. When an operator controls machine tool with handy machine operator’s panel and there is
a possibility that the operator meet a dangerous situation, the operation must be done
under the condition that CNC and servo amplifier can be stopped with the enabling switch
on the handy machine operator’s panel.
3. The contact and the additional contact of the emergency stop button and the enabling
switch must be always used.
4. In the case of detachable connection, handy machine operator’s panel must be removed from
the connection panel and be put away, when machine tool is not operated with it.
24V
Emergency stop
button on the handy
machine operator’s
p
anel
Enabling switch button
on the handy machine
operator’s panel
Enabling switch ON/OFF circuit,
example opening the protection cover /
enter in the fence /switch on the main
operator’s panel
Emergency
stop circuit
upper step
Emergency
stop circuit
lower step
To CNC
servo
amplifier
● Terminal output
of Interface unit
Bypass with
detachable connection
switch on the
connection panel
Safety relay for input DI of CNC and
emergency stop of servo amplifier
Interface
unit
Connection panel
Handy machine
operator’s panel
24V
Enabling switch
ON/OFF circuit
Detachable
connection
switch
Emergency stop button
Enabling
switch
Emergency stop
circuit lower ste
p
Emergency stop
circuit upper step
Maximum electric current of
emergency stop line -> 200mA
