7.COORDINATE SYSTEM NC FUNCTIONS B-63322EN/03

- 94 -

7.2.2 Setting Workpiece Coordinate System (G54 to G59)

Six workpiece coordinate systems can be set. These six systems are

decided by setting the distances of each axis from the machine zero

point to the zero points of the coordinate systems.

Workpiece zero point offset value can be selected in three ways.

(1) Using CRT/MDI panel

(2) Using program

G10L2P

Using custom macro

One of six coordinate systems G54 to G59 can be selected.

Six workpiece coordinate systems can be shifted by a specified value

(common workpiece zero point offset value)

Format

G54 ……………Workpiece coordinate system 1

G55 ……………Workpiece coordinate system 2

G56 ……………Workpiece coordinate system 3

G57 ……………Workpiece coordinate system 4

G58 ……………Workpiece coordinate system 5

G59 ……………Workpiece coordinate system 6

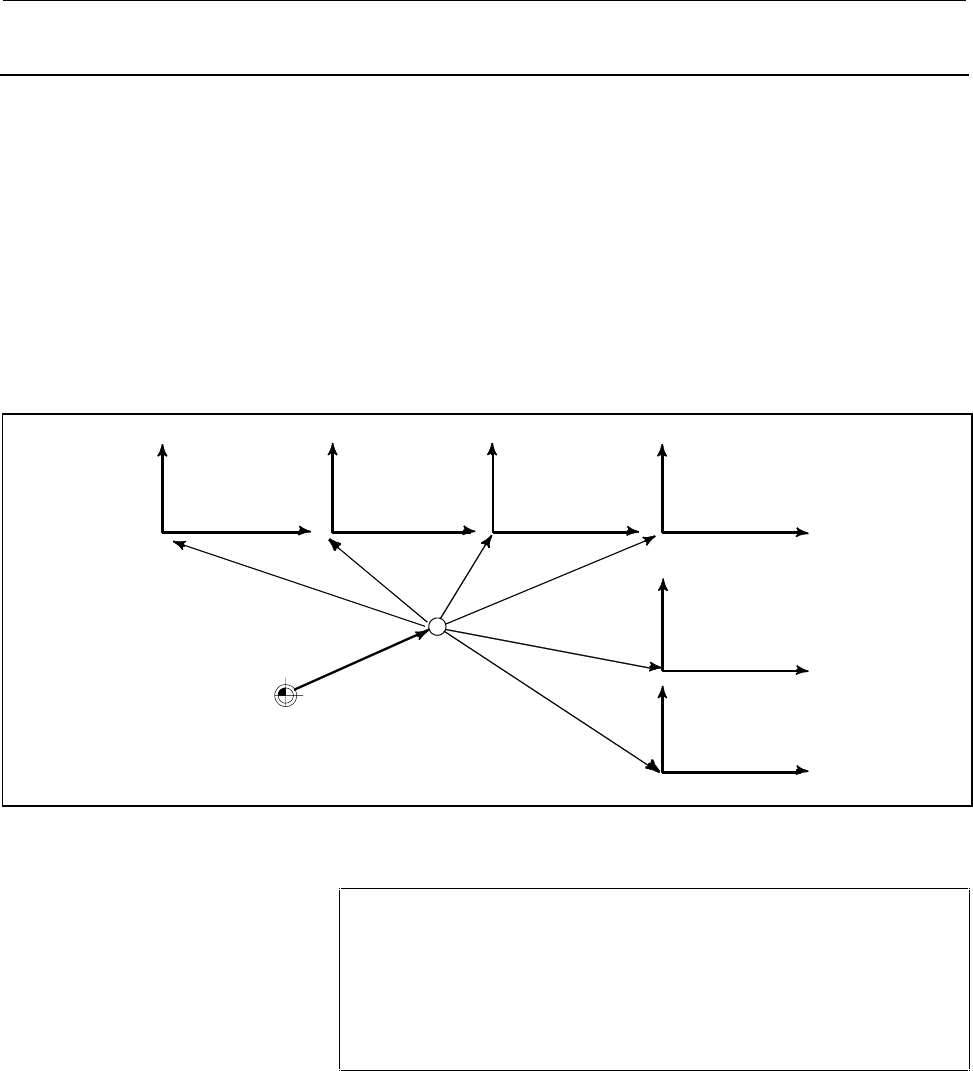

Workpiece

coordinate system 1

(G54)

Workpiece

coordinate system 2

(G55)

Workpiece coordinate

system 3

(G56)

Workpiece coordinate

system 4

(G57)

Workpiece coordinate system 5

(G58)

Workpiece coordinate system 6

(G59)

ZOFS2

ZOFS3

ZOFS4

ZOFS5

ZOFS1

ZOFS6

Machine zero point

EXOFS : Common workpiece zero point offset value

ZOFS1 to ZOFS6 : Workpiece zero point offset value

EXOFS
