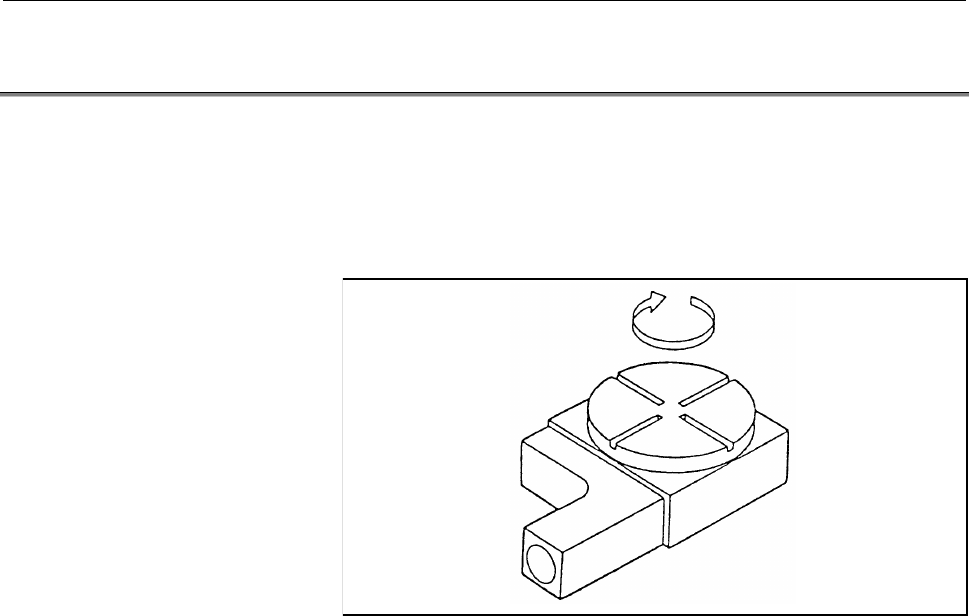

13.6 INDEX TABLE INDEXING FUNCTION

By specifying indexing positions (angles) for the indexing axis (one

arbitrary axis), the index table of the machining center can be indexed.

To command for indexing, an indexing angle is only to be specified

assigned for indexing. It is not necessary to command the exclusive M

code in order to clamp or unclamp the table and therefore programming

will become easy.

- Indexing axis and related command

The name of the index axis is selected from A, B, C, X, Y, Z, U, V, and

W, according to parameter setting. The following description assumes

that the B axis is the indexing axis.

A program command for index table indexing specifies the positioning

angle, using the number that follows B. It must be specified within a

single block. The program command can be either absolute or

incremental. The number that follows B must be an integer multiple of

a value specified in the relevant parameter.

- Table clamping and unclamping

Once an index axis command is issued, the table is unclamped by

transferring the relevant information between the CNC and PMC using

the B-axis unclamp signal (BUCLP) and the B-axis unclamp

completion signal (*BEUCL), before the start of index axis movement.

After the table is unclamped, the CNC submits the B-axis to rapid

rotation.

After the B-axis stops at the specified position, the table is clamped by

transferring the relevant information between the CNC and PMC using

the B-axis clamp signal (BCLP) and B-axis clamp completion signal

(*BECLP).

Actual table clamping is done by mechanically fastening the B-axis

using a clutch or shot pin on the PMC side.
