5.5 PMC AXIS CONTROL CONSTANT FEEDRATE COMMAND

ACCELERATION/DECELERATION FUNCTION

When a constant feedrate is specified with the PMC axis control function,

linear acceleration/deceleration can be applied to the specified feedrate

at the start and end of movement.

As a result, smooth start and stop is possible. Moreover, when the

feedrate changes during movement, acceleration/deceleration is applied

automatically, so that the feedrate changes smoothly.

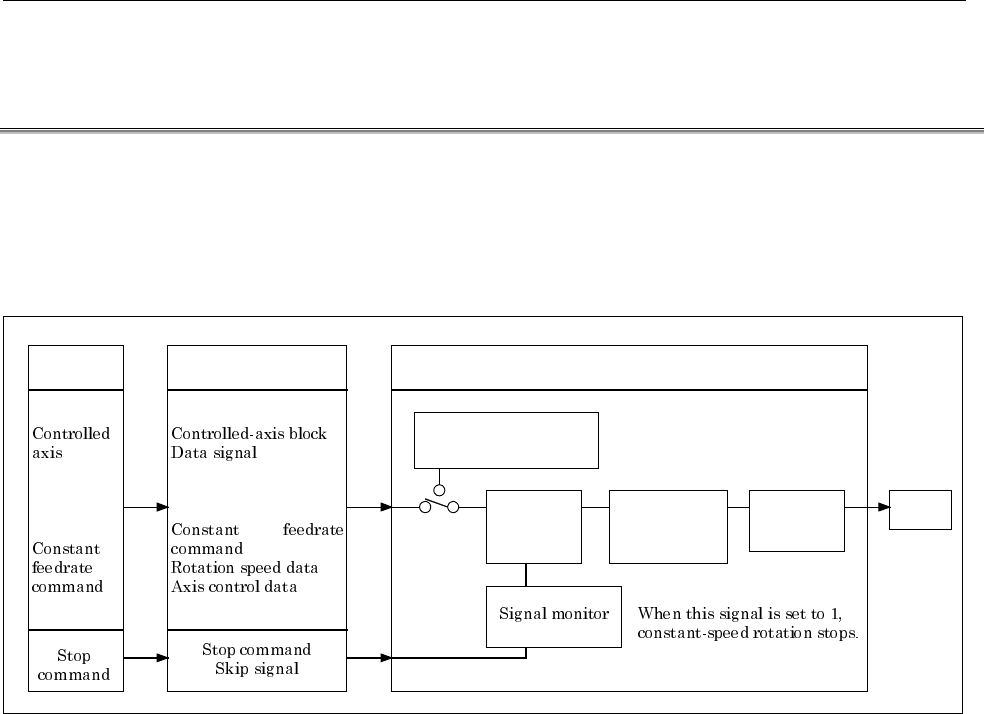

Fig. 5.5 When a Constant-Feedrate Command is Specified

PMC

Motor

CNCBMI

Servo control

Acceleration/dece

leration control

Constant

feedrate

control

Axis management (rotation

axis)
