FANUC Series 15i/16i/18i/21i
Remote Diagnostic Function
Host Software (for Windows)
A
-63555EN
Drawing No.
Title
Page
3 1999.7.05 Y.Wakinotani 15i is added T.Ohtsuki
2 1999.3.09 N.Hatanaka Overall revision T.Kurokawa
3.5 Line Connection / Disconnection
3.5.1 Line Connection (by Modem Card)
a) Connection to a new target
Select “Phone then “D

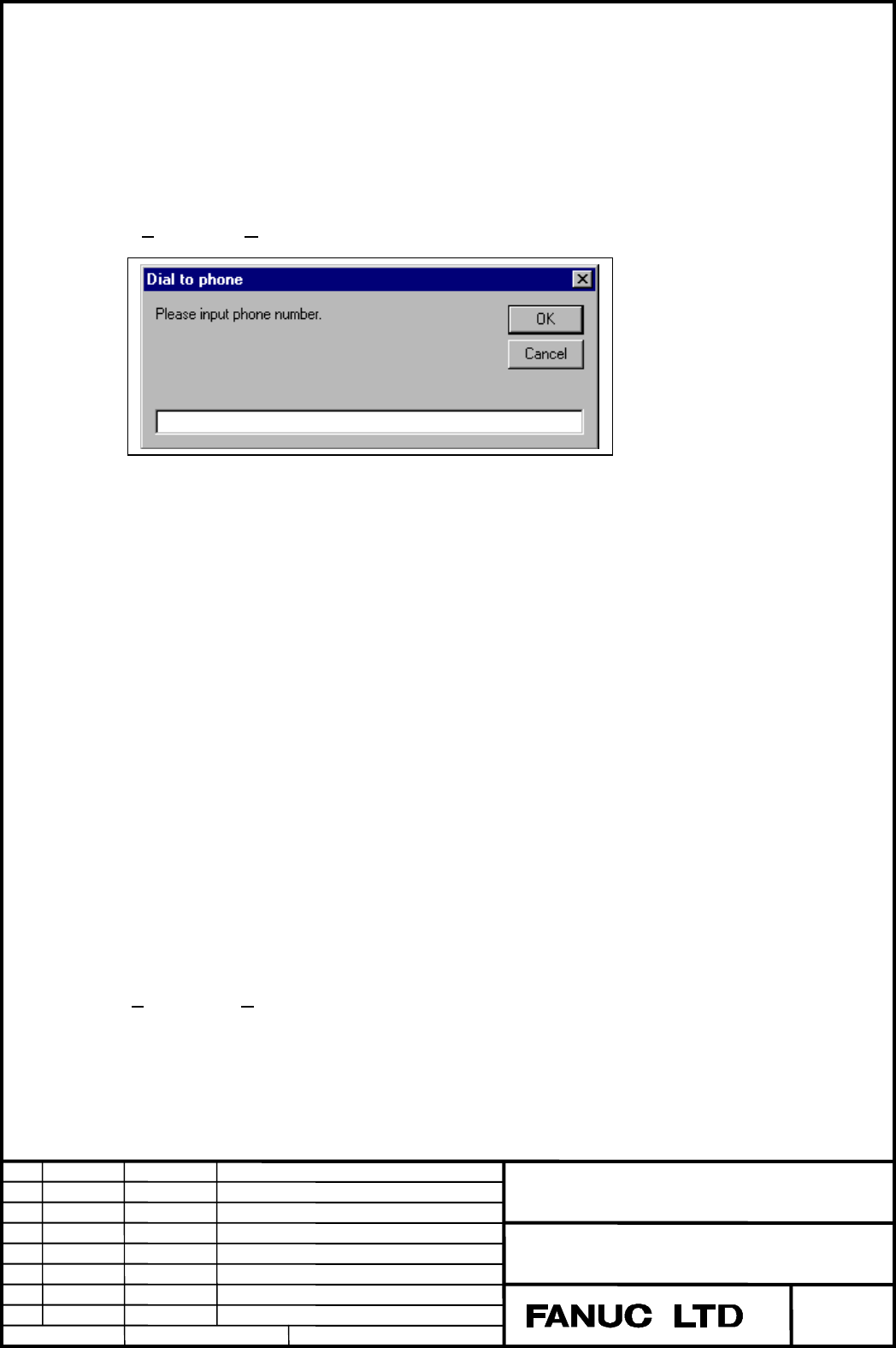

ial”. And the following window appears.
Input the telephone number and press [OK] button. And the connection to telephone
line starts.
b) Connection to registered(once-connected) target
Easy connection can be done to the targets registered in the phone list.
(Refer to: 4.4 Phone menu)
(Note) The type of telephone line must be specified as the item “Tone/Pulse” in the
“Setting comm” menu.
(Refer to: 4.9.1 Setting Comm)
3.5.2 Line Disconnection (by Modem Card)
Select “Phone” then “H
ang” to hang up the telephone line.
Previous page
Next page
