FANUC Series 15i/16i/18i/21i
Remote Diagnostic Function
Host Software (for Windows)
A
-63555EN
Drawing No.
Title
Page
3 1999.7.05 Y.Wakinotani 15i is added T.Ohtsuki
2 1999.3.09 N.Hatanaka Overall revision T.Kurokawa
3.6 Access Privileges
3.6.1 Access Privileges
If the access privileges are not got by using the password to access CNC which has
the password to protect information on the CNC machine tool, information on
CNC cannot be got.
3.6.2 Setting of the password on the CNC side
About the method of setting the password of CNC, refer to
" Appendix B. Description of CNC parameters".
16i/18i/21i
Parameter No.211-213, 221-223
15i
Parameter No.42-47
3.6.3 Registration of the password on host software side

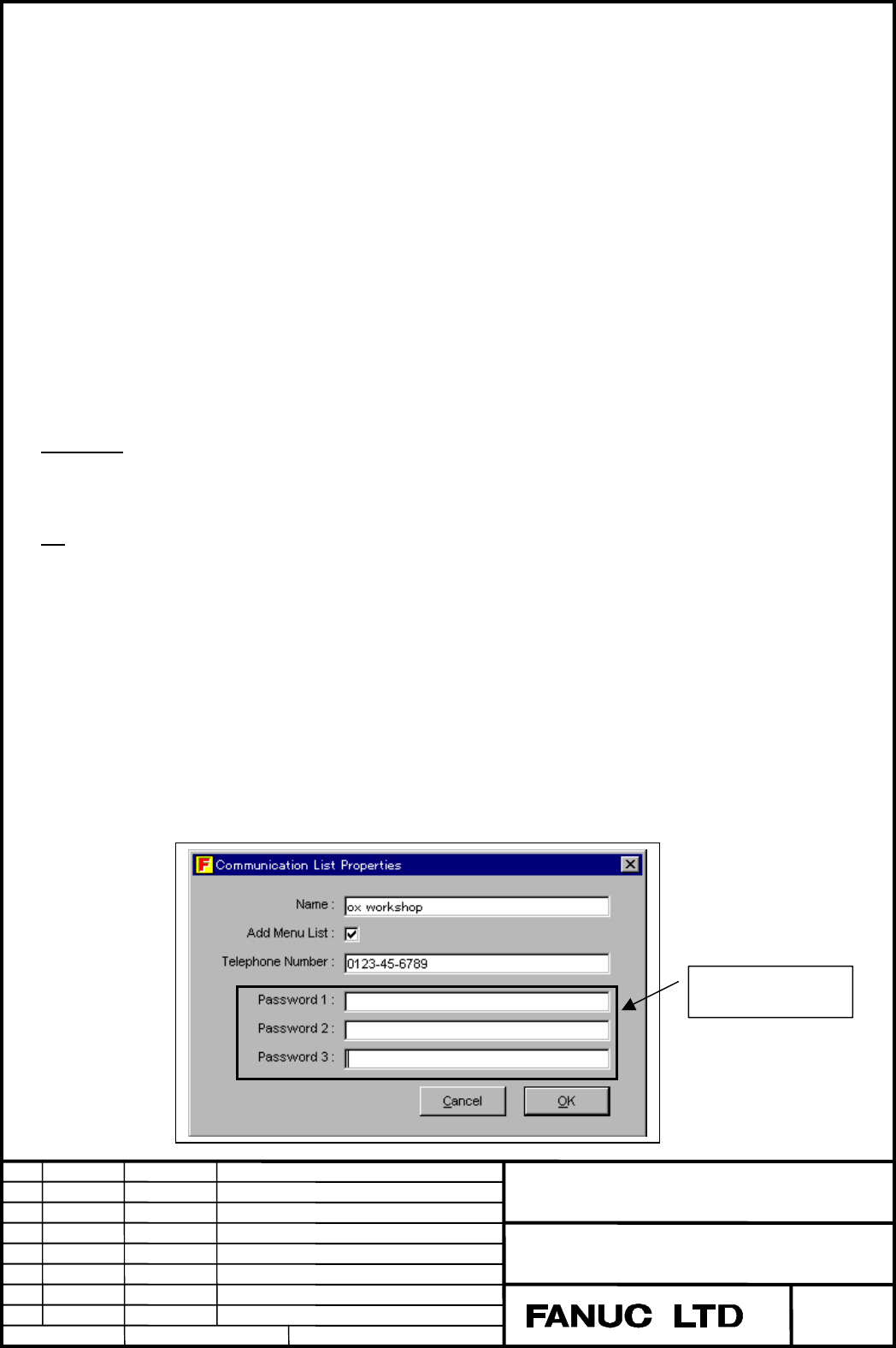

The password must be registered by using the following dialog box (Communication
List Properties) for setting destinations before the line is connected.
The password must be input by up to 8-digit number.
Please refer to "4.4.3 Phone list and the destination list" for the display operation of
the dialog and the line connection operation after the password is input.
Input Password
Previous page
Next page
