Easy connection can be done to the targets registered in “comm List”.
At first, register the targets to “Phone list” by “comm List” menu.

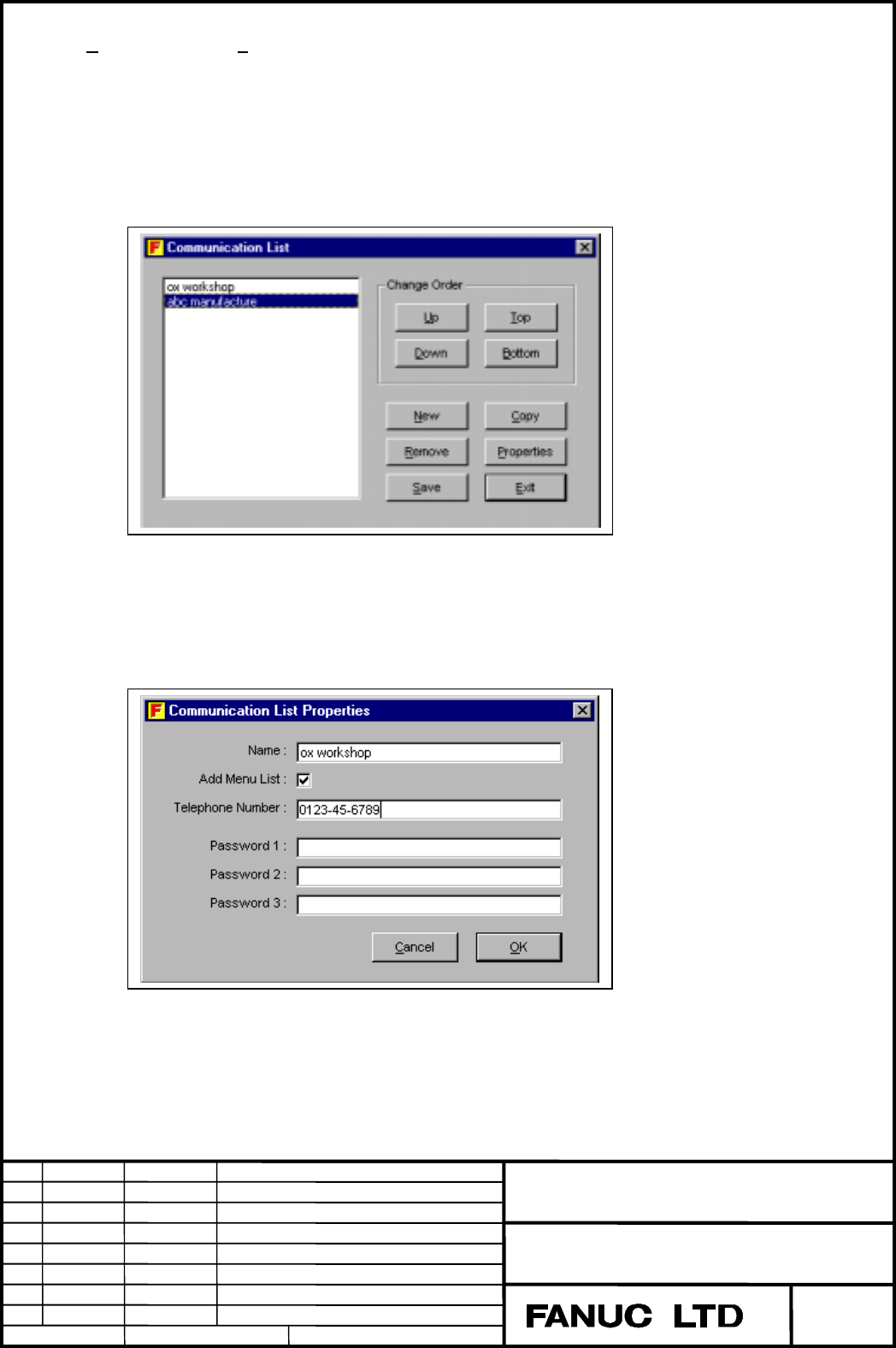

(1) Select “Phone list”. And the following dialog box appears.
(2) To register a new target, press “New”. To modify the setting of an already
registered target, select it and press “Properties” button. And the following
dialog box appears for the modification.
(3) Input setting data. Input the password sections if the password is setting to
the CNC. Then press “OK” button.
And the Communication list dialog box(See above (1)) appears again.
Press “Save” button to save the setting and “EXIT” to exit the box.
