FANUC Series 15i/16i/18i/21i
Remote Diagnostic Function
Host Software (for Windows)
A
-63555EN
Drawing No.
Title
Page
3 1999.7.05 Y.Wakinotani 15i is added T.Ohtsuki
2 1999.3.09 N.Hatanaka Overall revision T.Kurokawa
4.5.1 Using Screen Switching Function
By using the screen menu, soft-keys and/or PAGE UP/DOWN keys on PC screen, connected
CNC screens can be switched. The screen on host PC side remains but the information
the switched CNC screen can be transferred to the PC by “GET SCREEN” button. The screens
on the PC change as if the CNC is operated directly.
(Note 1) Positions or PMC signal status cannot be displayed in real time due to the
limitation of communication speed.
(Note 2) Only characters can be displayed on host PC screen.
(Note 3) The attributes of character (like colors, reverse, blink) can not be displayed on host PC
screen.

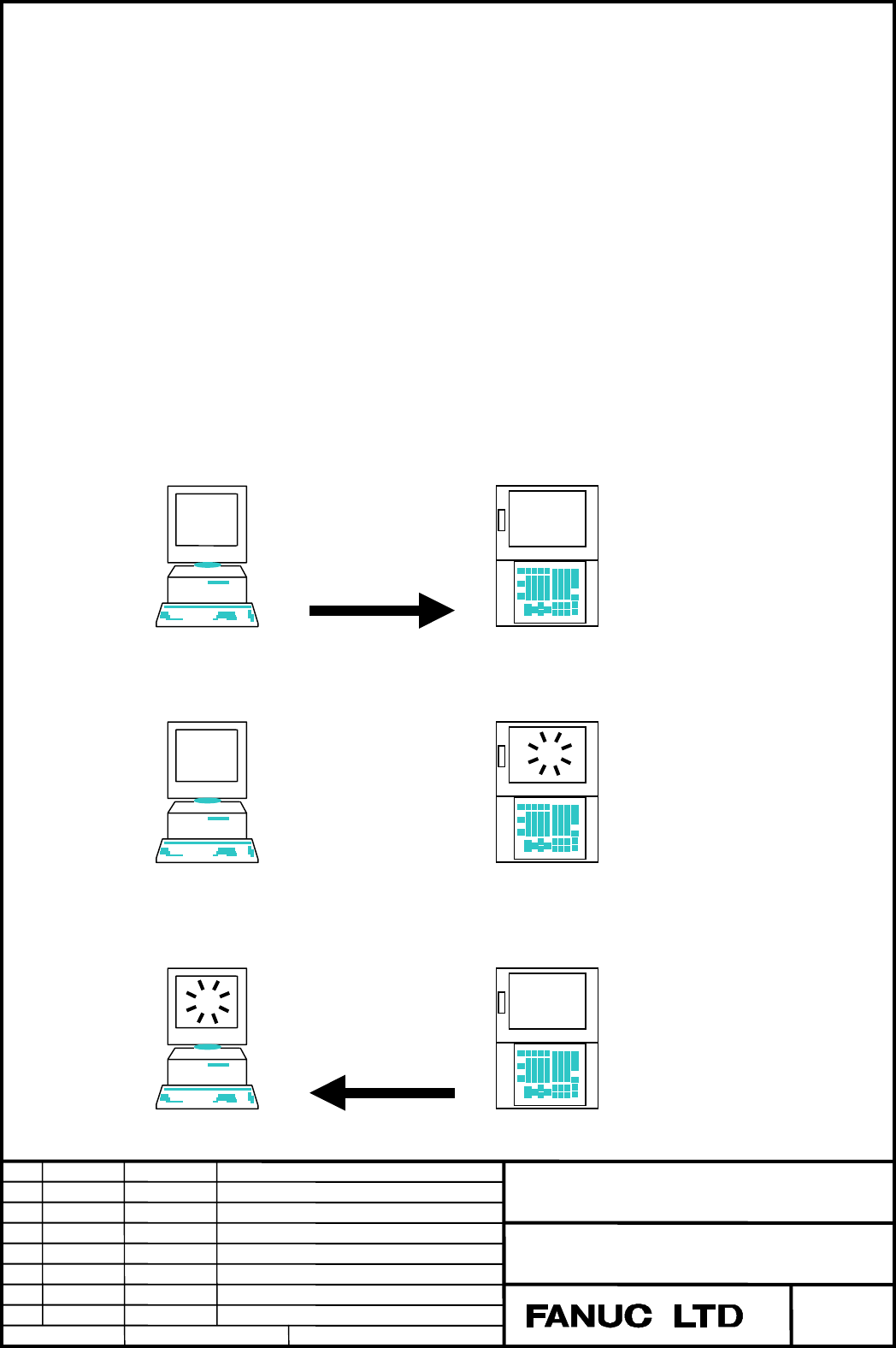

(1) Operate the screen menu, soft-keys and/or PAGE keys.
(2) CNC screens are switched.
(3) Information on the switched CNC screen can be transferred to the host PC by
“GET SCREEN” button.
Host PC
FS15i/16i/18i/21i
　Screen menu
　PAGE keys
　Soft-ke
y
s
GET SCREEN button
Previous page
Next page
